TSN-G5008 Series
8G-Port Full Gigabit Managed Industrial Ethernet Switch with TSN
Features & Benefits
- 8 Gigabit ports (6 RJ45 + 2 Combo SFP+)
- Time-Sensitive Networking (TSN) ready
- IEEE 802.1AS time sync, 802.1Qbv scheduling
- Hardware IEEE 1588v2 PTP
- IEC 62443 based security
- Compact design, user-friendly Web GUI
- -40 to 75 C wide temp
Certifications
TSN-G5008 is an 8-port Gigabit managed switch with TSN features (IEEE 802.1AS, 802.1Qbv). IEC 62443 security. Compact design. Ideal for Industry 4.0 networks.
- 6 GE + 2 Combo SFP+
- TSN: 802.1AS/802.1Qbv
- Hardware PTP 1588v2
- IEC 62443 security
- Compact design
- Web GUI management
- RSTP/Turbo Chain
- -40 to 75 C
Ethernet Interface
| 10/100/1000BaseT(X) | 6 x RJ45 |
|---|---|
| Combo Ports | 2 (10/100/1000 or 100/1000 SFP+) |
| TSN Features | IEEE 802.1AS (time sync), IEEE 802.1Qbv (time-aware shaping) |
| PTP | Hardware IEEE 1588v2 |
| Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.1Q, 802.1p, 802.1D-2004, 802.1w |
Software
| Redundancy | RSTP, STP, Turbo Chain, Link Aggregation |
|---|---|
| Security | IEC 62443, HTTPS/SSL, SSH, SNMPv3, ACL, Port Lock |
| Management | IPv4/IPv6, SNMPv1/v2c/v3, LLDP, DHCP, RMON, Syslog, Port Mirror |
| MIB | RFC1213, Ethernet-like MIB, IF MIB, LLDP MIB, Bridge MIB, Q-BRIDGE MIB |
Power
| Input | 12/24/48 VDC redundant dual |
|---|
Mechanical
| Housing/IP | Metal / IP40 |
|---|---|
| Mounting | DIN-rail |
Operating Environment
| Temperature | Standard: 0 to 60 C (32 to 140 F); Wide: -40 to 75 C (-40 to 167 F) |
|---|
Warranty
| Period | 5 years |
|---|

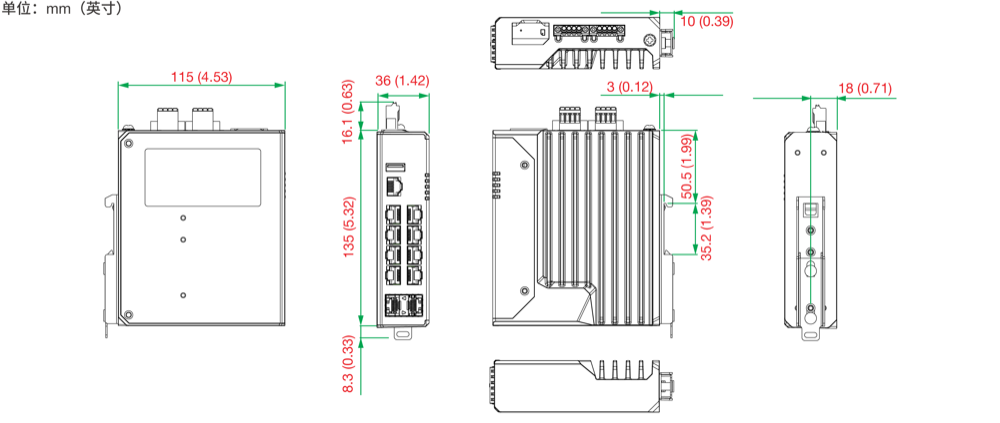

Dimensions
Software, Firmware & Drivers
| File Name | Type | Version | Operating System | Release Date |
|---|---|---|---|---|
| TSN-G5008-series-firmware-v4.1.rom | Firmware | v4.1 | โ | 2024-06-26 |
| TSN-G5008-series-mib-package-v4.1.zip | Software Package | v4.1 | โ | 2024-06-26 |
| TSN-G5008-series-eds-package-v1.0.zip | Software Package | v1.0 | โ | 2024-04-24 |
Support Documents
| File Name | Type | Version | Release Date |
|---|
Related Content
๐
Application Guide
Building future-proof industrial network infrastructure
๐ฅ
Video
Witness the evolution of industrial networking with Moxa
๐
Application Note
Enhance network performance for IP surveillance systems
๐
Solution Brief
Strengthen network resilience for industrial control systems
Ordering
| Model | GE RJ45 | Combo SFP+ | Temp |
|---|---|---|---|
| TSN-G5008 | 6 | 2 | 0 to 60 C |
| TSN-G5008-T | 6 | 2 | -40 to 75 C |
