SFP-1G Series
1-Port Gigabit Ethernet SFP Module
Features & Benefits
- 1-port 1000Base SFP module
- Digital Diagnostic Monitoring (DDM)
- Hot-swappable LC connector
- IEEE 802.3z compliant
- WDM (BiDi) models available
- -40 to 85 C (T models)
Certifications
SFP-1G Series 1-port Gigabit SFP modules for Moxa industrial switches. Wide range: SX to EZX, standard and WDM types.
- SX/LX/LHX/ZX/EZX types
- WDM BiDi 10-40 km
- DDM monitoring
- -40 to 85 C
- LC duplex/simplex
- Hot-swappable
- UL/TUV certified
- 3-year warranty
Ethernet Interface
| Ports | 1 |
|---|---|
| Connector | Dual LC or Single LC (WDM) |
| Standard | IEEE 802.3z |
Operating Environment
| Temperature | Standard: 0 to 60 C (32 to 140 F); T models: -40 to 85 C (-40 to 185 F) |
|---|
Warranty
| Period | 3 years |
|---|

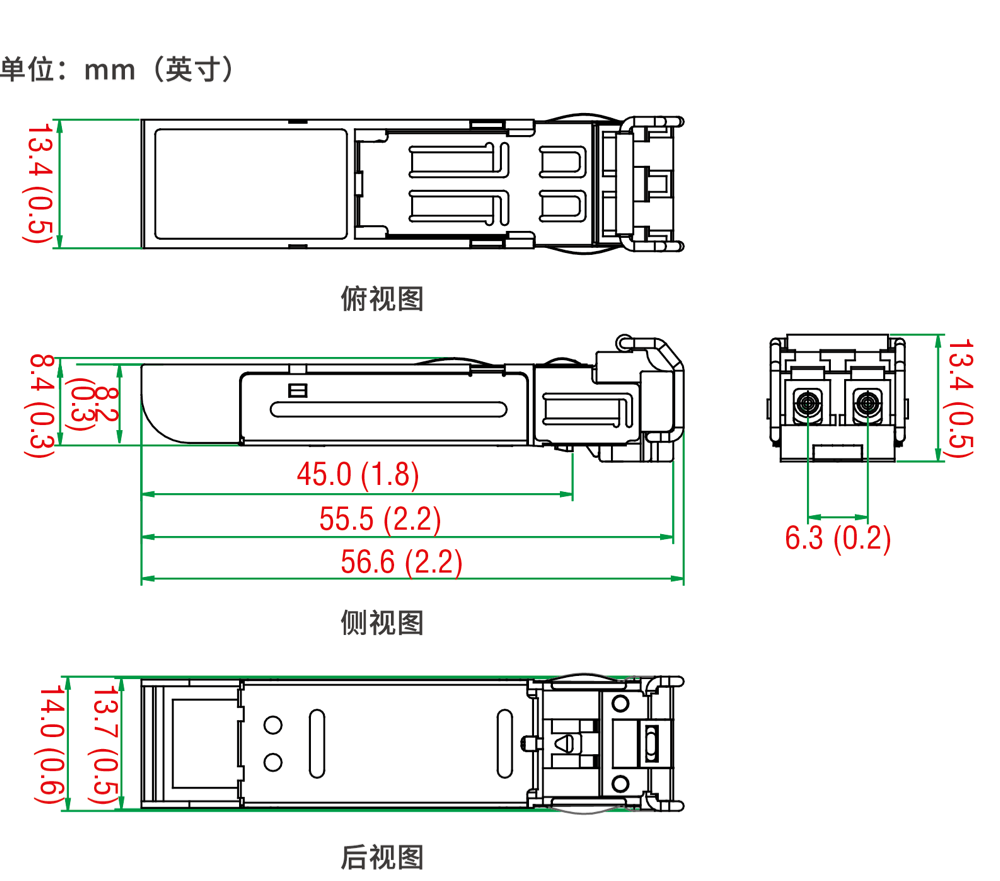

Dimensions
Software, Firmware & Drivers
| File Name | Type | Version | Operating System | Release Date |
|---|---|---|---|---|
| SFP-1G-series-firmware-v4.1.rom | Firmware | v4.1 | โ | 2024-06-26 |
| SFP-1G-series-mib-package-v4.1.zip | Software Package | v4.1 | โ | 2024-06-26 |
| SFP-1G-series-eds-package-v1.0.zip | Software Package | v1.0 | โ | 2024-04-24 |
Support Documents
| File Name | Type | Version | Release Date |
|---|
Related Content
๐
Application Guide
Building future-proof industrial network infrastructure
๐ฅ
Video
Witness the evolution of industrial networking with Moxa
๐
Application Note
Enhance network performance for IP surveillance systems
๐
Solution Brief
Strengthen network resilience for industrial control systems
Ordering
| Model | Type | Distance | Temp |
|---|---|---|---|
| SFP-1GSXLC | SX, LC | 0.5 km | 0 to 60 C |
| SFP-1GLXLC | LX, LC | 10 km | 0 to 60 C |
| SFP-1GLHXLC | LHX, LC | 40 km | 0 to 60 C |
| SFP-1GZXLC | ZX, LC | 80 km | 0 to 60 C |
| SFP-1GEZXLC | EZX, LC | 110 km | 0 to 60 C |
| SFP-1G10ALC | WDM BiDi 10km | 10 km | 0 to 60 C |
| SFP-1G20ALC | WDM BiDi 20km | 20 km | 0 to 60 C |
| SFP-1G40ALC | WDM BiDi 40km | 40 km | 0 to 60 C |
| SFP-1GLXLC-T | LX, LC, wide-temp | 10 km | -40 to 85 C |
| SFP-1GZXLC-T | ZX, LC, wide-temp | 80 km | -40 to 85 C |
| SFP-1G10ALC-T | WDM BiDi 10km T | 10 km | -40 to 85 C |
