SFP-1FE Series
1-Port Fast Ethernet SFP Module
Features & Benefits
- 1-port 100Base SFP module
- Digital Diagnostic Monitoring (DDM)
- Hot-swappable LC duplex connector
- IEEE 802.3u compliant
- Class 1 laser product
- -40 to 85 C (T models)
Certifications
SFP-1FE Series 1-port Fast Ethernet SFP modules are optional accessories for Moxa industrial Ethernet switches.
- 100Base single/multi mode
- DDM monitoring
- Hot-swappable LC
- -40 to 85 C
- Up to 80 km distance
- UL/TUV certified
- Class 1 laser
- 3-year warranty
Ethernet Interface
| Ports | 1 |
|---|---|
| Connector | Dual LC |
| Standard | IEEE 802.3u |
Operating Environment
| Temperature | -40 to 85 C (-40 to 185 F) |
|---|
Warranty
| Period | 3 years |
|---|

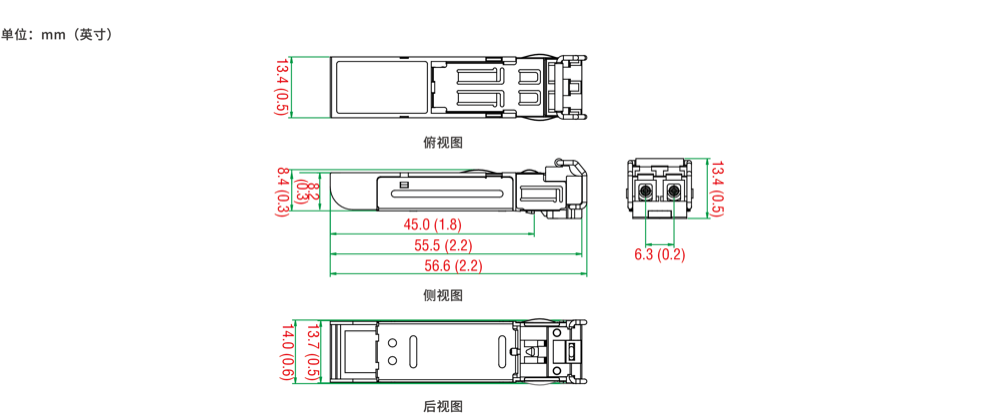

Dimensions
Software, Firmware & Drivers
| File Name | Type | Version | Operating System | Release Date |
|---|---|---|---|---|
| SFP-1FE-series-firmware-v4.1.rom | Firmware | v4.1 | โ | 2024-06-26 |
| SFP-1FE-series-mib-package-v4.1.zip | Software Package | v4.1 | โ | 2024-06-26 |
| SFP-1FE-series-eds-package-v1.0.zip | Software Package | v1.0 | โ | 2024-04-24 |
Support Documents
| File Name | Type | Version | Release Date |
|---|
Related Content
๐
Application Guide
Building future-proof industrial network infrastructure
๐ฅ
Video
Witness the evolution of industrial networking with Moxa
๐
Application Note
Enhance network performance for IP surveillance systems
๐
Solution Brief
Strengthen network resilience for industrial control systems
Ordering
| Model | Type | Distance | Temp |
|---|---|---|---|
| SFP-1FEMLC-T | Multi-mode | 4 km | -40 to 85 C |
| SFP-1FESLC-T | Single-mode | 40 km | -40 to 85 C |
| SFP-1FELLC-T | Single-mode | 80 km | -40 to 85 C |
