SFP-10G Series
1-Port 10-Gigabit Ethernet SFP+ Module
Features & Benefits
- 1-port 10GbE SFP+ module
- Digital Diagnostic Monitoring (DDM)
- IEEE 802.3ae compliant
- SFF-8432 SFP+ MSA compliant
- Hot-swappable LC duplex connector
- Class 1 laser (IEC 60825-1)
- RoHS compliant
Certifications
SFP-10G Series 1-port 10-Gigabit SFP+ modules for Moxa industrial switches. SR (multi-mode), LR, ER, and ZR (single-mode) types available.
- 10GbE SFP+
- SR/LR/ER/ZR types
- DDM monitoring
- Hot-swappable LC
- -40 to 85 C wide temp
- Low power (1-2.5W)
- RoHS
- 3-year warranty
Ethernet Interface
| Ports | 1 |
|---|---|
| Connector | Dual LC |
| Standard | IEEE 802.3ae, SFF-8432 SFP+ MSA |
Fiber Optics
| SR (Multi-mode) | OM1: 33m; OM2: 82m; OM3: 300m; OM4: 400m; 850nm |
|---|---|
| LR (Single-mode) | 10 km; 1310nm; TX: -8.2 to +0.5 dBm; Budget: 7.4 dB |
| ER (Single-mode) | 40 km; 1550nm; TX: -1 to +2 dBm; Budget: 15 dB |
| ZR (Single-mode) | 80 km; 1550nm; TX: 0 to +4 dBm; Budget: 23 dB |
Power
| Consumption | LR: 1W; SR: 1.1W; ER: 2.2W; ZR: 2.5W (max) |
|---|
Operating Environment
| Temperature | -40 to 85 C (-40 to 185 F) |
|---|
Warranty
| Period | 3 years |
|---|

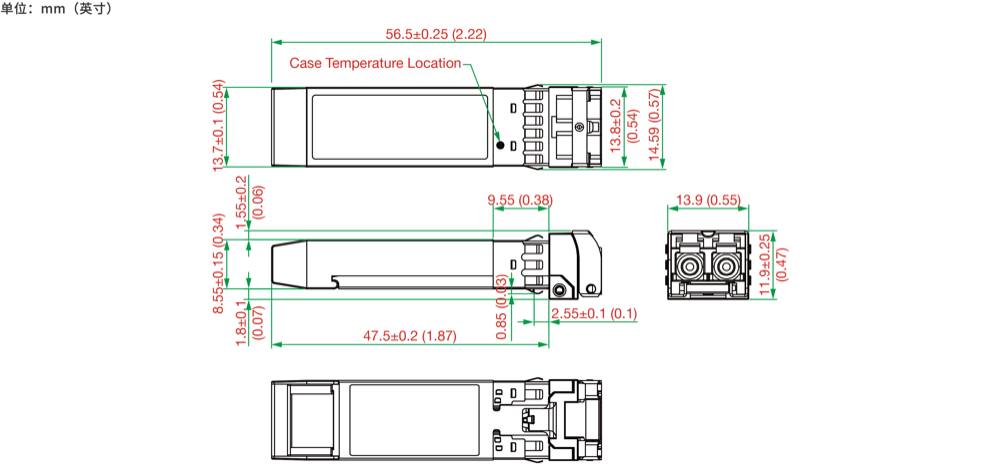

Dimensions
Software, Firmware & Drivers
| File Name | Type | Version | Operating System | Release Date |
|---|---|---|---|---|
| SFP-10G-series-firmware-v4.1.rom | Firmware | v4.1 | โ | 2024-06-26 |
| SFP-10G-series-mib-package-v4.1.zip | Software Package | v4.1 | โ | 2024-06-26 |
| SFP-10G-series-eds-package-v1.0.zip | Software Package | v1.0 | โ | 2024-04-24 |
Support Documents
| File Name | Type | Version | Release Date |
|---|
Related Content
๐
Application Guide
Building future-proof industrial network infrastructure
๐ฅ
Video
Witness the evolution of industrial networking with Moxa
๐
Application Note
Enhance network performance for IP surveillance systems
๐
Solution Brief
Strengthen network resilience for industrial control systems
Ordering
| Model | Type | Distance | Temp |
|---|---|---|---|
| SFP-10GSRLC-T | SR, multi-mode | 33-400m | -40 to 85 C |
| SFP-10GLRLC-T | LR, single-mode | 10 km | -40 to 85 C |
| SFP-10GERLC-T | ER, single-mode | 40 km | -40 to 85 C |
| SFP-10GZRLC-T | ZR, single-mode | 80 km | -40 to 85 C |
