SDS-G3006 Series
6-Port Full Gigabit Smart Industrial Ethernet Switch
Features & Benefits
- 6 Gigabit ports
- EtherNet/IP, PROFINET, Modbus TCP
- ABC-02-USB auto backup
- IEEE 802.1Q VLAN, port mirroring
- STP/RSTP/MRP redundancy
- Profile-based rotary switch
- -40 to 75 C wide temp
Certifications
SDS-G3006 is a 6-port full Gigabit smart switch. EtherNet/IP, PROFINET, Modbus TCP. Rotary DIP switch for profile-based setup.
- 6 Gigabit ports
- EtherNet/IP/PROFINET/Modbus
- ABC-02-USB
- Rotary profile switch
- VLAN/MRP
- Port mirroring
- Relay alarm
- -40 to 75 C
Ethernet Interface
| 10/100/1000BaseT(X) | 6 |
|---|---|
| Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1D-2004, 802.1w, 802.1Q, 802.1p |
Software
| Protocols | EtherNet/IP, PROFINET IO Device, Modbus TCP |
|---|---|
| Redundancy | STP, RSTP, MRP |
| Security | HTTPS/SSL, SNMPv3, Port Lock, Trust Access Control |
Switch Properties
| MAC Table | 8K |
|---|---|
| Max VLANs | 8 |
| Packet Buffer | 3 Mb |
Power
| Input | 12/24/48 VDC redundant dual |
|---|
Mechanical
| Housing/IP | Metal / IP40 |
|---|---|
| Dimensions | 20 x 135 x 111 mm |
| Weight | 438 g |
| Mounting | DIN-rail |
Operating Environment
| Temperature | Standard: -10 to 60 C (14 to 140 F); Wide: -40 to 75 C (-40 to 167 F) |
|---|
Warranty
| Period | 5 years |
|---|

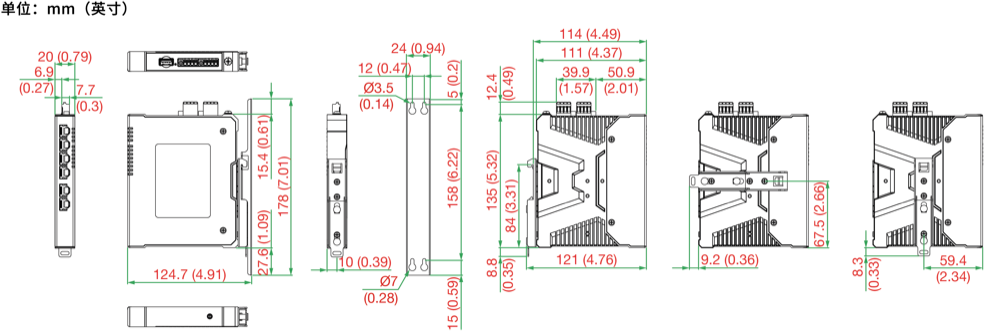

Dimensions
Software, Firmware & Drivers
| File Name | Type | Version | Operating System | Release Date |
|---|---|---|---|---|
| SDS-G3006-series-firmware-v4.1.rom | Firmware | v4.1 | โ | 2024-06-26 |
| SDS-G3006-series-mib-package-v4.1.zip | Software Package | v4.1 | โ | 2024-06-26 |
| SDS-G3006-series-eds-package-v1.0.zip | Software Package | v1.0 | โ | 2024-04-24 |
Support Documents
| File Name | Type | Version | Release Date |
|---|
Related Content
๐
Application Guide
Building future-proof industrial network infrastructure
๐ฅ
Video
Witness the evolution of industrial networking with Moxa
๐
Application Note
Enhance network performance for IP surveillance systems
๐
Solution Brief
Strengthen network resilience for industrial control systems
Ordering
| Model | GE Ports | Temp |
|---|---|---|
| SDS-G3006 | 6 | -10 to 60 C |
| SDS-G3006-T | 6 | -40 to 75 C |
