SDS-3006 Series
6-Port Smart Industrial Ethernet Switch
Features & Benefits
- 6 FE + optional 2 Gigabit Combo + 4 PoE
- EtherNet/IP, PROFINET, Modbus TCP
- ABC-02-USB auto backup
- IEEE 802.1Q VLAN, port mirroring
- Advanced PoE management (PoE models)
- -40 to 75 C wide temp
Certifications
SDS-3006 smart switch offers 6 FE ports with optional Gigabit uplinks and PoE. Supports EtherNet/IP, PROFINET, Modbus TCP. IP port binding, VLAN, ABC-02-USB backup.
- 6 FE + 2 GE Combo + 4 PoE
- EtherNet/IP/PROFINET/Modbus
- ABC-02-USB backup
- PoE management
- VLAN/port mirroring
- IP port binding
- Relay alarm
- -40 to 75 C
Ethernet Interface
| 10/100BaseT(X) | 6 (base); 4 (Combo/PoE models) |
|---|---|
| Combo Gigabit | 2 (10/100/1000 or SFP) on -2GTXSFP models |
| PoE Ports | 4 (PoE models only) |
Software
| Protocols | EtherNet/IP, PROFINET IO Device, Modbus TCP |
|---|---|
| Redundancy | STP, RSTP, MRP |
| Security | HTTPS/SSL, SNMPv3, Port Lock |
| Management | IPv4/IPv6, SNMPv1/v2c/v3, LLDP, RMON, Syslog |
Switch Properties
| MAC Table | 8K |
|---|---|
| Max VLANs | 8 |
| Packet Buffer | 3 Mb |
Power
| Input | 12/24/48 VDC redundant dual |
|---|---|
| Protection | Overload / Reverse polarity |
Mechanical
| Housing/IP | Metal / IP30 |
|---|---|
| Dimensions | 20 x 135 x 111 mm |
| Weight | 438 g (0.97 lb) |
| Mounting | DIN-rail |
Operating Environment
| Temperature | Standard: -10 to 60 C (14 to 140 F); Wide: -40 to 75 C (-40 to 167 F) |
|---|
Certifications
| Safety | UL 61010-2-201, EN 60950-1 |
|---|---|
| EMC | EN 55032/35, EN 61000-6-2/-6-4 |
Warranty
| Period | 5 years |
|---|

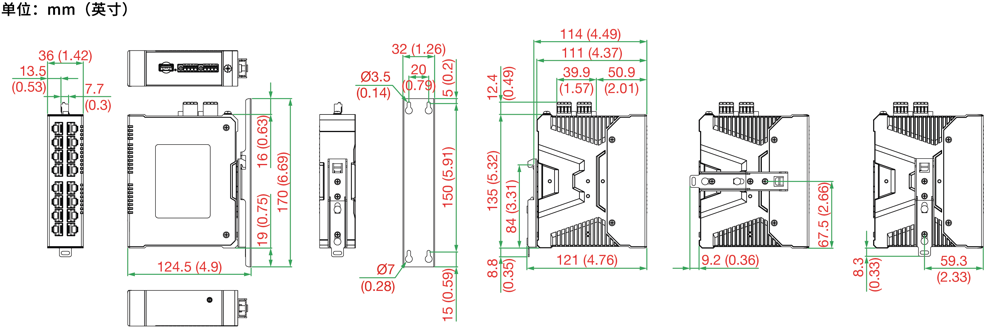

Dimensions
Software, Firmware & Drivers
| File Name | Type | Version | Operating System | Release Date |
|---|---|---|---|---|
| SDS-3006-series-firmware-v4.1.rom | Firmware | v4.1 | โ | 2024-06-26 |
| SDS-3006-series-mib-package-v4.1.zip | Software Package | v4.1 | โ | 2024-06-26 |
| SDS-3006-series-eds-package-v1.0.zip | Software Package | v1.0 | โ | 2024-04-24 |
Support Documents
| File Name | Type | Version | Release Date |
|---|
Related Content
๐
Application Guide
Building future-proof industrial network infrastructure
๐ฅ
Video
Witness the evolution of industrial networking with Moxa
๐
Application Note
Enhance network performance for IP surveillance systems
๐
Solution Brief
Strengthen network resilience for industrial control systems
Ordering
| Model | 10/100BaseT(X) | Combo GE | PoE+ | Temp |
|---|---|---|---|---|
| SDS-3006 | 6 | -- | -- | -10 to 60 C |
| SDS-3006-T | 6 | -- | -- | -40 to 75 C |
| SDS-3006-2GTXSFP | 4 | 2 | -- | -40 to 75 C |
| SDS-3006-4PoE-2GTXSFP | 4 | 2 | 4 | -40 to 75 C |
