IKS-G6824A Series
24-Port Full Gigabit L3 Managed Industrial Ethernet Switch
Features & Benefits
- 24 Gigabit ports + 24 SFP
- Layer 3 routing (cross-subnet)
- Fanless -40 to 75 C
- Turbo Ring/Turbo Chain < 20 ms
- 110/220 VAC isolated redundant power
- V-ON multicast recovery
- Q-in-Q VLAN tagging
- TACACS+/SNMPv3/ACL
Certifications
IKS-G6824A is a 24-port Gigabit L3 managed switch with routing. Fanless, isolated AC power. Turbo Ring, V-ON, Q-in-Q.
- 24 GE + 24 SFP
- Layer 3 routing
- Fanless -40 to 75 C
- Turbo Ring < 20 ms
- 110/220 VAC isolated
- TACACS+/ACL
- V-ON/Q-in-Q
- 19-inch rack
Ethernet Interface
| Gigabit | 24 |
|---|---|
| SFP | Up to 24 |
Layer 3
| Routing | Static routing, inter-VLAN |
|---|---|
| VLAN | 802.1Q, Q-in-Q |
Software
| Redundancy | Turbo Ring, Turbo Chain, RSTP, STP, MSTP, V-ON |
|---|---|
| Security | TACACS+, SNMPv3, 802.1X, ACL |
| Protocols | EtherNet/IP, PROFINET, Modbus TCP |
Power
| Input | 110/220 VAC isolated redundant dual |
|---|
Mechanical
| Housing | Metal, fanless |
|---|---|
| Mounting | 19-inch rack |
Operating Environment
| Temperature | -40 to 75 C (-40 to 167 F) (fanless) |
|---|
Warranty
| Period | 5 years |
|---|

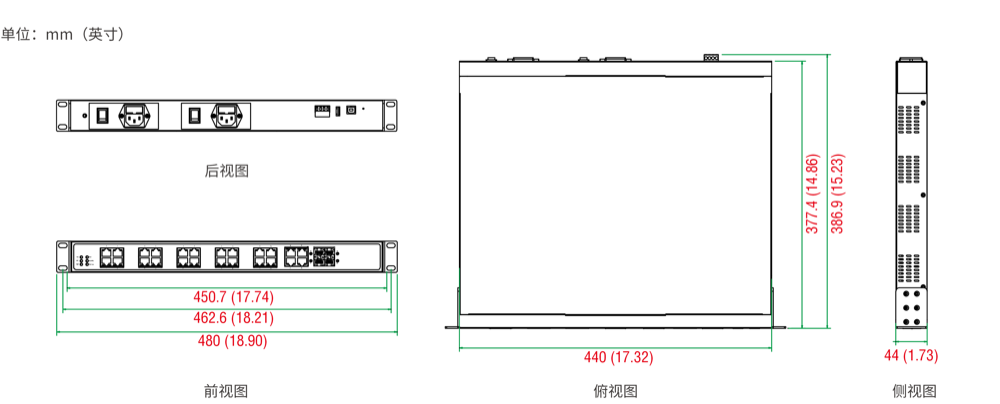

Dimensions
Software, Firmware & Drivers
| File Name | Type | Version | Operating System | Release Date |
|---|---|---|---|---|
| IKS-G6824A-series-firmware-v4.1.rom | Firmware | v4.1 | โ | 2024-06-26 |
| IKS-G6824A-series-mib-package-v4.1.zip | Software Package | v4.1 | โ | 2024-06-26 |
| IKS-G6824A-series-eds-package-v1.0.zip | Software Package | v1.0 | โ | 2024-04-24 |
Support Documents
| File Name | Type | Version | Release Date |
|---|
Related Content
๐
Application Guide
Building future-proof industrial network infrastructure
๐ฅ
Video
Witness the evolution of industrial networking with Moxa
๐
Application Note
Enhance network performance for IP surveillance systems
๐
Solution Brief
Strengthen network resilience for industrial control systems
Ordering
| Model | GE | SFP | PSU | Temp |
|---|---|---|---|---|
| IKS-G6824A | 24 | 24 | 110/220 VAC | -40 to 75 C |
