IKS-6728A Series

24+4G-Port Modular Managed PoE+ Industrial Ethernet Switch

Features & Benefits

24 FE + 4 Combo Gigabit (modular)
8 PoE+ (802.3af/at, up to 36W) (8PoE model)
PoE diagnostics, PD check, scheduling
1 kV LAN surge protection
Turbo Ring/Turbo Chain < 20 ms
RSTP/STP/MSTP
V-ON multicast recovery
-40 to 75 C (720W full load)

Certifications

IKS-6728A is a modular managed switch with 24 FE + 4 Combo Gigabit. Optional 8 PoE+ (36W). 1kV surge protection, Turbo Ring, V-ON.

24 FE + 4 Combo Gigabit
8 PoE+ (36W) (8PoE model)
PoE diagnostics
1 kV surge protection

Turbo Ring/V-ON
Modular design
TACACS+/SNMPv3
-40 to 75 C

Ethernet Interface

10/100BaseT(X)	Up to 24 (modular)
Combo Gigabit	4 (RJ45 or SFP)
PoE+	8 (802.3af/at, 36W each, 8PoE model)

PoE

Features	Diagnostics, PD fault check, scheduling, event alarm

Software

Redundancy	Turbo Ring, Turbo Chain, RSTP, STP, MSTP, V-ON
Security	TACACS+, SNMPv3, 802.1X, HTTPS, SSH
Protocols	EtherNet/IP, PROFINET, Modbus TCP

Protection

Surge	1 kV LAN surge protection

Power

Input	48 VDC (PoE) + 110/220 VAC (system)

Mechanical

Housing	Metal, modular

Operating Environment

Temperature	-40 to 75 C (-40 to 167 F) (full PoE load)

Warranty

Period	5 years

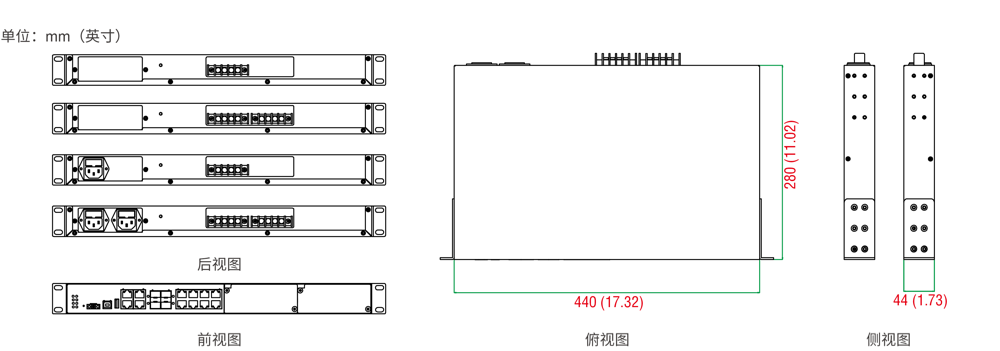

Dimensions

Software, Firmware & Drivers

File Name	Type	Version	Operating System	Release Date
IKS-6728A-series-firmware-v4.1.rom	Firmware	v4.1	—	2024-06-26
IKS-6728A-series-mib-package-v4.1.zip	Software Package	v4.1	—	2024-06-26
IKS-6728A-series-eds-package-v1.0.zip	Software Package	v1.0	—	2024-04-24

Support Documents

File Name	Type	Version	Release Date

Ordering

Model	FE	Combo GE	PoE+	Temp
IKS-6728A	24	4	--	-40 to 75 C
IKS-6728A-8PoE	24	4	8	-40 to 75 C
