IKS-6726A Series

24+2G-Port Modular Managed Industrial Ethernet Switch

Features & Benefits

24 FE + 2 Gigabit ports (modular)
Turbo Ring/Turbo Chain < 20 ms
RSTP/STP/MSTP
24/48 VDC or 110/220 VAC isolated redundant power
Modular design, flexible port combinations
-40 to 75 C operating
V-ON multicast recovery
TACACS+, SNMPv3, 802.1X

Certifications

IKS-6726A is a modular managed switch with 24 FE + 2 Gigabit ports. Redundant isolated power (DC or AC). Turbo Ring, V-ON. Ideal for traffic control and marine.

24 FE + 2 GE modular
Turbo Ring < 20 ms
Isolated redundant power
Modular design

TACACS+/SNMPv3
V-ON
CLI/Web
-40 to 75 C

Ethernet Interface

10/100BaseT(X)	Up to 24 (modular)
Gigabit	Up to 2

Software

Redundancy	Turbo Ring, Turbo Chain, RSTP, STP, MSTP, V-ON
Security	TACACS+, SNMPv3, 802.1X, HTTPS, SSH, Port Lock
Protocols	EtherNet/IP, PROFINET, Modbus TCP

Power

Input	24/48 VDC or 110/220 VDC/VAC isolated redundant

Mechanical

Housing	Metal, modular
Mounting	DIN-rail or rack

Operating Environment

Temperature	-40 to 75 C (-40 to 167 F)

Warranty

Period	5 years

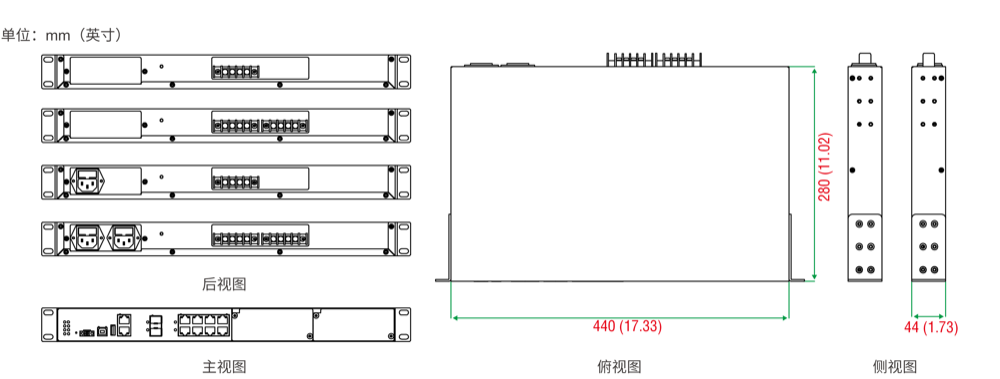

Dimensions

Software, Firmware & Drivers

File Name	Type	Version	Operating System	Release Date
IKS-6726A-series-firmware-v4.1.rom	Firmware	v4.1	—	2024-06-26
IKS-6726A-series-mib-package-v4.1.zip	Software Package	v4.1	—	2024-06-26
IKS-6726A-series-eds-package-v1.0.zip	Software Package	v1.0	—	2024-04-24

Support Documents

File Name	Type	Version	Release Date

Ordering

Model	FE	GE	PSU	Temp
IKS-6726A	24	2	24/48 VDC or AC	-40 to 75 C
