ICS-G7850A Series
48G+2 10Gb L3 Modular Managed Industrial Ethernet Switch
Features & Benefits
- Up to 48 Gigabit + 2 10GbE ports
- Up to 50 fiber connections
- Up to 48 PoE+ (with IM-G7000A-4PoE)
- Modular, hot-swappable modules
- Fanless -10 to 60 C
- Layer 3 routing + Q-in-Q
- Turbo Ring/Turbo Chain < 20 ms
- 110/220 VAC isolated redundant power
- V-ON multicast recovery
Certifications
ICS-G7850A is a modular L3 backbone switch with up to 48 GE + 2 10GbE. Hot-swappable modules, PoE+, fanless design. Turbo Ring, V-ON.
- Up to 48 GE + 2 10GbE
- Modular, hot-swappable
- Layer 3 routing + Q-in-Q
- Up to 48 PoE+
- Fanless design
- 110/220 VAC isolated
- Turbo Ring/V-ON
- CLI/Web
Ethernet Interface
| Gigabit | Up to 48 |
|---|---|
| 10GbE | 2 SFP+ |
| Total Fiber | Up to 50 |
| PoE+ | Up to 48 (with IM-G7000A-4PoE modules) |
Layer 3
| Routing | Static routing, inter-VLAN |
|---|---|
| VLAN | 802.1Q, Q-in-Q |
Software
| Redundancy | Turbo Ring, Turbo Chain, RSTP, STP, MSTP, V-ON |
|---|---|
| Security | TACACS+, SNMPv3, 802.1X, HTTPS, SSH, ACL |
| Protocols | EtherNet/IP, PROFINET, Modbus TCP |
Power
| Input | 110/220 VAC isolated redundant dual |
|---|
Mechanical
| Housing | Metal, fanless, modular |
|---|---|
| Mounting | 19-inch rack |
| Modules | Hot-swappable interface & PSU |
Operating Environment
| Temperature | -10 to 60 C (14 to 140 F) (fanless) |
|---|
Warranty
| Period | 5 years |
|---|

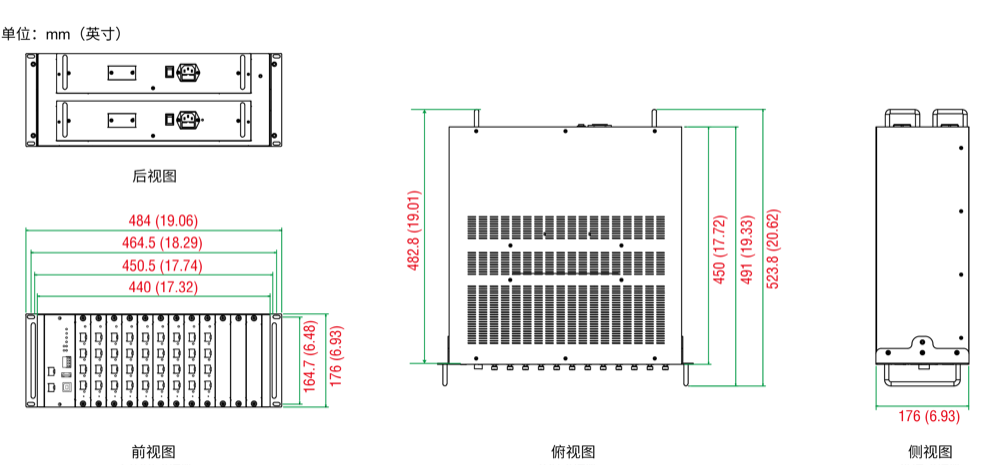

Dimensions
Software, Firmware & Drivers
| File Name | Type | Version | Operating System | Release Date |
|---|---|---|---|---|
| ICS-G7850A-series-firmware-v4.1.rom | Firmware | v4.1 | โ | 2024-06-26 |
| ICS-G7850A-series-mib-package-v4.1.zip | Software Package | v4.1 | โ | 2024-06-26 |
| ICS-G7850A-series-eds-package-v1.0.zip | Software Package | v1.0 | โ | 2024-04-24 |
Support Documents
| File Name | Type | Version | Release Date |
|---|
Related Content
๐
Application Guide
Building future-proof industrial network infrastructure
๐ฅ
Video
Witness the evolution of industrial networking with Moxa
๐
Application Note
Enhance network performance for IP surveillance systems
๐
Solution Brief
Strengthen network resilience for industrial control systems
Ordering
| Model | Max GE | 10GbE | Max Fiber | Temp |
|---|---|---|---|---|
| ICS-G7850A | 48 | 2 | 50 | -10 to 60 C |
