ICS-G7528A Series

24G+4 10Gb Port Layer 2 Managed Industrial Ethernet Switch

Features & Benefits

24 Gigabit + up to 4 10GbE ports
Up to 28 fiber connections
Fanless, -40 to 75 C
Turbo Ring/Turbo Chain < 20 ms
RSTP/STP/MSTP
110/220 VAC isolated redundant power
V-ON multicast recovery

Certifications

ICS-G7528A is a high-performance backbone switch with 24 GE + 4 10GbE ports. Fanless, isolated redundant AC power. Turbo Ring, V-ON. Ideal for large industrial networks.

24 GE + 4 10GbE
28 fiber connections
Fanless -40 to 75 C
Turbo Ring < 20 ms

110/220 VAC isolated
TACACS+/SNMPv3
V-ON
CLI/Web

Ethernet Interface

Gigabit	24
10GbE Ports	4 SFP+
Total Fiber	Up to 28

Software

Redundancy	Turbo Ring, Turbo Chain, RSTP, STP, MSTP, V-ON
Security	TACACS+, SNMPv3, 802.1X, HTTPS, SSH, ACL
Protocols	EtherNet/IP, PROFINET, Modbus TCP

I/O

Alarm	2 relay
DI	2 channels

Power

Input	110/220 VAC isolated redundant dual

Mechanical

Housing	Metal, fanless
Mounting	19-inch rack

Operating Environment

Temperature	-40 to 75 C (-40 to 167 F) (fanless)

Warranty

Period	5 years

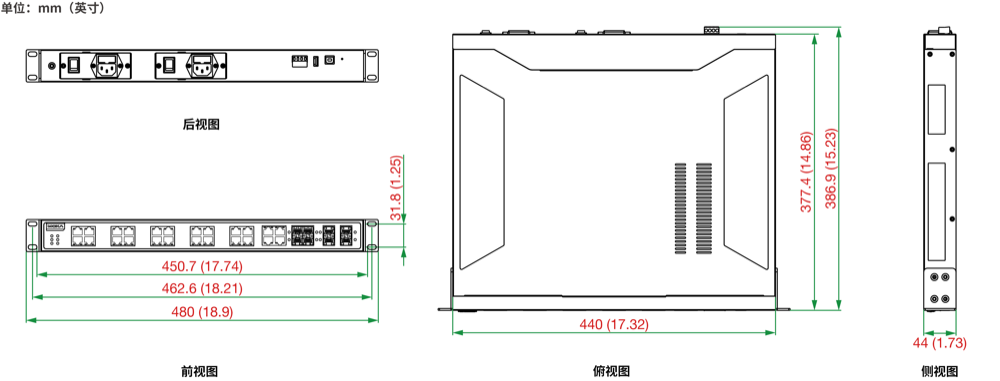

Dimensions

Software, Firmware & Drivers

File Name	Type	Version	Operating System	Release Date
ICS-G7528A-series-firmware-v4.1.rom	Firmware	v4.1	—	2024-06-26
ICS-G7528A-series-mib-package-v4.1.zip	Software Package	v4.1	—	2024-06-26
ICS-G7528A-series-eds-package-v1.0.zip	Software Package	v1.0	—	2024-04-24

Support Documents

File Name	Type	Version	Release Date

Ordering

Model	GE	10GbE	PSU	Temp
ICS-G7528A	24	4	110/220 VAC	-40 to 75 C
