ICS-G7526A Series
24G+2 10Gb Port Layer 2 Managed Industrial Ethernet Switch
Features & Benefits
- 24 Gigabit + up to 2 10GbE ports
- Up to 26 fiber connections (SFP slots)
- Fanless, -40 to 75 C
- Turbo Ring/Turbo Chain < 20 ms
- RSTP/STP/MSTP
- 110/220 VAC isolated redundant power
- V-ON multicast recovery
- MXstudio management
Certifications
ICS-G7526A is a high-performance backbone switch with 24 GE + 2 10GbE ports. Fanless design, isolated redundant AC power. Turbo Ring, V-ON. Ideal for process/traffic automation.
- 24 GE + 2 10GbE
- Up to 26 fiber connections
- Fanless -40 to 75 C
- Turbo Ring < 20 ms
- 110/220 VAC isolated
- TACACS+/SNMPv3
- V-ON
- CLI/Web
Ethernet Interface
| 10/100/1000BaseT(X) | Up to 24 |
|---|---|
| 10GbE Ports | Up to 2 SFP+ |
| Total Fiber | Up to 26 (SFP slots) |
| Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3ae, 802.3x, 802.3ad, 802.1Q, 802.1D-2004, 802.1w, 802.1s |
Software
| Redundancy | Turbo Ring, Turbo Chain, RSTP, STP, MSTP, V-ON |
|---|---|
| Security | TACACS+, SNMPv3, 802.1X, HTTPS, SSH, Port Lock |
| Protocols | EtherNet/IP, PROFINET, Modbus TCP |
| Management | CLI, Web, Telnet, console |
Switch Properties
| MAC Table | 16K |
|---|---|
| Max VLANs | 256 |
| Priority Queues | 8 |
I/O
| Alarm | 2 relay |
|---|---|
| DI | 2 channels |
Power
| Input | 110/220 VAC isolated redundant dual |
|---|
Mechanical
| Housing | Metal, fanless |
|---|---|
| Mounting | 19-inch rack-mount |
Operating Environment
| Temperature | -40 to 75 C (-40 to 167 F) (fanless) |
|---|
Warranty
| Period | 5 years |
|---|

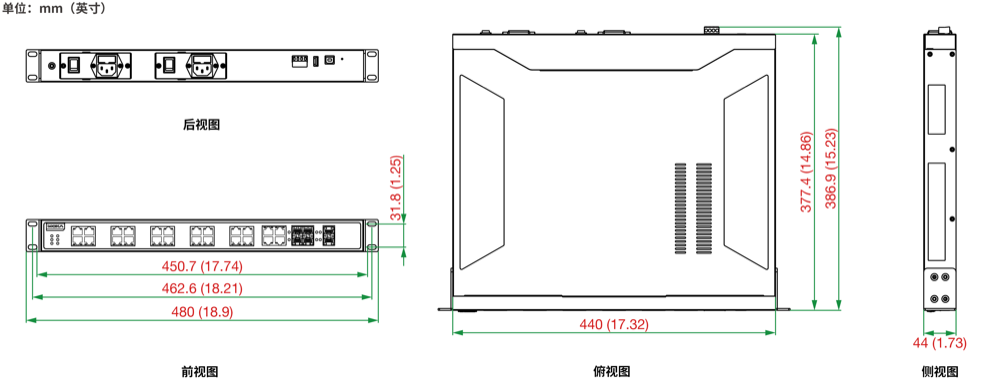

Dimensions
Software, Firmware & Drivers
| File Name | Type | Version | Operating System | Release Date |
|---|---|---|---|---|
| ICS-G7526A-series-firmware-v4.1.rom | Firmware | v4.1 | โ | 2024-06-26 |
| ICS-G7526A-series-mib-package-v4.1.zip | Software Package | v4.1 | โ | 2024-06-26 |
| ICS-G7526A-series-eds-package-v1.0.zip | Software Package | v1.0 | โ | 2024-04-24 |
Support Documents
| File Name | Type | Version | Release Date |
|---|
Related Content
๐
Application Guide
Building future-proof industrial network infrastructure
๐ฅ
Video
Witness the evolution of industrial networking with Moxa
๐
Application Note
Enhance network performance for IP surveillance systems
๐
Solution Brief
Strengthen network resilience for industrial control systems
Ordering
| Model | GE | 10GbE | PSU | Temp |
|---|---|---|---|---|
| ICS-G7526A | 24 | 2 | 110/220 VAC | -40 to 75 C |
