EDS-P510A Series

8+2G-Port Gigabit PoE+ Managed Switch

Features & Benefits

8 PoE+ ports (802.3af/at, up to 36W each)
2 Combo Gigabit ports (RJ45/SFP)
240W PoE budget @ -40 to 75 C
3 kV LAN surge protection
PoE diagnostics, PD check, PoE scheduling
Turbo Ring, Turbo Chain, RSTP
V-ON multicast recovery
MXstudio management

Certifications

EDS-P510A is an 8+2G PoE+ managed switch with 8 PoE ports (36W each, 240W total). 3kV surge protection for outdoor use. PoE diagnostics, Turbo Ring, V-ON.

8 PoE+ + 2 Combo Gigabit
36W/port, 240W total
3 kV surge protection
PoE diagnostics

Turbo Ring/V-ON
CLI/Web management
-40 to 75 C
5-year warranty

Ethernet Interface

10/100BaseT(X) PoE	8 x RJ45 (802.3af/at)
Combo Gigabit	2 (10/100/1000 or 100/1000 SFP)

PoE

Standard	802.3af/at PoE+
Max/Port	36W (high-power mode)
Total Budget	240W @ -40 to 75 C
Features	PoE diagnostics, PD check, scheduling, event alarm

Software

Redundancy	Turbo Ring, Turbo Chain, RSTP, STP, V-ON
Protocols	EtherNet/IP, Modbus TCP
Management	CLI, Web, Telnet, console

Protection

Surge	3 kV LAN surge protection

Power

Input	48 VDC redundant dual

Mechanical

Housing/IP	Metal / IP30

Operating Environment

Temperature	-40 to 75 C (-40 to 167 F) (full PoE load)

Warranty

Period	5 years

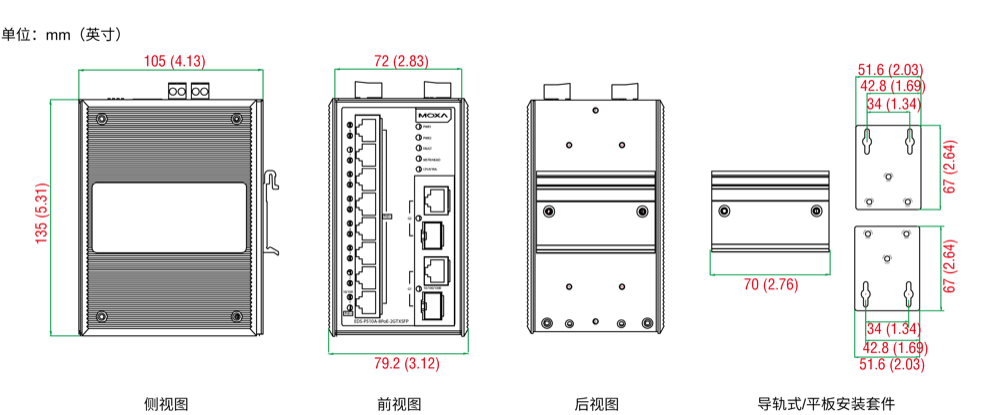

Dimensions

Software, Firmware & Drivers

File Name	Type	Version	Operating System	Release Date
EDS-P510A-series-firmware-v4.1.rom	Firmware	v4.1	—	2024-06-26
EDS-P510A-series-mib-package-v4.1.zip	Software Package	v4.1	—	2024-06-26
EDS-P510A-series-eds-package-v1.0.zip	Software Package	v1.0	—	2024-04-24

Support Documents

File Name	Type	Version	Release Date

Ordering

Model	FE PoE+	Combo Gigabit	Temp
EDS-P510A-8PoE	8	2	-40 to 75 C
