EDS-P206A Series
6-Port Unmanaged PoE+ Industrial Ethernet Switch
Features & Benefits
- 4 PoE+ ports (802.3af/at, 30W each)
- 2 FE + optional fiber (SC/ST, multi/single)
- Redundant 12/24/48 VDC dual power
- Smart PoE power detection & classification
- -40 to 75 C wide temp (T models)
Certifications
EDS-P206A-4PoE is a 6-port unmanaged PoE+ switch with 4 PoE ports (30W each). Optional fiber models available. Redundant dual power.
- 2 FE + 4 PoE + optional fiber
- PoE+ 30W per port
- Redundant dual power
- Smart PoE detection
- DIN-rail
- IP30 metal
- -40 to 75 C
- 5-year warranty
Ethernet Interface
| 10/100BaseT(X) | 2 (base); 1 (fiber models) |
|---|---|
| PoE Ports | 4 (802.3af/at, 30W max each) |
| 100BaseFX | M-SC/M-ST: 1 multi; S-SC: 1 single; MM-SC/MM-ST: 2 multi; SS-SC: 2 single |
PoE
| Standard | 802.3af/at PoE+ |
|---|---|
| Max per Port | 30W |
| Features | Smart power detection & classification |
Switch Properties
| MAC Table | 2K |
|---|
Power
| Input | 12/24/48 VDC redundant dual |
|---|---|
| PoE Budget | Up to 120W @ 48 VDC |
Mechanical
| Housing/IP | Metal / IP30 |
|---|---|
| Mounting | DIN-rail |
Operating Environment
| Temperature | Standard: 0 to 60 C (32 to 140 F); Wide: -40 to 75 C (-40 to 167 F) |
|---|
Warranty
| Period | 5 years |
|---|

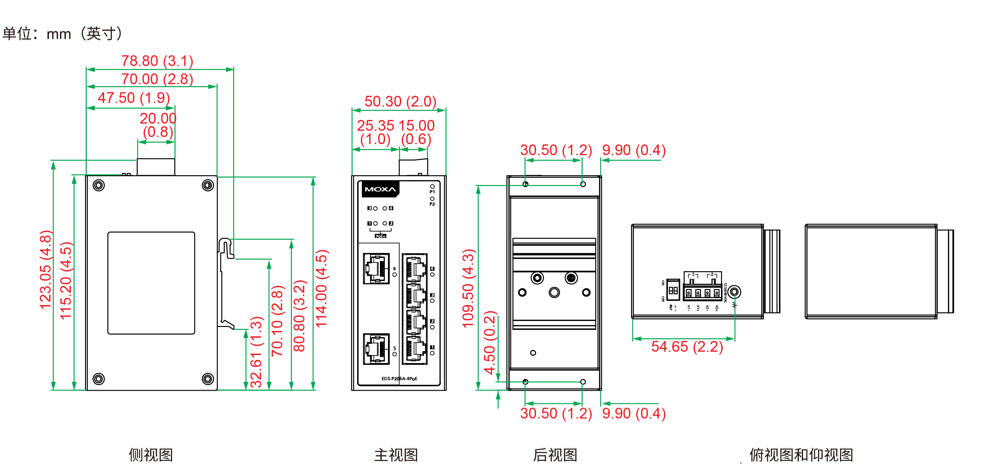

Dimensions
Software, Firmware & Drivers
| File Name | Type | Version | Operating System | Release Date |
|---|---|---|---|---|
| EDS-P206A-series-firmware-v4.1.rom | Firmware | v4.1 | โ | 2024-06-26 |
| EDS-P206A-series-mib-package-v4.1.zip | Software Package | v4.1 | โ | 2024-06-26 |
| EDS-P206A-series-eds-package-v1.0.zip | Software Package | v1.0 | โ | 2024-04-24 |
Support Documents
| File Name | Type | Version | Release Date |
|---|
Related Content
๐
Application Guide
Building future-proof industrial network infrastructure
๐ฅ
Video
Witness the evolution of industrial networking with Moxa
๐
Application Note
Enhance network performance for IP surveillance systems
๐
Solution Brief
Strengthen network resilience for industrial control systems
Ordering
| Model | 10/100BaseT(X) | PoE | Fiber | PSU | Temp |
|---|---|---|---|---|---|
| EDS-P206A-4PoE | 2 | 4 | -- | 12-48 VDC | 0 to 60 C |
| EDS-P206A-4PoE-T | 2 | 4 | -- | 12-48 VDC | -40 to 75 C |
| EDS-P206A-4PoE-M-SC | 1 | 4 | 1 multi SC | 12-48 VDC | -40 to 75 C |
| EDS-P206A-4PoE-M-ST | 1 | 4 | 1 multi ST | 12-48 VDC | -40 to 75 C |
| EDS-P206A-4PoE-S-SC | 1 | 4 | 1 single SC | 12-48 VDC | -40 to 75 C |
| EDS-P206A-4PoE-MM-SC | 1 | 4 | 2 multi SC | 12-48 VDC | -40 to 75 C |
| EDS-P206A-4PoE-SS-SC | 1 | 4 | 2 single SC | 12-48 VDC | -40 to 75 C |
