EDS-G516E Series
16-Port Full Gigabit Managed Industrial Ethernet Switch
Features & Benefits
- 16 GE ports (up to 12 RJ45 + 4 SFP)
- Turbo Ring/Turbo Chain < 50 ms
- RSTP/STP/MSTP
- IEC 62443, RADIUS, TACACS+, 802.1X
- EtherNet/IP, PROFINET, Modbus TCP
- V-ON multicast recovery
- ABC-02-USB backup
Certifications
EDS-G516E is a 16-port Gigabit managed switch with up to 4 SFP fiber ports. IEC 62443 security, Turbo Ring, V-ON. Ideal for backbone networks.
- 16 GE + up to 4 SFP
- Turbo Ring < 50 ms
- IEC 62443
- RADIUS/TACACS+/802.1X
- EtherNet/IP/PROFINET/Modbus
- V-ON
- ABC-02-USB
- CLI/Web
Ethernet Interface
| 10/100/1000BaseT(X) | Up to 12 x RJ45 |
|---|---|
| 100/1000BaseSFP | Up to 4 |
Software
| Redundancy | Turbo Ring, Turbo Chain, RSTP, STP, MSTP, V-ON |
|---|---|
| Security | IEC 62443, RADIUS, TACACS+, MAB, SNMPv3, 802.1X, MAC ACL, HTTPS, SSH, Sticky MAC |
| Protocols | EtherNet/IP, PROFINET, Modbus TCP |
Switch Properties
| MAC Table | 16K |
|---|
Power
| Input | LV: 12/24/48 VDC; HV: 110/220 VAC/VDC |
|---|
Mechanical
| Housing/IP | Metal / IP30 |
|---|
Operating Environment
| Temperature | Standard: 0 to 60 C (32 to 140 F); Wide: -40 to 75 C (-40 to 167 F) |
|---|
Warranty
| Period | 5 years |
|---|

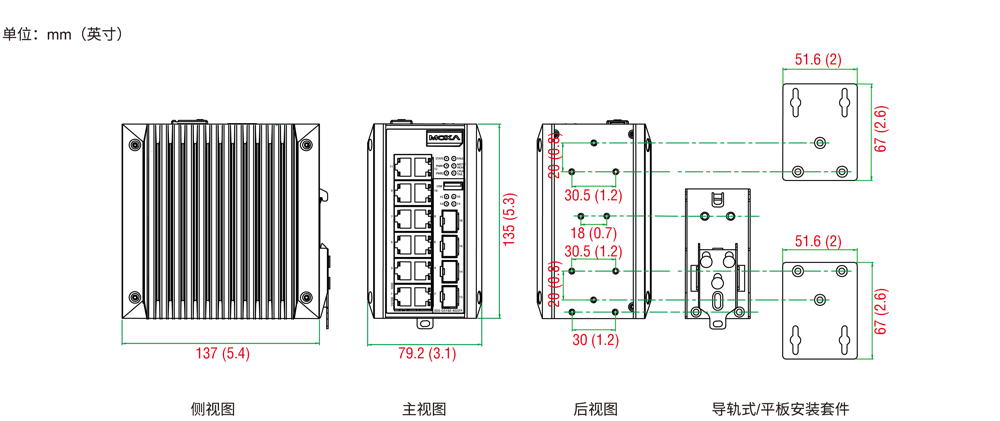

Dimensions
Software, Firmware & Drivers
| File Name | Type | Version | Operating System | Release Date |
|---|---|---|---|---|
| EDS-G516E-series-firmware-v4.1.rom | Firmware | v4.1 | โ | 2024-06-26 |
| EDS-G516E-series-mib-package-v4.1.zip | Software Package | v4.1 | โ | 2024-06-26 |
| EDS-G516E-series-eds-package-v1.0.zip | Software Package | v1.0 | โ | 2024-04-24 |
Support Documents
| File Name | Type | Version | Release Date |
|---|
Related Content
๐
Application Guide
Building future-proof industrial network infrastructure
๐ฅ
Video
Witness the evolution of industrial networking with Moxa
๐
Application Note
Enhance network performance for IP surveillance systems
๐
Solution Brief
Strengthen network resilience for industrial control systems
Ordering
| Model | GE RJ45 | GE SFP | Temp |
|---|---|---|---|
| EDS-G516E | 12 | 4 | 0 to 60 C |
| EDS-G516E-T | 12 | 4 | -40 to 75 C |
