EDS-G512E Series
12-Port Gigabit Managed Switch (8 PoE+ Optional)
Features & Benefits
- 12 Gigabit ports + up to 4 fiber
- 8 PoE+ ports (802.3af/at, 36W each)
- Advanced PoE management (scheduling, PD check)
- Turbo Ring/Turbo Chain < 50 ms
- IEC 62443, RADIUS, TACACS+, 802.1X
- EtherNet/IP, PROFINET, Modbus TCP
- V-ON multicast recovery
Certifications
EDS-G512E is a 12-port Gigabit managed switch with optional 8 PoE+ ports (36W each). IEC 62443 security, Turbo Ring, V-ON. Advanced PoE management.
- 12 GE + up to 4 fiber
- 8 PoE+ (36W each)
- Advanced PoE management
- Turbo Ring < 50 ms
- IEC 62443
- RADIUS/TACACS+/802.1X
- EtherNet/IP/PROFINET/Modbus
- V-ON
Ethernet Interface
| 10/100/1000BaseT(X) | 12 (8 PoE+ on PoE models) |
|---|---|
| SFP Slots | Up to 4 |
PoE
| Standard | 802.3af/at PoE+ |
|---|---|
| Max per Port | 36W |
| Management | Port settings, PD fault check, PoE scheduling |
Software
| Redundancy | Turbo Ring, Turbo Chain, RSTP, STP, MSTP, V-ON |
|---|---|
| Security | IEC 62443, RADIUS, TACACS+, SNMPv3, 802.1X, Sticky MAC |
| Protocols | EtherNet/IP, PROFINET, Modbus TCP |
| Management | CLI, Web, Telnet, console, ABC-02-USB |
Switch Properties
| MAC Table | 16K |
|---|
I/O
| Alarm | 1 relay |
|---|---|
| DI | 1 channel |
Power
| Input | LV: 12/24/48 VDC; HV: 110/220 VAC/VDC; PoE models: 48-57 VDC |
|---|
Mechanical
| Housing/IP | Metal / IP30 |
|---|
Operating Environment
| Temperature | Standard: 0 to 60 C (32 to 140 F); Wide: -40 to 75 C (-40 to 167 F) |
|---|
Warranty
| Period | 5 years |
|---|

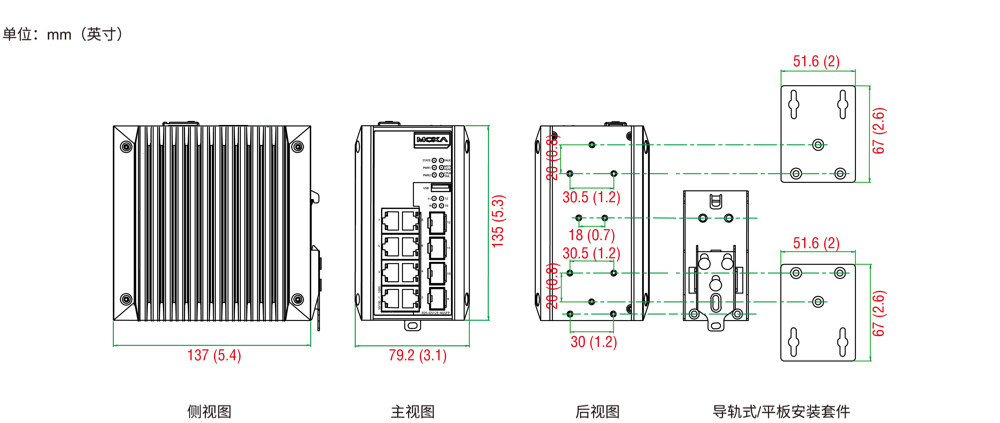

Dimensions
Software, Firmware & Drivers
| File Name | Type | Version | Operating System | Release Date |
|---|---|---|---|---|
| EDS-G512E-series-firmware-v4.1.rom | Firmware | v4.1 | โ | 2024-06-26 |
| EDS-G512E-series-mib-package-v4.1.zip | Software Package | v4.1 | โ | 2024-06-26 |
| EDS-G512E-series-eds-package-v1.0.zip | Software Package | v1.0 | โ | 2024-04-24 |
Support Documents
| File Name | Type | Version | Release Date |
|---|
Related Content
๐
Application Guide
Building future-proof industrial network infrastructure
๐ฅ
Video
Witness the evolution of industrial networking with Moxa
๐
Application Note
Enhance network performance for IP surveillance systems
๐
Solution Brief
Strengthen network resilience for industrial control systems
Ordering
| Model | GE | PoE+ | SFP | Temp |
|---|---|---|---|---|
| EDS-G512E | 12 | -- | 4 | 0 to 60 C |
| EDS-G512E-T | 12 | -- | 4 | -40 to 75 C |
| EDS-G512E-8PoE | 4+8 PoE | 8 | 4 | 0 to 60 C |
| EDS-G512E-8PoE-T | 4+8 PoE | 8 | 4 | -40 to 75 C |
