EDS-G509 Series
9-Port Full Gigabit Managed Industrial Ethernet Switch
Features & Benefits
- 4 GE RJ45 + 5 Combo Gigabit ports (RJ45/SFP)
- Enhanced surge protection (serial, LAN, power)
- Turbo Ring/Turbo Chain < 50 ms
- RSTP/STP/MSTP
- TACACS+, SNMPv3, 802.1X, HTTPS, SSH
- EtherNet/IP, Modbus TCP, PROFINET
- CLI/Web/ABC-01 management
Certifications
EDS-G509 features 4 GE + 5 Combo Gigabit ports with enhanced surge protection. Turbo Ring redundancy. TACACS+/SNMPv3 security. Ideal for video/process monitoring.
- 4 GE + 5 Combo (RJ45/SFP)
- Enhanced surge protection
- Turbo Ring < 50 ms
- TACACS+/SNMPv3/802.1X
- EtherNet/IP/Modbus/PROFINET
- Port mirroring
- CLI/Web/ABC-01
- -40 to 75 C
Ethernet Interface
| 10/100/1000BaseT(X) | 4 x RJ45 |
|---|---|
| Combo Gigabit | 5 (10/100/1000 or 100/1000 SFP) |
| Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.3ad, 802.1Q, 802.1D-2004, 802.1w, 802.1s, 802.1p, 802.1X |
Software
| Redundancy | Turbo Ring, Turbo Chain, RSTP, STP, MSTP |
|---|---|
| Security | TACACS+, SNMPv3, 802.1X, HTTPS, SSH, Port Lock |
| Protocols | EtherNet/IP, Modbus TCP, PROFINET |
| Management | CLI, Web, Telnet, console, ABC-01 |
Switch Properties
| MAC Table | 8K |
|---|---|
| Priority Queues | 4 |
Protection
| Surge | Enhanced surge protection for serial, LAN, power |
|---|
I/O
| Alarm | 1 relay |
|---|---|
| Digital Input | 1 channel |
Power
| Input | 24 VDC redundant dual |
|---|
Mechanical
| Housing/IP | Metal / IP30 |
|---|---|
| Mounting | DIN-rail |
Operating Environment
| Temperature | Standard: 0 to 60 C (32 to 140 F); Wide: -40 to 75 C (-40 to 167 F) |
|---|
Warranty
| Period | 5 years |
|---|

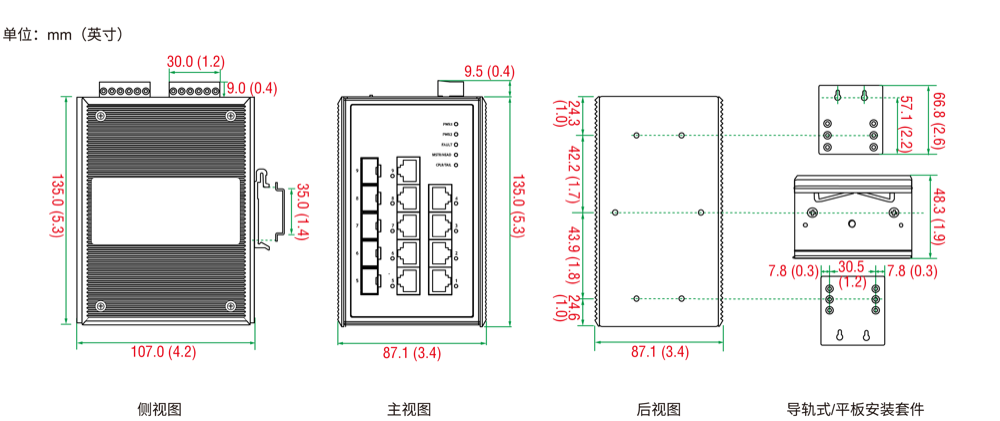

Dimensions
Software, Firmware & Drivers
| File Name | Type | Version | Operating System | Release Date |
|---|---|---|---|---|
| EDS-G509-series-firmware-v4.1.rom | Firmware | v4.1 | โ | 2024-06-26 |
| EDS-G509-series-mib-package-v4.1.zip | Software Package | v4.1 | โ | 2024-06-26 |
| EDS-G509-series-eds-package-v1.0.zip | Software Package | v1.0 | โ | 2024-04-24 |
Support Documents
| File Name | Type | Version | Release Date |
|---|
Related Content
๐
Application Guide
Building future-proof industrial network infrastructure
๐ฅ
Video
Witness the evolution of industrial networking with Moxa
๐
Application Note
Enhance network performance for IP surveillance systems
๐
Solution Brief
Strengthen network resilience for industrial control systems
Ordering
| Model | GE RJ45 | Combo GE/SFP | Temp |
|---|---|---|---|
| EDS-G509 | 4 | 5 | 0 to 60 C |
| EDS-G509-T | 4 | 5 | -40 to 75 C |
