EDS-G508E Series
8-Port Full Gigabit Managed Industrial Ethernet Switch
Features & Benefits
- 8 Gigabit Ethernet ports
- Turbo Ring/Turbo Chain < 50 ms (250 switches)
- RSTP/STP/MSTP
- IEC 62443 security, RADIUS, TACACS+, 802.1X
- EtherNet/IP, PROFINET, Modbus TCP
- V-ON multicast recovery
- CLI/Web management
Certifications
EDS-G508E is an 8-port Gigabit managed switch with advanced security (IEC 62443, RADIUS, TACACS+). Turbo Ring redundancy, V-ON. Ideal for video/process monitoring, ITS, DCS.
- 8 Gigabit ports
- Turbo Ring < 50 ms
- IEC 62443 security
- RADIUS/TACACS+/802.1X
- EtherNet/IP/PROFINET/Modbus
- V-ON
- Port mirroring
- CLI/Web
Ethernet Interface
| 10/100/1000BaseT(X) | 8 x RJ45 |
|---|---|
| Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.3ad, 802.1Q, 802.1D-2004, 802.1w, 802.1s, 802.1p, 802.1X |
Software
| Redundancy | Turbo Ring, Turbo Chain, RSTP, STP, MSTP, V-ON |
|---|---|
| Security | IEC 62443, RADIUS, TACACS+, MAB, SNMPv3, 802.1X, MAC ACL, HTTPS, SSH, Sticky MAC |
| Industrial Protocols | EtherNet/IP, PROFINET, Modbus TCP |
| Management | CLI, Web, Telnet, console |
Switch Properties
| MAC Table | 16K |
|---|---|
| Max VLANs | 256 |
| Priority Queues | 4 |
I/O
| Alarm | 1 relay |
|---|---|
| Digital Input | 1 channel |
Power
| Input | 12/24/48 VDC redundant dual |
|---|
Mechanical
| Housing/IP | Metal / IP30 |
|---|---|
| Mounting | DIN-rail |
Operating Environment
| Temperature | Standard: 0 to 60 C (32 to 140 F); Wide: -40 to 75 C (-40 to 167 F) |
|---|
Warranty
| Period | 5 years |
|---|

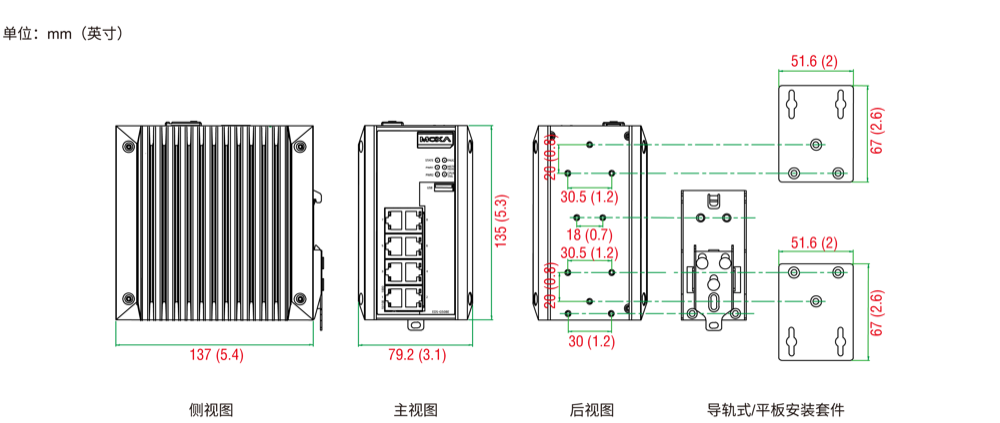

Dimensions
Software, Firmware & Drivers
| File Name | Type | Version | Operating System | Release Date |
|---|---|---|---|---|
| EDS-G508E-series-firmware-v4.1.rom | Firmware | v4.1 | โ | 2024-06-26 |
| EDS-G508E-series-mib-package-v4.1.zip | Software Package | v4.1 | โ | 2024-06-26 |
| EDS-G508E-series-eds-package-v1.0.zip | Software Package | v1.0 | โ | 2024-04-24 |
Support Documents
| File Name | Type | Version | Release Date |
|---|
Related Content
๐
Application Guide
Building future-proof industrial network infrastructure
๐ฅ
Video
Witness the evolution of industrial networking with Moxa
๐
Application Note
Enhance network performance for IP surveillance systems
๐
Solution Brief
Strengthen network resilience for industrial control systems
Ordering
| Model | GE Ports | Temp |
|---|---|---|
| EDS-G508E | 8 | 0 to 60 C |
| EDS-G508E-T | 8 | -40 to 75 C |
