EDS-G4014 Series
8G + 6 2.5GbE Port Full Gigabit Managed Ethernet Switch
Features & Benefits
- Developed according to IEC 62443-4-1, compliant with IEC 62443-4-2
- Supports Turbo Ring and Turbo Chain (recovery < 50 ms @ 250 switches), RSTP/STP
- Multiple power input options for flexible deployment
- Compact housing design for narrow spaces
- Up to 2.5 Gbps fiber SFP slots for increased bandwidth
- MXstudio for visualized industrial network management
Certifications
The EDS-G4014 Series features 8 Gigabit Ethernet ports and up to 6 1G/2.5G SFP slots, ideal for upgrading to full Gigabit backbone networks. Turbo Ring, Turbo Chain and RSTP/STP redundancy enhance reliability. IEC 62443-4-2 and IEC 62443-4-1 certified for industrial cybersecurity.
- IEC 62443-4-1/4-2 cybersecurity certified
- Turbo Ring/Turbo Chain < 50 ms
- 8 GE + 6 SFP (up to 2.5G)
- Multiple power: 12/24/48VDC or 110/220VAC/VDC
- Compact metal housing IP40
- -40 to 75 C wide temp
- Hardware IEEE 1588v2 PTP
- 5-year warranty
Ethernet Interface
| 10/100/1000BaseT(X) Ports | 8 (RJ45), auto MDI/MDI-X, auto-negotiation |
|---|---|
| 100/1000/2500BaseSFP Slots | 4 |
| 1000/2500BaseSFP Slots | 2 |
| Standards | IEEE 802.3/802.3u/802.3ab/802.3z/802.3bz/802.3x/802.3ad/802.1Q/802.1D-2004/802.1w/802.1p/802.1X |
Ethernet Software Features
| Industrial Protocols | EtherNet/IP, Modbus TCP, PROFINET IO Device |
|---|---|
| Management | IPv4/IPv6, SNMPv1/v2c/v3, LLDP, Port Mirror (SPAN, RSPAN), DHCP, RMON, SMTP, TFTP, SFTP, HTTP, HTTPS, Telnet, Syslog, Private MIB, Fiber Monitoring |
| Redundancy | STP, RSTP, Turbo Ring v2, Turbo Chain, Ring Coupling, Dual Homing, Link Aggregation, MRP, MSTP |
| Security | Broadcast Storm Protection, Rate Limit, Trust Access Control, Port Lock, MAC Sticky, HTTPS/SSL, SSH, RADIUS, TACACS+, ACL, DHCP Snooping |
| Time Service | SNTP, NTP Server/Client, NTP Auth, Hardware IEEE 1588v2 PTP (Default 2008, IEC 61850-9-3, IEEE C37.238-2017) |
| Filter | GMRP, GVRP, GARP, 802.1Q VLAN, IGMP Snooping v1/v2/v3, IGMP Querier |
| MIB | P-BRIDGE MIB, Q-BRIDGE MIB, IEEE8021-SPANNING-TREE-MIB, IEEE8021-PAE-MIB, IEEE8023-LAG-MIB, LLDP-EXT-DOT1-MIB, LLDP-EXT-DOT3-MIB, SNMPv2-MIB, RMON MIB Groups 1,2,3,9 |
Switch Properties
| MAC Table | 16K |
|---|---|
| Jumbo Frame | 9.216 KB |
| Max VLANs | 256 |
| IGMP Groups | 512 |
| Priority Queues | 4 |
| Packet Buffer | 1 MB |
| VLAN ID Range | VID 1 to 4094 |
Serial Interface
| Console Port | RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1) |
|---|
USB Interface
| USB Connector | USB Type A (reserved) |
|---|
Input/Output Interface
| Alarm Contact | 1, relay output: 1 A @ 24 VDC |
|---|---|
| Digital Input | 1 channel; +13 to +30 V state 1, -30 to +3 V state 0; max 8 mA |
| Button | Reset button |
DIP Switch Configuration
| DIP Switches | Turbo Ring, Master, Coupler, Reserved |
|---|
LED Indicators
| LEDs | PWR1, PWR2, STATE, FAULT, MSTR/HEAD, CPLR/TAIL, SYNC |
|---|
Power Parameters
| Connector | 2 removable 4-pin terminal blocks |
|---|---|
| Input Voltage | LV models: 12/24/48 VDC redundant dual; HV models: 110/220 VDC/VAC single |
| Operating Voltage | LV: 9.6 to 60 VDC; HV: 88 to 300 VDC, 85 to 264 VAC |
| Input Current | LV: 1.50-0.40 A (12-48 VDC); HV: 0.30-0.20 A (110-220 VAC) |
| Power Consumption | LV: 14.91 W; HV: 17.32 W (max) |
| Protection | Overload current / Reverse polarity |
Mechanical
| Housing | Metal |
|---|---|
| IP Rating | IP40 |
| Weight | 846 g (1.87 lb) |
| Installation | DIN-rail, wall mounting (optional kit) |
Operating Environment
| Temperature | Standard: -10 to 60 C (14 to 140 F); Wide: -40 to 75 C (-40 to 167 F) |
|---|---|
| Humidity | 5 to 95% (non-condensing) |
Certifications
| Cybersecurity | IEC 62443-4-1, IEC 62443-4-2 |
|---|---|
| Safety | UL 61010-2-201, EN 62368-1 (LVD) |
| EMC | EN 55032/35, EN 61000-6-2/-6-4 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD (Contact: 8 kV; Air: 15 kV); IEC 61000-4-3 RS (20 V/m); IEC 61000-4-4 EFT (Power: 4 kV; Signal: 4 kV); IEC 61000-4-5 Surge (Power: 4 kV; Signal: 4 kV); IEC 61000-4-6 CS (10 V); IEC 61000-4-8 PFMF |
| Marine | LV models: DNV, ABS, NK, LR |
| Railway | EN 50121-4 |
| Traffic Control | NEMA TS2 |
| Substation | IEC 61850-3, IEEE 1613 Class 1 |
MTBF
| LV Models | 994,797 hours |
|---|---|
| HV Models | 487,613 hours |
Warranty
| Warranty Period | 5 years |
|---|

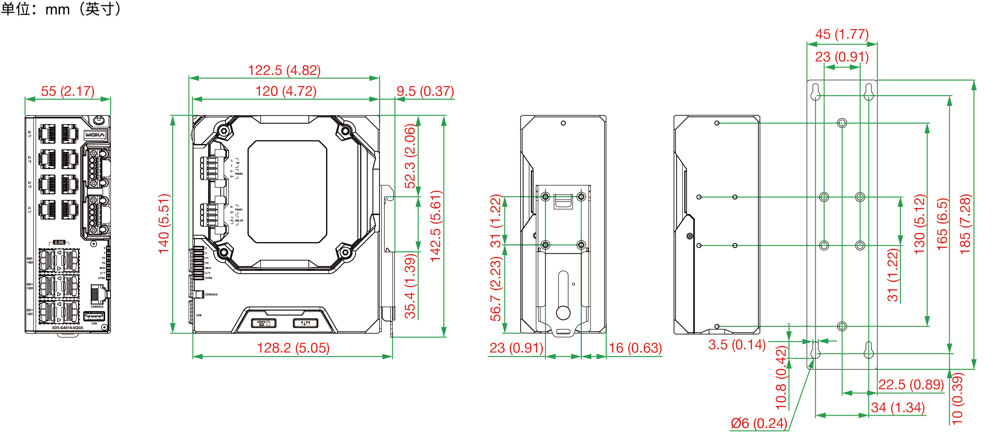

Dimensions
Software, Firmware & Drivers
| File Name | Type | Version | Operating System | Release Date |
|---|---|---|---|---|
| EDS-G4014-series-firmware-v4.1.rom | Firmware | v4.1 | โ | 2024-06-26 |
| EDS-G4014-series-mib-package-v4.1.zip | Software Package | v4.1 | โ | 2024-06-26 |
| EDS-G4014-series-eds-package-v1.0.zip | Software Package | v1.0 | โ | 2024-04-24 |
Support Documents
| File Name | Type | Version | Release Date |
|---|
Related Content
๐
Application Guide
Building future-proof industrial network infrastructure
๐ฅ
Video
Witness the evolution of industrial networking with Moxa
๐
Application Note
Enhance network performance for IP surveillance systems
๐
Solution Brief
Strengthen network resilience for industrial control systems
Ordering
| Model | 10/100/1000BaseT(X) RJ45 | 100/1000/2500BaseSFP | 1000/2500BaseSFP | Working Voltage | PSU | Temp |
|---|---|---|---|---|---|---|
| EDS-G4014-6QGS-LV | 8 | 4 | 2 | 9.6 to 60 VDC | PWR-100-LV | -10 to 60 C |
| EDS-G4014-6QGS-LV-T | 8 | 4 | 2 | 9.6 to 60 VDC | PWR-100-LV | -40 to 75 C |
| EDS-G4014-6QGS-HV | 8 | 4 | 2 | 88-300 VDC, 85-264 VAC | PWR-105-HV-I | -10 to 60 C |
| EDS-G4014-6QGS-HV-T | 8 | 4 | 2 | 88-300 VDC, 85-264 VAC | PWR-105-HV-I | -40 to 75 C |
