EDS-G308 Series
8-Port Full Gigabit Unmanaged Industrial Ethernet Switch
Features & Benefits
- 8 Gigabit ports (up to 6 + 2 Combo SFP+)
- Relay alarm for power/port failure
- Redundant 12/24/48 VDC dual power
- 4-pin DIP: BSP/Jumbo Frame/802.3az/Port Alarm
- 9.6 KB jumbo frame support
- -40 to 75 C wide temp (T models)
Certifications
EDS-G308 is an 8-port full Gigabit unmanaged switch with up to 2 combo SFP+ ports. Relay alarm, redundant power, DIP switch for BSP/jumbo/802.3az/alarm.
- 8 GE + up to 2 Combo SFP+
- Relay alarm
- Redundant dual power
- 9.6 KB jumbo frame
- 4-pin DIP switch
- Broadcast storm protection
- 802.3az energy saving
- -40 to 75 C
Ethernet Interface
| 10/100/1000BaseT(X) | 8 (base); 6 (2SFP models) |
|---|---|
| Combo Ports (SFP+) | 2 (10/100/1000 or 100/1000 SFP+) |
| Standards | IEEE 802.3, 802.3ab, 802.3u, 802.3x, 802.3z, 802.3az |
Switch Properties
| MAC Table | 8K |
|---|---|
| Jumbo Frame | 9.6 KB |
DIP Switch
| Functions | BSP, Jumbo Frame, 802.3az, Port Alarm |
|---|
I/O
| Alarm | 1 relay, 1 A @ 24 VDC |
|---|
Power
| Input | 12/24/48 VDC redundant dual |
|---|
Mechanical
| Housing/IP | Metal / IP30 |
|---|---|
| Mounting | DIN-rail |
Operating Environment
| Temperature | Standard: -10 to 60 C (14 to 140 F); Wide: -40 to 75 C (-40 to 167 F) |
|---|
Warranty
| Period | 5 years |
|---|

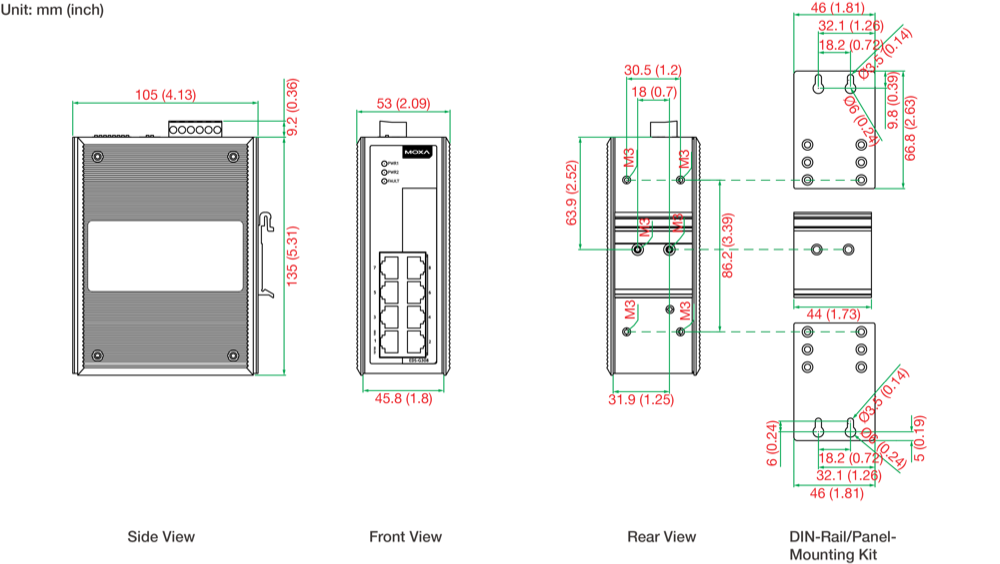

Dimensions
Software, Firmware & Drivers
| File Name | Type | Version | Operating System | Release Date |
|---|---|---|---|---|
| EDS-G308-series-firmware-v4.1.rom | Firmware | v4.1 | โ | 2024-06-26 |
| EDS-G308-series-mib-package-v4.1.zip | Software Package | v4.1 | โ | 2024-06-26 |
| EDS-G308-series-eds-package-v1.0.zip | Software Package | v1.0 | โ | 2024-04-24 |
Support Documents
| File Name | Type | Version | Release Date |
|---|
Related Content
๐
Application Guide
Building future-proof industrial network infrastructure
๐ฅ
Video
Witness the evolution of industrial networking with Moxa
๐
Application Note
Enhance network performance for IP surveillance systems
๐
Solution Brief
Strengthen network resilience for industrial control systems
Ordering
| Model | GE RJ45 | Combo SFP+ | Temp |
|---|---|---|---|
| EDS-G308 | 8 | -- | -10 to 60 C |
| EDS-G308-T | 8 | -- | -40 to 75 C |
| EDS-G308-2SFP | 6 | 2 | -10 to 60 C |
| EDS-G308-2SFP-T | 6 | 2 | -40 to 75 C |
