EDS-G205A-4PoE Series
5-Port Gigabit Unmanaged PoE+ Industrial Ethernet Switch
Features & Benefits
- 5 Gigabit ports with 4 PoE+ (802.3af/at)
- PoE up to 36W per port, total 144W @ 48VDC
- Redundant 12/24/48 VDC dual power
- 9.6 KB jumbo frame
- Smart PoE overcurrent/short circuit protection
- -40 to 75 C wide temp (T models)
Certifications
EDS-G205A-4PoE is a 5-port Gigabit unmanaged PoE+ switch with 4 PoE ports (36W each). Redundant power. Smart PoE protection. Optional 1 SFP port.
- 5 GE + 4 PoE+ (36W)
- 144W total PoE budget
- Redundant dual power
- 9.6 KB jumbo frame
- Smart PoE protection
- Optional SFP port
- IP30 metal
- -40 to 75 C
Ethernet Interface
| 10/100/1000BaseT(X) | 5 (4 PoE) |
|---|---|
| SFP Port | 1 (optional, 1GSFP models) |
| PoE Standard | 802.3af/at, up to 36W/port |
| PoE Pinout | V+,V+,V-,V- (pins 1,2,3,6, Mode A) |
Switch Properties
| MAC Table | 8K |
|---|---|
| Packet Buffer | 1 Mb |
| Jumbo Frame | 9.6 KB |
Power
| Input | 12/24/48 VDC redundant dual |
|---|---|
| PoE Budget | 62W @ 12VDC; 120W @ 24VDC; 144W @ 48VDC |
| Max per Port | 36W |
| Protection | Overcurrent / Short circuit / Reverse polarity |
Mechanical
| Housing/IP | Metal / IP30 |
|---|---|
| Dimensions | 29 x 135 x 105 mm |
| Mounting | DIN-rail |
Operating Environment
| Temperature | Standard: 0 to 60 C (32 to 140 F); Wide: -40 to 75 C (-40 to 167 F) |
|---|
Warranty
| Period | 5 years |
|---|

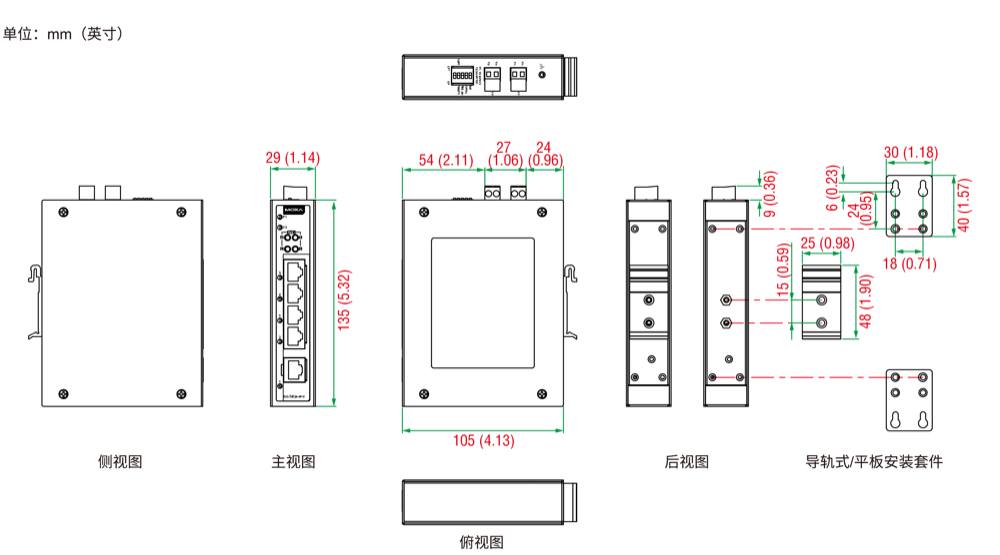

Dimensions
Software, Firmware & Drivers
| File Name | Type | Version | Operating System | Release Date |
|---|---|---|---|---|
| EDS-G205A-4PoE-series-firmware-v4.1.rom | Firmware | v4.1 | โ | 2024-06-26 |
| EDS-G205A-4PoE-series-mib-package-v4.1.zip | Software Package | v4.1 | โ | 2024-06-26 |
| EDS-G205A-4PoE-series-eds-package-v1.0.zip | Software Package | v1.0 | โ | 2024-04-24 |
Support Documents
| File Name | Type | Version | Release Date |
|---|
Related Content
๐
Application Guide
Building future-proof industrial network infrastructure
๐ฅ
Video
Witness the evolution of industrial networking with Moxa
๐
Application Note
Enhance network performance for IP surveillance systems
๐
Solution Brief
Strengthen network resilience for industrial control systems
Ordering
| Model | GE RJ45 | PoE | SFP | Temp |
|---|---|---|---|---|
| EDS-G205A-4PoE | 5 | 4 | -- | 0 to 60 C |
| EDS-G205A-4PoE-T | 5 | 4 | -- | -40 to 75 C |
| EDS-G205A-4PoE-1GSFP | 4 | 4 | 1 | 0 to 60 C |
| EDS-G205A-4PoE-1GSFP-T | 4 | 4 | 1 | -40 to 75 C |
