EDS-G205 Series

5-Port Full Gigabit Unmanaged Industrial Ethernet Switch

Features & Benefits

5 Gigabit ports (4 RJ45 + 1 Combo RJ45/SFP+)
Relay alarm for power/port failure
Redundant 12/24/48 VDC dual power
4-pin DIP: BSP/Jumbo Frame/802.3az/SFP speed
10 KB jumbo frame support
-40 to 75 C wide temp

Certifications

EDS-G205 is a 5-port full Gigabit unmanaged switch with 1 combo port (RJ45/SFP+). Relay alarm, redundant power, DIP switch for BSP/jumbo frame/802.3az/port alarm.

4 GE + 1 Combo Gigabit
Relay alarm
Redundant dual power
10 KB jumbo frame

4-pin DIP switch
Broadcast storm protection
802.3az energy saving
-40 to 75 C

Ethernet Interface

10/100/1000BaseT(X)	4 x RJ45
Combo Port	1 (10/100/1000BaseT(X) or 100/1000BaseSFP+)
Standards	IEEE 802.3, 802.3ab, 802.3u, 802.3x, 802.3z, 802.3az

Switch Properties

Type	Store-and-forward
MAC Table	8K
Packet Buffer	1 Mb
Jumbo Frame	10 KB

DIP Switch

Functions	BSP, Jumbo Frame, 802.3az, SFP Speed, Port Alarm

I/O

Alarm	1 relay, 1 A @ 24 VDC

Power

Input	12/24/48 VDC redundant dual

Mechanical

Housing/IP	Metal / IP30
Mounting	DIN-rail

Operating Environment

Temperature	Standard: -10 to 60 C (14 to 140 F); Wide: -40 to 75 C (-40 to 167 F)

Warranty

Period	5 years

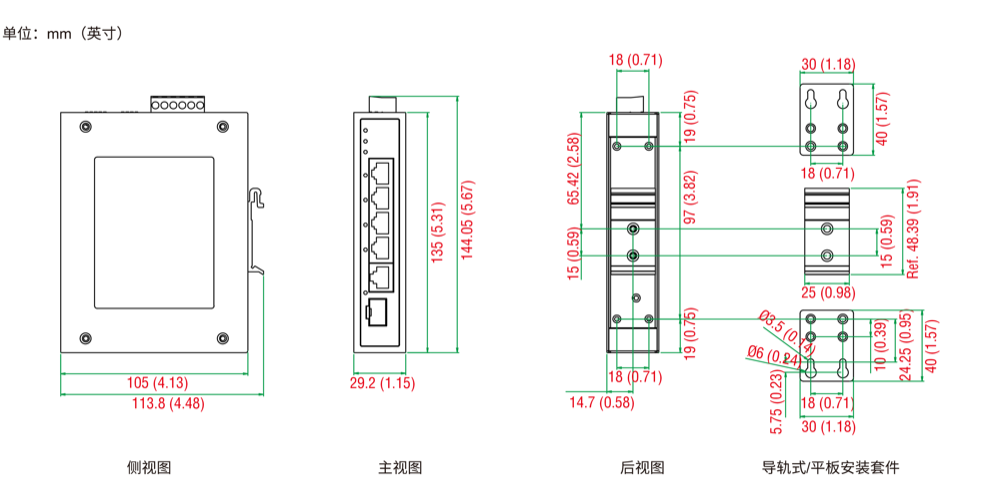

Dimensions

Software, Firmware & Drivers

File Name	Type	Version	Operating System	Release Date
EDS-G205-series-firmware-v4.1.rom	Firmware	v4.1	—	2024-06-26
EDS-G205-series-mib-package-v4.1.zip	Software Package	v4.1	—	2024-06-26
EDS-G205-series-eds-package-v1.0.zip	Software Package	v1.0	—	2024-04-24

Support Documents

File Name	Type	Version	Release Date

Ordering

Model	GE RJ45	Combo SFP+	Temp
EDS-G205-1GTXSFP	4	1	-10 to 60 C
EDS-G205-1GTXSFP-T	4	1	-40 to 75 C
