EDS-G2008-ELP Series
8-Port Entry-Level Full Gigabit Unmanaged Switch with Plastic Housing
Features & Benefits
- 8 x 10/100/1000BaseT(X) RJ45
- QoS + Broadcast Storm Protection (DIP switch)
- Plastic housing IP40
- Compact: 36 x 81 x 65 mm
- Cost-effective Gigabit solution
Certifications
EDS-G2008-ELP is an 8-port full Gigabit unmanaged switch with plastic housing. DIP switch for QoS/BSP. Compact and cost-effective.
- 8 GE RJ45
- QoS + BSP DIP
- Plastic IP40
- Compact design
- DIN/wall mount
- 100% burn-in
- -10 to 60 C
- 5-year warranty
Ethernet Interface
| Ports | 8 x 10/100/1000BaseT(X) (RJ45) |
|---|---|
| Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p |
Switch Properties
| MAC Table | 4K |
|---|---|
| Packet Buffer | 1.5 Mb |
DIP Switch
| Functions | QoS, Broadcast Storm Protection |
|---|
Power
| Input | 12/24/48 VDC (9.6 to 60 VDC) |
|---|---|
| Current | 0.33 A max |
Mechanical
| Housing/IP | Plastic / IP40 |
|---|---|
| Weight | 140 g (0.31 lb) |
| Mounting | DIN-rail, wall (optional) |
Operating Environment
| Temperature | -10 to 60 C (14 to 140 F) |
|---|
Warranty
| Period | 5 years |
|---|

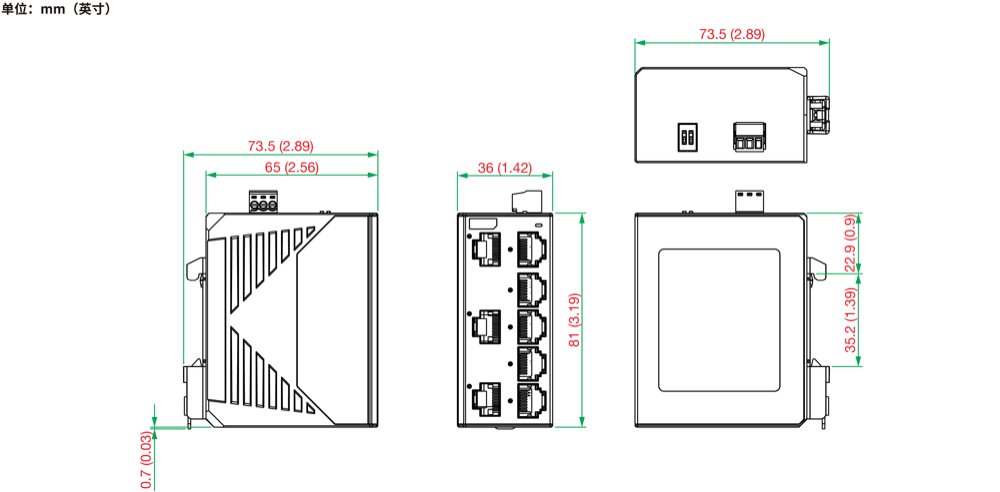

Dimensions
Software, Firmware & Drivers
| File Name | Type | Version | Operating System | Release Date |
|---|---|---|---|---|
| EDS-G2008-ELP-series-firmware-v4.1.rom | Firmware | v4.1 | โ | 2024-06-26 |
| EDS-G2008-ELP-series-mib-package-v4.1.zip | Software Package | v4.1 | โ | 2024-06-26 |
| EDS-G2008-ELP-series-eds-package-v1.0.zip | Software Package | v1.0 | โ | 2024-04-24 |
Support Documents
| File Name | Type | Version | Release Date |
|---|
Related Content
๐
Application Guide
Building future-proof industrial network infrastructure
๐ฅ
Video
Witness the evolution of industrial networking with Moxa
๐
Application Note
Enhance network performance for IP surveillance systems
๐
Solution Brief
Strengthen network resilience for industrial control systems
Ordering
| Model | GE Ports | Temp |
|---|---|---|
| EDS-G2008-ELP | 8 | -10 to 60 C |
