EDS-528E Series
24+4G-Port Gigabit Managed Industrial Ethernet Switch
Features & Benefits
- 4 combo Gigabit ports + 24 FE
- Turbo Ring/Turbo Chain < 20 ms
- RSTP/STP/MSTP
- IEC 62443 security, RADIUS, TACACS+, 802.1X
- EtherNet/IP, PROFINET, Modbus TCP
- V-ON multicast recovery
- -40 to 75 C
Certifications
EDS-528E compact 28-port managed switch with 4 combo Gigabit (RJ45/SFP) and 24 FE. IEC 62443 security, Turbo Ring redundancy, V-ON. Suitable for maritime, railway, oil & gas.
- 24 FE + 4 Combo Gigabit
- Turbo Ring < 20 ms
- IEC 62443
- EtherNet/IP/PROFINET/Modbus
- V-ON
- ABC-02-USB
- CLI/Web
- -40 to 75 C
Ethernet Interface
| 10/100BaseT(X) | 24 |
|---|---|
| Combo Gigabit | 4 (10/100/1000BaseT(X) or SFP+) |
Software
| Redundancy | Turbo Ring, Turbo Chain, RSTP, STP, MSTP, V-ON |
|---|---|
| Security | IEC 62443, RADIUS, TACACS+, MAB, SNMPv3, 802.1X, MAC ACL, HTTPS, SSH |
| Industrial Protocols | EtherNet/IP, PROFINET, Modbus TCP |
I/O
| Alarm | 1 relay, 1 A @ 24 VDC |
|---|---|
| DI | 1 channel |
Power
| Input | 24 VDC redundant dual |
|---|
Mechanical
| Housing/IP | Metal / IP30 |
|---|
Operating Environment
| Temperature | Standard: 0 to 60 C (32 to 140 F); Wide: -40 to 75 C (-40 to 167 F) |
|---|
Warranty
| Period | 5 years |
|---|

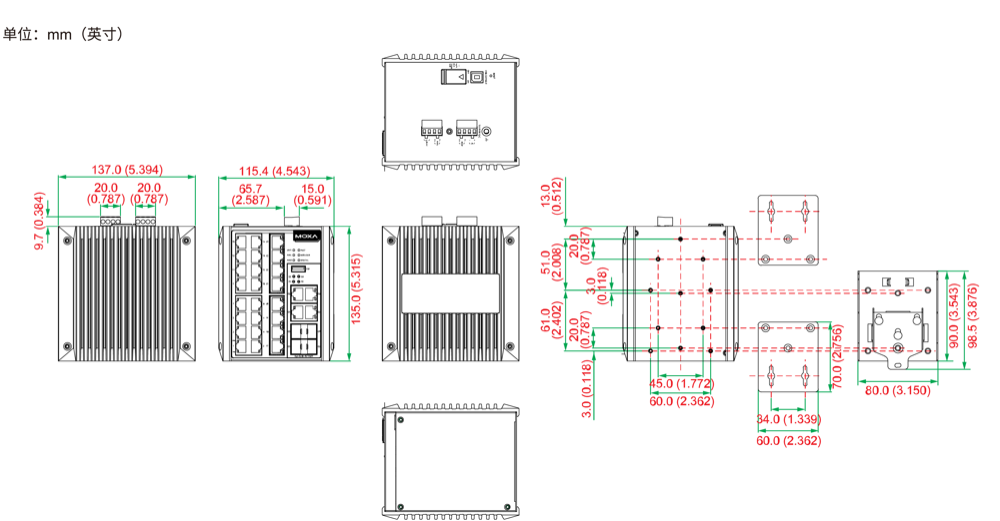

Dimensions
Software, Firmware & Drivers
| File Name | Type | Version | Operating System | Release Date |
|---|---|---|---|---|
| EDS-528E-series-firmware-v4.1.rom | Firmware | v4.1 | โ | 2024-06-26 |
| EDS-528E-series-mib-package-v4.1.zip | Software Package | v4.1 | โ | 2024-06-26 |
| EDS-528E-series-eds-package-v1.0.zip | Software Package | v1.0 | โ | 2024-04-24 |
Support Documents
| File Name | Type | Version | Release Date |
|---|
Related Content
๐
Application Guide
Building future-proof industrial network infrastructure
๐ฅ
Video
Witness the evolution of industrial networking with Moxa
๐
Application Note
Enhance network performance for IP surveillance systems
๐
Solution Brief
Strengthen network resilience for industrial control systems
Ordering
| Model | FE | Combo Gigabit | Temp |
|---|---|---|---|
| EDS-528E | 24 | 4 | 0 to 60 C |
| EDS-528E-T | 24 | 4 | -40 to 75 C |
