EDS-518E Series
14+4G-Port Gigabit Managed Industrial Ethernet Switch
Features & Benefits
- 4 combo Gigabit ports + 14 FE (copper/fiber)
- Turbo Ring/Turbo Chain < 20 ms (< 50 ms Gigabit)
- RSTP/STP/MSTP
- IEC 62443 security, RADIUS, TACACS+, 802.1X
- Fiber Check DDM monitoring
- EtherNet/IP, PROFINET, Modbus TCP
- V-ON multicast/video recovery
Certifications
EDS-518E compact 18-port managed switch with 4 combo Gigabit ports (RJ45/SFP) and 14 FE. IEC 62443 security, Fiber Check DDM. Turbo Ring, V-ON. ABC-02-USB backup.
- 14 FE + 4 Combo Gigabit
- Turbo Ring < 20 ms
- IEC 62443 security
- Fiber Check DDM
- EtherNet/IP/PROFINET/Modbus
- V-ON
- ABC-02-USB
- -40 to 75 C
Ethernet Interface
| 10/100BaseT(X) | 14 (base); fewer on fiber models |
|---|---|
| Combo Gigabit Ports | 4 (10/100/1000BaseT(X) or 100/1000BaseSFP+) |
| 100BaseFX | MM-SC/MM-ST/SS-SC options |
Software
| Redundancy | Turbo Ring, Turbo Chain, RSTP, STP, MSTP, V-ON |
|---|---|
| Security | IEC 62443, RADIUS, TACACS+, MAB, SNMPv3, 802.1X, MAC ACL, HTTPS, SSH, Sticky MAC |
| Industrial Protocols | EtherNet/IP, PROFINET, Modbus TCP |
| Management | CLI, Web, Telnet, console, ABC-02-USB |
| Fiber Check | DDM for MST/MSC/SSC/SFP ports |
I/O
| Alarm | 1 relay, 1 A @ 24 VDC |
|---|---|
| Digital Input | 1 channel |
Power
| Input | 24 VDC redundant dual |
|---|
Mechanical
| Housing/IP | Metal / IP30 |
|---|
Operating Environment
| Temperature | Standard: 0 to 60 C (32 to 140 F); Wide: -40 to 75 C (-40 to 167 F) |
|---|
Warranty
| Period | 5 years |
|---|

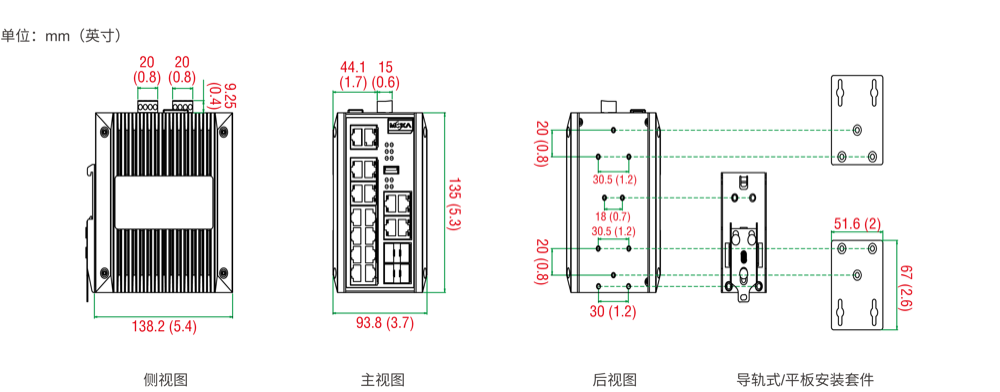

Dimensions
Software, Firmware & Drivers
| File Name | Type | Version | Operating System | Release Date |
|---|---|---|---|---|
| EDS-518E-series-firmware-v4.1.rom | Firmware | v4.1 | โ | 2024-06-26 |
| EDS-518E-series-mib-package-v4.1.zip | Software Package | v4.1 | โ | 2024-06-26 |
| EDS-518E-series-eds-package-v1.0.zip | Software Package | v1.0 | โ | 2024-04-24 |
Support Documents
| File Name | Type | Version | Release Date |
|---|
Related Content
๐
Application Guide
Building future-proof industrial network infrastructure
๐ฅ
Video
Witness the evolution of industrial networking with Moxa
๐
Application Note
Enhance network performance for IP surveillance systems
๐
Solution Brief
Strengthen network resilience for industrial control systems
Ordering
| Model | FE | Combo Gigabit | Temp |
|---|---|---|---|
| EDS-518E | 14 | 4 | 0 to 60 C |
| EDS-518E-T | 14 | 4 | -40 to 75 C |
