EDS-518A Series
16+2G-Port Gigabit Managed Industrial Ethernet Switch
Features & Benefits
- 2 Gigabit and 16 Fast Ethernet ports, copper and fiber
- Supports Turbo Ring and Turbo Chain (recovery < 20 ms @ 250 switches), RSTP/STP/MSTP
- TACACS+, SNMPv3, IEEE 802.1X, HTTPS and SSH for enhanced network security
- Management via Web browser, CLI, Telnet/serial console, Windows utility and ABC-01
Certifications
The EDS-518A 18-port managed industrial Ethernet switch features 2 combo Gigabit ports (RJ45 or SFP) for Gigabit fiber backbone connections. Turbo Ring and Turbo Chain (< 20 ms recovery) redundancy enhances system reliability and backbone availability. Advanced management and security features.
- CLI for quick configuration
- DHCP Option 82
- EtherNet/IP and Modbus TCP
- PROFINET compatible
- ABC-01-USB for config backup
- IGMP snooping and GMRP
- Port-based VLAN, IEEE 802.1Q VLAN and GVRP
- QoS (IEEE 802.1p and TOS/DiffServ)
- Port trunking
- SNMPv1/v2c/v3 multi-level
- RMON active monitoring
- Bandwidth management
Ethernet Interface
| 10/100BaseT(X) Ports | EDS-518A/T: 16; Fiber models: 14 |
|---|---|
| 100BaseFX Ports | MM-SC: 2; MM-ST: 2; SS-SC: 2; SS-SC-80: 2 |
| Combo Gigabit Ports | 2 (10/100/1000BaseT(X) or 1000BaseSFP) |
| Standards | IEEE 802.3/802.3u/802.3ab/802.3z/802.1X/802.1D-2004/802.1w/802.1s/802.1Q/802.1p/802.3x/802.3ad |
Fiber Optics (100BaseFX)
| Multi-mode (MM) | 50/125ยตm OM1, 800MHzรkm, 4km; 5km typical |
|---|---|
| Single-mode (SM) | G.652, 40km typical; SS-SC-80: 80km |
| Wavelength | MM: 1300nm; SM: 1310nm |
| TX Power | MM: -10 to -20 dBm; SM: 0 to -5 dBm |
| RX Sensitivity | MM: -3 to -32 dBm; SM: -3 to -34 dBm |
| Link Budget | MM: 12 dB; SM: 29 dB |
| Dispersion Penalty | MM: 3 dB; SM: 1 dB |
Ethernet Software Features
| Industrial Protocols | EtherNet/IP, Modbus TCP |
|---|---|
| Management | IPv4/IPv6, SNMPv1/v2c/v3, LLDP, Port Mirror, BackPressure Flow Control, BOOTP, DDM, DHCP Option 66/67/82, DHCP Server/Client, Flow Control, RARP, RMON, SMTP, SNMP Inform, Syslog, Telnet, TFTP |
| Redundancy | STP, RSTP, MSTP, Turbo Ring v1/v2, Turbo Chain, LACP, Link Aggregation |
| Security | HTTPS/SSL, SSH, RADIUS, TACACS+, Port Lock, Broadcast Storm Protection |
| Time Service | NTP Server/Client, SNTP |
| Filter | 802.1Q VLAN, Port-based VLAN, IGMP v1/v2, GVRP, GMRP |
| MIB | MIB-II, Bridge MIB, Ethernet-like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1,2,3,9, RSTP MIB |
Switch Properties
| MAC Table | 8K |
|---|---|
| Max VLANs | 64 |
| IGMP Groups | 256 |
| Priority Queues | 4 |
| Packet Buffer | 2Mb |
| VLAN ID Range | VID 1 to 4094 |
Serial Interface
| Console Port | RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1) |
|---|
Input/Output Interface
| Alarm Contact | 1, resistive load: 1 A @ 24 VDC |
|---|---|
| Digital Input | 1 channel; +13 to +30 V state 1, -30 to +3 V state 0; max 8 mA |
DIP Switch Configuration
| DIP Switches | Turbo Ring, Master, Coupler, Reserved |
|---|
LED Indicators
| LEDs | PWR1, PWR2, FAULT, 10/100M (TP), 100M (Fiber), 1000M (Gigabit), MSTR/HEAD, CPLR/TAIL |
|---|
Power Parameters
| Connector | 2 removable 6-pin terminal blocks |
|---|---|
| Input Voltage | 24 VDC, redundant dual input |
| Operating Voltage | 12 to 45 VDC |
| Input Current | EDS-518A/T: 0.44 A @ 24 VDC; Fiber models: 0.52 A @ 24 VDC |
| Overload Current Protection | Supported |
| Reverse Polarity Protection | Supported |
Mechanical
| Housing | Metal |
|---|---|
| IP Rating | IP30 |
| Dimensions | 94 x 135 x 142.7 mm (3.7 x 5.31 x 5.62 in) |
| Weight | 1,630 g (3.60 lb) |
| Installation | DIN-rail, wall mounting (with optional kit) |
Operating Environment
| Operating Temperature | Standard: 0 to 60 C; Wide-temp: -40 to 75 C |
|---|---|
| Storage Temperature | -40 to 85 C |
| Relative Humidity | 5 to 95% (non-condensing) |
Certifications
| Safety | EN 60950-1, UL 60950-1, CSA C22.2 No. 60950-1, UL 508 |
|---|---|
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD (Contact: 6 kV; Air: 8 kV); IEC 61000-4-3 RS (10 V/m); IEC 61000-4-4 EFT (Power: 1 kV; Signal: 0.5 kV); IEC 61000-4-5 Surge (Power: 2 kV; Signal: 1 kV); IEC 61000-4-6 CS (10 V); IEC 61000-4-8 PFMF |
| Marine | DNV-GL, NK |
| Shock/Vibration/Freefall | IEC 60068-2-27 / IEC 60068-2-6 / IEC 60068-2-31 |
MTBF
| Time | 250,966 hours |
|---|---|
| Standard | Telcordia (Bellcore), GB |
Warranty
| Warranty Period | 5 years |
|---|

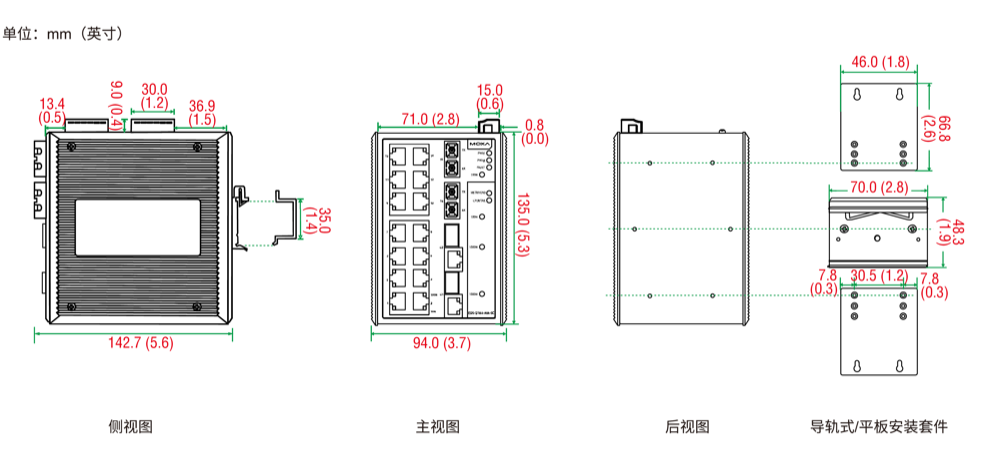

Dimensions
Software, Firmware & Drivers
| File Name | Type | Version | Operating System | Release Date |
|---|---|---|---|---|
| EDS-518A-series-firmware-v4.1.rom | Firmware | v4.1 | โ | 2024-06-26 |
| EDS-518A-series-mib-package-v4.1.zip | Software Package | v4.1 | โ | 2024-06-26 |
| EDS-518A-series-eds-package-v1.0.zip | Software Package | v1.0 | โ | 2024-04-24 |
Support Documents
| File Name | Type | Version | Release Date |
|---|
Related Content
๐
Application Guide
Building future-proof industrial network infrastructure
๐ฅ
Video
Witness the evolution of industrial networking with Moxa
๐
Application Note
Enhance network performance for IP surveillance systems
๐
Solution Brief
Strengthen network resilience for industrial control systems
Ordering
| Model | RJ45 | Combo Gigabit | Fiber SC MM | Fiber ST MM | Fiber SC SM | Fiber SC SM 80km | Temp |
|---|---|---|---|---|---|---|---|
| EDS-518A | 16 | 2 | -- | -- | -- | -- | 0 to 60 C |
| EDS-518A-T | 16 | 2 | -- | -- | -- | -- | -40 to 75 C |
| EDS-518A-MM-SC | 14 | 2 | 2 | -- | -- | -- | 0 to 60 C |
| EDS-518A-MM-SC-T | 14 | 2 | 2 | -- | -- | -- | -40 to 75 C |
| EDS-518A-MM-ST | 14 | 2 | -- | 2 | -- | -- | 0 to 60 C |
| EDS-518A-MM-ST-T | 14 | 2 | -- | 2 | -- | -- | -40 to 75 C |
| EDS-518A-SS-SC | 14 | 2 | -- | -- | 2 | -- | 0 to 60 C |
| EDS-518A-SS-SC-T | 14 | 2 | -- | -- | 2 | -- | -40 to 75 C |
| EDS-518A-SS-SC-80 | 14 | 2 | -- | -- | -- | 2 | 0 to 60 C |
