EDS-516A Series
16-Port Managed Industrial Ethernet Switch
Features & Benefits
- Supports Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), RSTP/STP/MSTP redundancy
- TACACS+, SNMPv3, IEEE 802.1X, HTTPS and SSH for enhanced network security
- Management via Web browser, CLI, Telnet/serial console, Windows utility and ABC-01
- MXstudio for easy visualized industrial network management
Certifications
The EDS-516A 16-port managed industrial Ethernet switch features Turbo Ring and Turbo Chain (< 20 ms recovery), RSTP/STP/MSTP redundancy. Supports -40 to 75 C wide-temp models with advanced management and security features.
- CLI for quick configuration
- DHCP Option 82
- EtherNet/IP and Modbus TCP
- PROFINET compatible
- IGMP snooping and GMRP
- Email and relay alarm
- Port-based VLAN, IEEE 802.1Q VLAN and GVRP
- QoS (IEEE 802.1p/1Q and TOS/DiffServ)
- Port trunking for optimized bandwidth
- RMON for efficient monitoring
- SNMPv1/v2c/v3 multi-level management
- Bandwidth management
Ethernet Interface
| 10/100BaseT(X) Ports (RJ45) | 16 (base) or 14 (fiber models) |
|---|---|
| 100BaseFX Ports | 2 (SC multi-mode or ST multi-mode) |
| Standards | IEEE 802.3/802.3u/802.1X/802.1D-2004/802.1w/802.1s/802.1Q/802.1p/802.3x/802.3ad |
Ethernet Software Features
| Industrial Protocols | EtherNet/IP, Modbus TCP |
|---|---|
| Management | IPv4/IPv6, SNMPv1/v2c/v3, LLDP, Port Mirror, DHCP, RMON, SMTP, Telnet, TFTP, Syslog |
| Redundancy | STP, RSTP, MSTP, Turbo Ring v1/v2, Turbo Chain, LACP |
| Security | HTTPS/SSL, SSH, RADIUS, TACACS+, Port Lock, Broadcast Storm Protection |
| Time Service | NTP, SNTP, IEEE 1588v2 PTP (software-based) |
Switch Properties
| MAC Table | 8K |
|---|---|
| Max VLANs | 64 |
| IGMP Groups | 256 |
| Priority Queues | 4 |
| Packet Buffer | 2Mb |
Power Parameters
| Input Voltage | 24 VDC, redundant dual input |
|---|---|
| Operating Voltage | 12 to 45 VDC |
| Input Current | 0.35 A @ 24 VDC (base); 0.44 A (fiber models) |
| Protection | Overload current / Reverse polarity |
Mechanical
| Housing/IP | Metal / IP30 |
|---|---|
| Dimensions | 94 x 135 x 142.7 mm (3.7 x 5.31 x 5.62 in) |
| Weight | 1,586 g (3.50 lb) |
| Mounting | DIN-rail, wall (optional kit) |
Environment
| Temperature | Standard: 0 to 60 C; Wide: -40 to 75 C |
|---|---|
| Humidity | 5 to 95% (non-condensing) |
Certifications
| Safety | EN 60950-1, UL 60950-1, UL 508 |
|---|---|
| Marine | DNV-GL |
| EMS | IEC 61000-4-2/3/4/5/6/8 |
MTBF
| Time | 247,676 hours |
|---|
Warranty
| Period | 5 years |
|---|

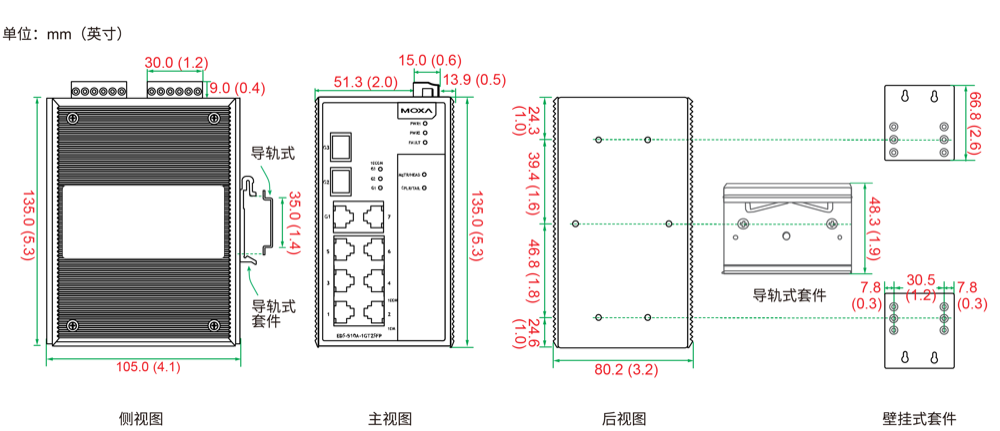

Dimensions
Software, Firmware & Drivers
| File Name | Type | Version | Operating System | Release Date |
|---|---|---|---|---|
| EDS-516A-series-firmware-v4.1.rom | Firmware | v4.1 | โ | 2024-06-26 |
| EDS-516A-series-mib-package-v4.1.zip | Software Package | v4.1 | โ | 2024-06-26 |
| EDS-516A-series-eds-package-v1.0.zip | Software Package | v1.0 | โ | 2024-04-24 |
Support Documents
| File Name | Type | Version | Release Date |
|---|
Related Content
๐
Application Guide
Building future-proof industrial network infrastructure
๐ฅ
Video
Witness the evolution of industrial networking with Moxa
๐
Application Note
Enhance network performance for IP surveillance systems
๐
Solution Brief
Strengthen network resilience for industrial control systems
Ordering
| Model | RJ45 | Fiber SC | Fiber ST | Temp |
|---|---|---|---|---|
| EDS-516A | 16 | -- | -- | 0 to 60 C |
| EDS-516A-T | 16 | -- | -- | -40 to 75 C |
| EDS-516A-MM-SC | 14 | 2 | -- | 0 to 60 C |
| EDS-516A-MM-SC-T | 14 | 2 | -- | -40 to 75 C |
| EDS-516A-MM-ST | 14 | -- | 2 | 0 to 60 C |
| EDS-516A-MM-ST-T | 14 | -- | 2 | -40 to 75 C |
Need Help Choosing the Right Product?
Contact our engineering team for detailed specifications, pricing, and availability.
