EDS-510E Series

7+3G-Port Gigabit Managed Industrial Ethernet Switch

Features & Benefits

3 combo Gigabit ports (RJ45/SFP) for ring + uplink
Turbo Ring/Turbo Chain < 20 ms (< 50 ms Gigabit)
RSTP/STP/MSTP
IEC 62443 based security, RADIUS, TACACS+, 802.1X
USB for config backup/firmware upgrade
EtherNet/IP, PROFINET, Modbus TCP
V-ON for multicast/video recovery

Certifications

EDS-510E features 7 FE + 3 combo Gigabit ports (RJ45/SFP). IEC 62443 security, USB management, V-ON technology. Ideal for factory automation, ITS, process control.

7 FE + 3 Combo Gigabit
Turbo Ring < 20 ms
IEC 62443 security
USB config backup

EtherNet/IP/PROFINET/Modbus
V-ON multicast
CLI/Web
-40 to 75 C

Ethernet Interface

10/100BaseT(X)	7 x RJ45
Combo Gigabit	3 (10/100/1000BaseT(X) or 100/1000BaseSFP+)

Software

Redundancy	Turbo Ring, Turbo Chain, RSTP, STP, MSTP, V-ON
Security	IEC 62443, RADIUS, TACACS+, SNMPv3, 802.1X, HTTPS, SSH, Sticky MAC
Industrial Protocols	EtherNet/IP, PROFINET, Modbus TCP

I/O

Alarm	1 relay, 1 A @ 24 VDC
Digital Input	1 channel

USB

Type	USB Type A (config backup, firmware upgrade)

Power

Input	24 VDC redundant dual

Mechanical

Housing/IP	Metal / IP30

Operating Environment

Temperature	Standard: 0 to 60 C (32 to 140 F); Wide: -40 to 75 C (-40 to 167 F)

Warranty

Period	5 years

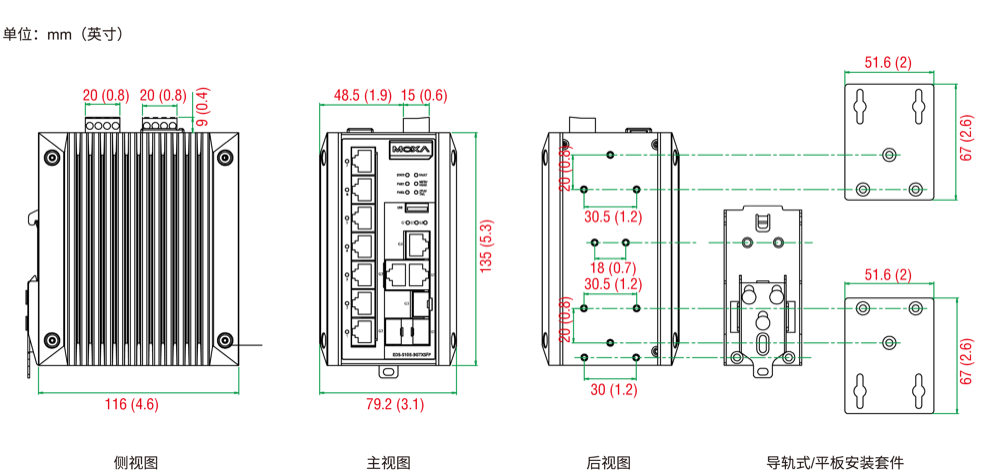

Dimensions

Software, Firmware & Drivers

File Name	Type	Version	Operating System	Release Date
EDS-510E-series-firmware-v4.1.rom	Firmware	v4.1	—	2024-06-26
EDS-510E-series-mib-package-v4.1.zip	Software Package	v4.1	—	2024-06-26
EDS-510E-series-eds-package-v1.0.zip	Software Package	v1.0	—	2024-04-24

Support Documents

File Name	Type	Version	Release Date

Ordering

Model	FE	Combo Gigabit	Temp
EDS-510E	7	3	0 to 60 C
EDS-510E-T	7	3	-40 to 75 C
