EDS-510A Series
7+3G-Port Gigabit Managed Industrial Ethernet Switch
Features & Benefits
- 3 Gigabit ports for ring + uplink
- Turbo Ring/Turbo Chain < 20 ms (< 50 ms Gigabit)
- RSTP/STP/MSTP
- TACACS+, SNMPv3, 802.1X, HTTPS, SSH
- Dual alarm + dual digital input
- EtherNet/IP, Modbus TCP
- -40 to 75 C
Certifications
EDS-510A features 7 FE + 3 Gigabit ports for Turbo Ring redundancy and uplink. Advanced security: TACACS+, SNMPv3. Ideal for video/process monitoring, ITS, DCS.
- 7 FE + 3 Gigabit
- Turbo Ring < 20 ms
- TACACS+/SNMPv3
- Dual alarm + DI
- EtherNet/IP/Modbus
- Port trunking
- CLI/Web
- -40 to 75 C
Ethernet Interface
| 10/100BaseT(X) | 7 x RJ45 |
|---|---|
| Gigabit Ports | 1GT2SFP: 1 GE + 2 SFP; 3GT: 3 GE |
| Standards | IEEE 802.3/802.3u/802.3ab/802.3z |
Software
| Redundancy | Turbo Ring, Turbo Chain, RSTP, STP, MSTP |
|---|---|
| Security | TACACS+, SNMPv3, 802.1X, HTTPS, SSH, Port Lock |
| Industrial Protocols | EtherNet/IP, Modbus TCP |
I/O
| Alarm | 2 relay, 1 A @ 24 VDC |
|---|---|
| Digital Input | 2 channels |
Power
| Input | 24 VDC redundant dual |
|---|
Mechanical
| Housing/IP | Metal / IP30 |
|---|
Operating Environment
| Temperature | Standard: 0 to 60 C (32 to 140 F); Wide: -40 to 75 C (-40 to 167 F) |
|---|---|
| Storage | -40 to 85 C |
| Humidity | 5 to 95% |
Warranty
| Period | 5 years |
|---|

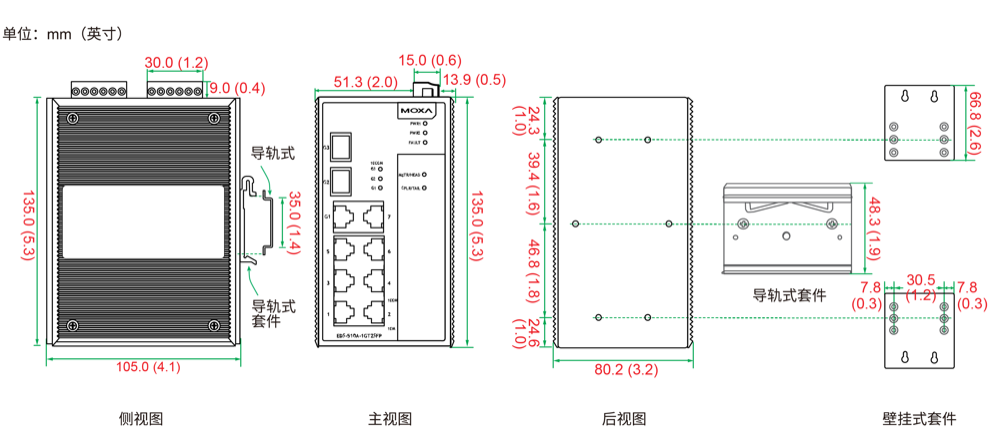

Dimensions
Software, Firmware & Drivers
| File Name | Type | Version | Operating System | Release Date |
|---|---|---|---|---|
| EDS-510A-series-firmware-v4.1.rom | Firmware | v4.1 | โ | 2024-06-26 |
| EDS-510A-series-mib-package-v4.1.zip | Software Package | v4.1 | โ | 2024-06-26 |
| EDS-510A-series-eds-package-v1.0.zip | Software Package | v1.0 | โ | 2024-04-24 |
Support Documents
| File Name | Type | Version | Release Date |
|---|
Related Content
๐
Application Guide
Building future-proof industrial network infrastructure
๐ฅ
Video
Witness the evolution of industrial networking with Moxa
๐
Application Note
Enhance network performance for IP surveillance systems
๐
Solution Brief
Strengthen network resilience for industrial control systems
Ordering
| Model | FE | Gigabit | Temp |
|---|---|---|---|
| EDS-510A-3GT | 7 | 3 GE | 0 to 60 C |
| EDS-510A-3GT-T | 7 | 3 GE | -40 to 75 C |
| EDS-510A-1GT2SFP | 7 | 1 GE + 2 SFP | 0 to 60 C |
| EDS-510A-1GT2SFP-T | 7 | 1 GE + 2 SFP | -40 to 75 C |
