EDS-505A Series
5-Port Managed Industrial Ethernet Switch
Features & Benefits
- Turbo Ring/Turbo Chain < 20 ms (250 switches)
- RSTP/STP/MSTP
- TACACS+, SNMPv3, 802.1X, HTTPS, SSH
- Web/CLI/Telnet/console management
- Dual alarm + dual digital input
- EtherNet/IP, Modbus TCP, PROFINET
- Email/relay alarm
- -40 to 75 C wide temp
Certifications
EDS-505A is a 5-port managed switch with Turbo Ring/Turbo Chain redundancy. Advanced security: TACACS+, SNMPv3, 802.1X, HTTPS, SSH. Dual alarm/digital input.
- 5 FE + optional 2 fiber
- Turbo Ring < 20 ms
- TACACS+/SNMPv3/802.1X
- CLI/Web/console
- EtherNet/IP/Modbus/PROFINET
- Port trunking
- Dual alarm + DI
- -40 to 75 C
Ethernet Interface
| 10/100BaseT(X) | 5 (base); 3 (fiber models) |
|---|---|
| 100BaseFX | 2 (MM-SC, MM-ST, or SS-SC) |
| Standards | IEEE 802.3, 802.3u, 802.3x/1Q/1D-2004/1w/1s/1p/1X/3ad |
Software
| Redundancy | Turbo Ring, Turbo Chain, RSTP, STP, MSTP |
|---|---|
| Security | TACACS+, SNMPv3, 802.1X, HTTPS, SSH, Port Lock |
| Industrial Protocols | EtherNet/IP, Modbus TCP, PROFINET |
| Management | CLI, Web, Telnet, console, ABC-01 |
Switch Properties
| MAC Table | 8K |
|---|---|
| Priority Queues | 4 |
I/O
| Alarm | 2 relay, 1 A @ 24 VDC |
|---|---|
| Digital Input | 2 channels |
Power
| Input | 24 VDC redundant dual |
|---|
Mechanical
| Housing/IP | Metal / IP30 |
|---|---|
| Mounting | DIN-rail |
Operating Environment
| Temperature | Standard: 0 to 60 C (32 to 140 F); Wide: -40 to 75 C (-40 to 167 F) |
|---|---|
| Storage | -40 to 85 C |
| Humidity | 5 to 95% |
Warranty
| Period | 5 years |
|---|

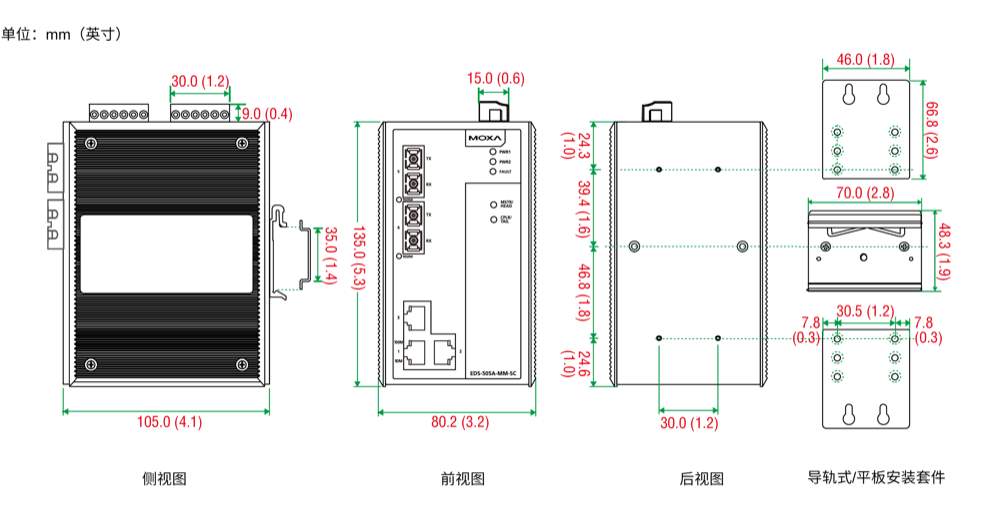

Dimensions
Software, Firmware & Drivers
| File Name | Type | Version | Operating System | Release Date |
|---|---|---|---|---|
| EDS-505A-series-firmware-v4.1.rom | Firmware | v4.1 | โ | 2024-06-26 |
| EDS-505A-series-mib-package-v4.1.zip | Software Package | v4.1 | โ | 2024-06-26 |
| EDS-505A-series-eds-package-v1.0.zip | Software Package | v1.0 | โ | 2024-04-24 |
Support Documents
| File Name | Type | Version | Release Date |
|---|
Related Content
๐
Application Guide
Building future-proof industrial network infrastructure
๐ฅ
Video
Witness the evolution of industrial networking with Moxa
๐
Application Note
Enhance network performance for IP surveillance systems
๐
Solution Brief
Strengthen network resilience for industrial control systems
Ordering
| Model | 10/100BaseT(X) | 100BaseFX | Temp |
|---|---|---|---|
| EDS-505A | 5 | -- | 0 to 60 C |
| EDS-505A-T | 5 | -- | -40 to 75 C |
| EDS-505A-MM-SC | 3 | 2 multi SC | -40 to 75 C |
| EDS-505A-MM-ST | 3 | 2 multi ST | -40 to 75 C |
| EDS-505A-SS-SC | 3 | 2 single SC | -40 to 75 C |
