EDS-405A Series
5-Port Entry-Level Managed Industrial Ethernet Switch
Features & Benefits
- Turbo Ring/Turbo Chain < 20 ms (250 switches)
- RSTP/STP redundancy
- IGMP Snooping, QoS, 802.1Q VLAN
- Web/CLI/Telnet/console management
- PROFINET or EtherNet/IP (PN/EIP models)
- DIP switch for Turbo Ring setup
- Email/relay alarm
Certifications
EDS-405A is a 5-port managed switch with Turbo Ring/Turbo Chain redundancy. IGMP, QoS, VLAN, RMON, bandwidth management, port mirroring. PROFINET/EtherNet/IP models available.
- 5 FE + optional 2 fiber
- Turbo Ring < 20 ms
- IGMP/QoS/VLAN
- Web/CLI/DIP switch
- PROFINET/EtherNet/IP
- Port mirroring
- Email/relay alarm
- -40 to 75 C
Ethernet Interface
| 10/100BaseT(X) | 5 (base); 3 (fiber models) |
|---|---|
| 100BaseFX | 2 (MM-SC, MM-ST, or SS-SC) |
| Standards | IEEE 802.3, 802.3u, 802.3x/1Q/1D-2004/1w/1p/1X |
Software Features
| Redundancy | Turbo Ring, Turbo Chain, RSTP, STP |
|---|---|
| Management | Web, CLI, Telnet, console, Windows utility, ABC-01 |
| Industrial Protocols | EtherNet/IP, Modbus TCP, PROFINET (PN models) |
| Security | HTTPS/SSL, SSH, RADIUS |
Power
| Input | 12/24/48 VDC redundant dual |
|---|
Mechanical
| Housing/IP | Metal / IP30 |
|---|---|
| Mounting | DIN-rail |
Operating Environment
| Temperature | Standard: 0 to 60 C (32 to 140 F); Wide: -40 to 75 C (-40 to 167 F) |
|---|---|
| Storage | -40 to 85 C |
| Humidity | 5 to 95% |
Warranty
| Period | 5 years |
|---|

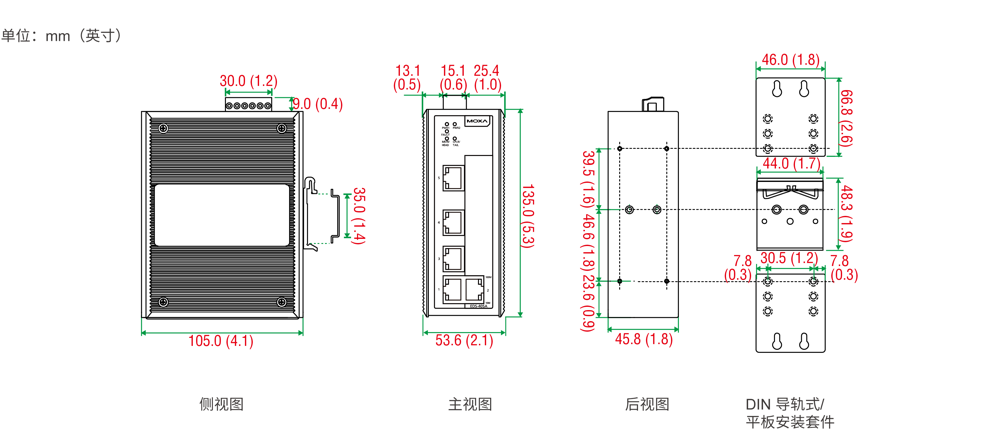

Dimensions
Software, Firmware & Drivers
| File Name | Type | Version | Operating System | Release Date |
|---|---|---|---|---|
| EDS-405A-series-firmware-v4.1.rom | Firmware | v4.1 | โ | 2024-06-26 |
| EDS-405A-series-mib-package-v4.1.zip | Software Package | v4.1 | โ | 2024-06-26 |
| EDS-405A-series-eds-package-v1.0.zip | Software Package | v1.0 | โ | 2024-04-24 |
Support Documents
| File Name | Type | Version | Release Date |
|---|
Related Content
๐
Application Guide
Building future-proof industrial network infrastructure
๐ฅ
Video
Witness the evolution of industrial networking with Moxa
๐
Application Note
Enhance network performance for IP surveillance systems
๐
Solution Brief
Strengthen network resilience for industrial control systems
Ordering
| Model | 10/100BaseT(X) | 100BaseFX | Protocol | Temp |
|---|---|---|---|---|
| EDS-405A | 5 | -- | Generic | 0 to 60 C |
| EDS-405A-T | 5 | -- | Generic | -40 to 75 C |
| EDS-405A-EIP | 5 | -- | EtherNet/IP | 0 to 60 C |
| EDS-405A-PN | 5 | -- | PROFINET | 0 to 60 C |
| EDS-405A-MM-SC | 3 | 2 multi SC | Generic | -40 to 75 C |
| EDS-405A-MM-ST | 3 | 2 multi ST | Generic | -40 to 75 C |
| EDS-405A-SS-SC | 3 | 2 single SC | Generic | -40 to 75 C |
