EDS-4014 Series

8+4G+2 2.5GbE Port Managed Ethernet Switch

Features & Benefits

Developed per IEC 62443-4-1 and compliant with IEC 62443-4-2 industrial cybersecurity standard
Increased bandwidth capacity with fiber SFP slots supporting up to 2.5 Gbps
Supports Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches) and RSTP/STP redundancy
Multiple power input options for flexible deployment
Compact and flexible housing design for confined spaces
MXstudio for easy visualized industrial network management

Certifications

The EDS-4014 series is a 14-port managed Ethernet switch with 4 1 Gbps and 2 2.5 Gbps SFP slots. Ethernet redundancy technologies such as Turbo Ring, Turbo Chain, and RSTP/STP enhance system reliability and backbone network availability. The EDS-4014 series is designed for demanding applications such as video and process monitoring, ITS, and DCS systems that benefit from scalable backbone communications.

The EDS-4014 series complies with IEC 62443-4-2 and IEC 62443-4-1 industrial cybersecurity certifications, covering product security and secure development lifecycle requirements to help customers meet regulatory compliance for secure industrial network design.

IEC 62443-4-1/4-2 certified for industrial cybersecurity
2.5 Gbps SFP slots for high-bandwidth backbone connectivity
Turbo Ring and Turbo Chain with < 20 ms recovery time
Modular power design with LV and HV options

Compact metal housing for space-constrained installations
Wide operating temperature range: -40 to 75°C
Comprehensive management: SNMP, web, Telnet/CLI, MXview
Advanced security: ACL, SSH/SSL, RADIUS, TACACS+, DHCP Snooping

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)	8
100/1000BaseSFP Slots	4
1000/2500BaseSFP Slots	2
Standards	IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3z for 1000BaseX, IEEE 802.3bz for 2.5GBaseX, IEEE 802.3x for Flow Control, IEEE 802.3ad for LACP, IEEE 802.1Q for VLAN, IEEE 802.1D-2004 for STP, IEEE 802.1w for RSTP, IEEE 802.1p for Class of Service, IEEE 802.1X for Authentication

Ethernet Software Features

Industrial Protocols	EtherNet/IP, Modbus TCP, PROFINET IO Device
Management	IPv4/IPv6, Flow Control, Back Pressure Flow Control, DHCP Server/Client, ARP, RARP, LLDP, Port Mirroring (SPAN, RSPAN), Linkup Delay, SMTP, SNMP Trap, SNMP Inform, SNMPv1/v2c/v3, RMON, TFTP, SFTP, HTTP, HTTPS, Telnet, Syslog, Private MIB
Filtering	GMRP, GVRP, GARP, 802.1Q VLAN, IGMP Snooping v1/v2/v3, IGMP Querier
Redundancy Protocols	STP, RSTP, Turbo Ring v2, Turbo Chain, Ring Coupling, Dual Homing, Link Aggregation, MRP, MSTP
Security	Broadcast Storm Protection, Rate Limiting, Trusted Access Control, Static Port Lock, MAC Sticky, HTTPS/SSL, SSH, RADIUS, TACACS+, ACL, Login and Password Policy, DHCP Snooping
Time Service	SNTP, NTP Server/Client, NTP Authentication, Hardware-based IEEE 1588v2 PTP (Power Profile: IEEE 1588 Default 2008, IEC 61850-9-3-2016, IEEE C37.238-2017)

Switch Properties

MAC Address Table Size	16 K
Jumbo Frame Size	9.216 KB
Max. VLANs	256
VLAN ID Range	VID 1 to 4094
IGMP Groups	512
Priority Queues	4
Packet Buffer Size	1 MB

Serial Interface

Console Port	RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)

Input/Output Interface

Alarm Contact Channels	1, relay output with carrying capacity: 1 A @ 24 VDC
Digital Input Channels	1
Digital Input	+13 to +30 V for state 1, -30 to +3 V for state 0, Max. input current: 8 mA
Button	Reset button

DIP Switch Configuration

DIP Switches	Turbo Ring, Master, Coupler, Reserved

Power Parameters

Connection	2 removable 4-contact terminal blocks
Input Voltage (LV models)	12/24/48 VDC, redundant dual input
Input Voltage (HV models)	110/220 VDC/VAC, single input
Operating Voltage (LV models)	9.6 to 60 VDC
Operating Voltage (HV models)	88 to 300 VDC, 85 to 264 VAC
Power Consumption (LV models)	12.15 W (max)
Power Consumption (HV models)	14.44 W (max)
Overload Current Protection	Supported
Reverse Polarity Protection	Supported

Mechanical Characteristics

Housing	Metal
IP Rating	IP40
Dimensions	55 x 140 x 122.5 mm (2.17 x 5.51 x 4.82 in)
Weight	846 g (1.87 lb)
Installation	DIN-rail mounting, wall mounting (with optional kit)

Operating Environment

Operating Temperature	Standard model: -10 to 60°C (14 to 140°F); Wide-temp model: -40 to 75°C (-40 to 167°F)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Relative Humidity	5 to 95% (non-condensing)

Safety & Certifications

Industrial Cybersecurity	IEC 62443-4-1, IEC 62443-4-2
Safety	UL 61010-2-201, EN 62368-1 (LVD)
EMC	EN 55032/35, EN 61000-6-2/-6-4
EMI	CISPR 32, FCC Part 15B Class A
EMS	IEC 61000-4-2 ESD (Contact: 8 kV; Air: 15 kV); IEC 61000-4-3 RS (80 MHz to 1 GHz: 20 V/m); IEC 61000-4-4 EFT (Power: 4 kV; Signal: 4 kV); IEC 61000-4-5 Surge (Power: 4 kV; Signal: 4 kV); IEC 61000-4-6 CS (10 V); IEC 61000-4-8 PFMF
Marine (LV models)	DNV, ABS, NK, LR
Railway	EN 50121-4
Traffic Control	NEMA TS2
Substation	IEC 61850-3, IEEE 1613 Class 1
Vibration	IEC 60068-2-6
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32

MTBF

Time (LV models)	1,003,814 hours
Time (HV models)	489,769 hours
Standard	Telcordia SR332

Warranty

Warranty Period	5 years

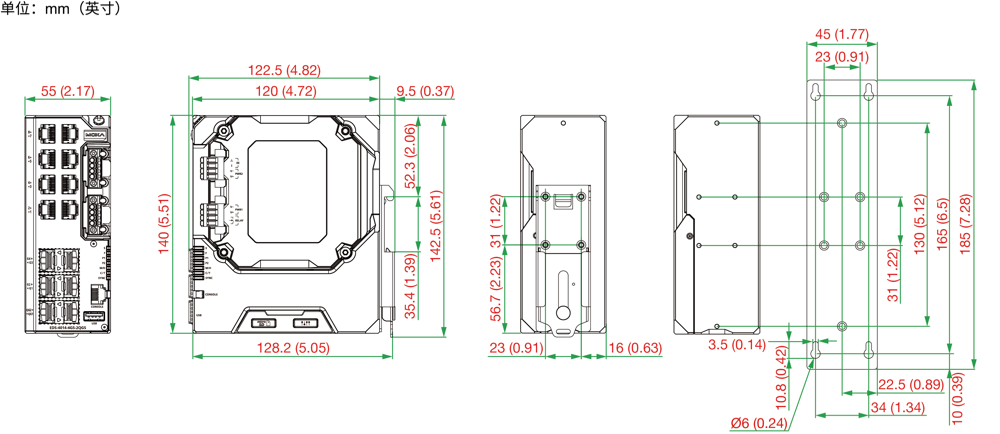

Dimensions

Software, Firmware & Drivers

File Name	Type	Version	Operating System	Release Date
EDS-4014-series-firmware-v4.1.rom	Firmware	v4.1	—	2024-06-26
EDS-4014-series-mib-package-v4.1.zip	Software Package	v4.1	—	2024-06-26
EDS-4014-series-eds-package-v1.0.zip	Software Package	v1.0	—	2024-04-24

Support Documents

File Name	Type	Version	Release Date

Ordering Information

Model	10/100BaseT(X)	100/1000BaseSFP	1000/2500BaseSFP	Operating Voltage	Power Module	Operating Temperature
EDS-4014-4GS-2QGS-LV	8	4	2	9.6 to 60 VDC	PWR-100-LV	-10 to 60°C
EDS-4014-4GS-2QGS-LV-T	8	4	2	9.6 to 60 VDC	PWR-100-LV	-40 to 75°C
EDS-4014-4GS-2QGS-HV	8	4	2	88-300 VDC, 85-264 VAC	PWR-105-HV-I	-10 to 60°C
EDS-4014-4GS-2QGS-HV-T	8	4	2	88-300 VDC, 85-264 VAC	PWR-105-HV-I	-40 to 75°C
