EDS-4012 Series
8+4G Port (with 8 802.3bt PoE Port Options) Managed Ethernet Switch
Features & Benefits
- Developed according to IEC 62443-4-1, compliant with IEC 62443-4-2
- IEEE 802.3bt PoE, up to 90 W per port
- Turbo Ring/Turbo Chain (< 20 ms), RSTP/STP/MSTP
- Multiple power input options
- Compact housing for narrow spaces
- MXstudio for visualized industrial network management
Certifications
The EDS-4012 Series is a 12-port managed Ethernet switch with 4 Gigabit fiber uplink ports and optional 802.3bt PoE (up to 90W/port). Turbo Ring, Turbo Chain and RSTP/STP redundancy. IEC 62443-4-2 and IEC 62443-4-1 certified for industrial cybersecurity.
- IEC 62443-4-1/4-2 certified
- IEEE 802.3bt PoE up to 90W
- 8 FE + 4 GE uplinks
- Turbo Ring < 20 ms
- Multiple power: LV/HV/PoE
- Compact metal IP40
- -40 to 75 C wide temp
- 5-year warranty
Ethernet Interface
| 10/100BaseT(X) Ports | EDS-4012-4GS/4GC: 8; EDS-4012-8P-4GS: 8 PoE ports |
|---|---|
| 100/1000BaseSFP Slots | 4 (4GS and 8P-4GS models) |
| Combo Ports (10/100/1000 or SFP) | 4 (4GC model) |
| PoE Standard | IEEE 802.3af/at/bt, up to 90 W per port |
| Standards | IEEE 802.3/802.3u/802.3ab/802.3z/802.3x/802.3ad/802.1Q/802.1D-2004/802.1w/802.1p/802.1X |
Ethernet Software Features
| Industrial Protocols | EtherNet/IP, Modbus TCP, PROFINET IO Device |
|---|---|
| Management | IPv4/IPv6, SNMPv1/v2c/v3, LLDP, Port Mirror (SPAN/RSPAN), DHCP, RMON, SMTP, TFTP, SFTP, HTTP, HTTPS, Telnet, Syslog, Private MIB, Fiber Monitoring |
| Redundancy | STP, RSTP, Turbo Ring v2, Turbo Chain, Ring Coupling, Dual Homing, Link Aggregation, MRP, MSTP |
| Security | Broadcast Storm Protection, Rate Limit, Trust Access Control, Port Lock, MAC Sticky, HTTPS/SSL, SSH, RADIUS, TACACS+, ACL, DHCP Snooping |
| Time Service | SNTP, NTP Server/Client, NTP Auth, Hardware IEEE 1588v2 PTP |
| Filter | GMRP, GVRP, GARP, 802.1Q VLAN, IGMP Snooping v1/v2/v3 |
| MIB | P-BRIDGE MIB, Q-BRIDGE MIB, IEEE8021-SPANNING-TREE-MIB, IEEE8021-PAE-MIB, IEEE8023-LAG-MIB, LLDP-EXT-DOT1/3-MIB, SNMPv2-MIB, RMON MIB Groups 1,2,3,9 |
Switch Properties
| MAC Table | 16K |
|---|---|
| Jumbo Frame | 9.216 KB |
| Max VLANs | 256 |
| IGMP Groups | 512 |
| Priority Queues | 4 |
| Packet Buffer | 1 MB |
Power Parameters
| Input Voltage | LV: 12/24/48 VDC redundant; HV: 110/220 VDC/VAC; PoE: 48 VDC redundant |
|---|---|
| Power Consumption | Non-PoE: 10.52-13.35 W; PoE: up to 240 W (PD total) |
| Max PoE per Port | 90 W (IEEE 802.3bt) |
Mechanical
| Housing/IP | Metal / IP40 |
|---|---|
| Weight | 827 g (1.82 lb) |
| Mounting | DIN-rail, wall (optional kit) |
Operating Environment
| Temperature | Standard: -10 to 60 C (14 to 140 F); Wide: -40 to 75 C (-40 to 167 F) |
|---|---|
| Storage Temperature | -40 to 85 C (-40 to 185 F) |
| Humidity | 5 to 95% (non-condensing) |
Certifications
| Cybersecurity | IEC 62443-4-1, IEC 62443-4-2 |
|---|---|
| Safety | UL 61010-2-201, EN 62368-1 (LVD) |
| EMC/EMI | EN 55032/35, EN 61000-6-2/-6-4, CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 (8/15 kV), IEC 61000-4-3 (20 V/m), IEC 61000-4-4/4-5 (4 kV), IEC 61000-4-6 (10 V), IEC 61000-4-8 |
| Marine | LV and PoE models: DNV, ABS, NK, LR |
| Railway/Traffic | EN 50121-4 / NEMA TS2 |
| Substation | IEC 61850-3, IEEE 1613 Class 1 |
MTBF
| 4GC-LV | 1,036,336 hours |
|---|---|
| 4GC-HV | 497,392 hours |
| 4GS-LV | 874,838 hours |
| 4GS-HV | 456,885 hours |
Warranty
| Period | 5 years |
|---|
Dimensions

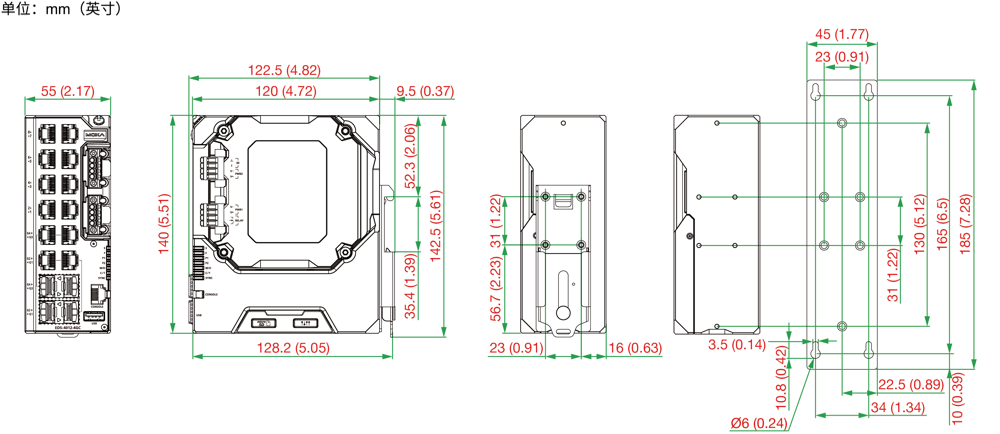

Dimensions
Software, Firmware & Drivers
| File Name | Type | Version | Operating System | Release Date |
|---|---|---|---|---|
| EDS-4012-series-firmware-v4.1.rom | Firmware | v4.1 | โ | 2024-06-26 |
| EDS-4012-series-mib-package-v4.1.zip | Software Package | v4.1 | โ | 2024-06-26 |
| EDS-4012-series-eds-package-v1.0.zip | Software Package | v1.0 | โ | 2024-04-24 |
Support Documents
| File Name | Type | Version | Release Date |
|---|
Related Content
๐
Application Guide
Building future-proof industrial network infrastructure
๐ฅ
Video
Witness the evolution of industrial networking with Moxa
๐
Application Note
Enhance network performance for IP surveillance systems
๐
Solution Brief
Strengthen network resilience for industrial control systems
Ordering
| Model | 10/100BaseT(X) | PoE Ports | SFP Slots | Combo Ports | PSU | Voltage | Temp |
|---|---|---|---|---|---|---|---|
| EDS-4012-4GS-LV | 8 | -- | 4 | -- | PWR-100-LV | 12/24/48 VDC | -10 to 60 C |
| EDS-4012-4GS-LV-T | 8 | -- | 4 | -- | PWR-100-LV | 12/24/48 VDC | -40 to 75 C |
| EDS-4012-4GS-HV | 8 | -- | 4 | -- | PWR-105-HV-I | 110/220 VAC/VDC | -10 to 60 C |
| EDS-4012-4GS-HV-T | 8 | -- | 4 | -- | PWR-105-HV-I | 110/220 VAC/VDC | -40 to 75 C |
| EDS-4012-4GC-LV | 8 | -- | -- | 4 | PWR-100-LV | 12/24/48 VDC | -10 to 60 C |
| EDS-4012-4GC-LV-T | 8 | -- | -- | 4 | PWR-100-LV | 12/24/48 VDC | -40 to 75 C |
| EDS-4012-4GC-HV | 8 | -- | -- | 4 | PWR-105-HV-I | 110/220 VAC/VDC | -10 to 60 C |
| EDS-4012-4GC-HV-T | 8 | -- | -- | 4 | PWR-105-HV-I | 110/220 VAC/VDC | -40 to 75 C |
| EDS-4012-8P-4GS-LVA | -- | 8 (PoE) | 4 | -- | PWR-101-LV-BP-I | 48 VDC | -10 to 60 C |
| EDS-4012-8P-4GS-LVA-T | -- | 8 (PoE) | 4 | -- | PWR-101-LV-BP-I | 48 VDC | -40 to 75 C |
| EDS-4012-8P-4GS-LVB | -- | 8 (PoE) | 4 | -- | PWR-103-LV-VB-I | 12/24/48 VDC | -10 to 60 C |
| EDS-4012-8P-4GS-LVB-T | -- | 8 (PoE) | 4 | -- | PWR-103-LV-VB-I | 12/24/48 VDC | -40 to 75 C |
