EDS-4009 Series
9-Port Managed Ethernet Switch (6 FE + 3 Fiber)
Features & Benefits
- IEC 62443-4-1/4-2 cybersecurity certified
- Turbo Ring/Turbo Chain < 20 ms
- 6 FE + 3 fiber ports (SC/ST, multi/single)
- Multiple power: LV/HV options
- Compact design
Certifications
EDS-4009 is a 9-port managed switch with 6 FE + 3 fiber ports. IEC 62443-4-1/4-2 certified. Turbo Ring redundancy. Multi-power options.
- 6 FE + 3 fiber
- IEC 62443 certified
- Turbo Ring < 20 ms
- Multiple power inputs
- MXstudio
- Compact design
- DIN-rail
- -40 to 75 C
Ethernet Interface
| 10/100BaseT(X) | 6 x RJ45 |
|---|---|
| 100BaseFX | 3 (3MSC/3MST/3SSC: multi or single SC/ST) |
| Standards | IEEE 802.3, 802.3u, 802.3x, 802.3ad, 802.1Q, 802.1D-2004, 802.1w |
Software
| Redundancy | Turbo Ring, Turbo Chain, RSTP, STP |
|---|---|
| Protocols | EtherNet/IP, Modbus TCP, PROFINET IO Device |
| Security | IEC 62443-4-2, HTTPS/SSL, SSH, RADIUS, TACACS+, ACL |
Power
| Input | LV: 12/24/48 VDC redundant; HV: 110/220 VAC/VDC |
|---|
Mechanical
| Housing/IP | Metal / IP40 |
|---|
Operating Environment
| Temperature | Standard: -10 to 60 C (14 to 140 F); Wide: -40 to 75 C (-40 to 167 F) |
|---|
Warranty
| Period | 5 years |
|---|

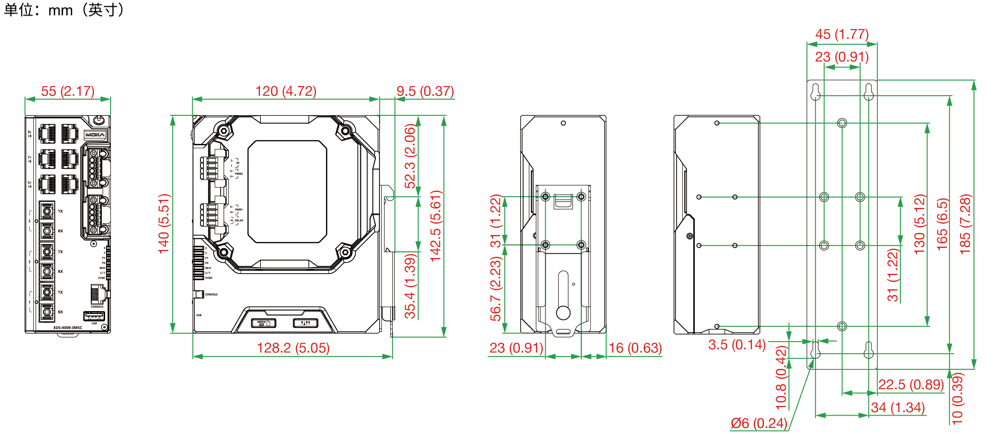

Dimensions
Software, Firmware & Drivers
| File Name | Type | Version | Operating System | Release Date |
|---|---|---|---|---|
| EDS-4009-series-firmware-v4.1.rom | Firmware | v4.1 | โ | 2024-06-26 |
| EDS-4009-series-mib-package-v4.1.zip | Software Package | v4.1 | โ | 2024-06-26 |
| EDS-4009-series-eds-package-v1.0.zip | Software Package | v1.0 | โ | 2024-04-24 |
Support Documents
| File Name | Type | Version | Release Date |
|---|
Related Content
๐
Application Guide
Building future-proof industrial network infrastructure
๐ฅ
Video
Witness the evolution of industrial networking with Moxa
๐
Application Note
Enhance network performance for IP surveillance systems
๐
Solution Brief
Strengthen network resilience for industrial control systems
Ordering
| Model | FE | Fiber (3x) | PSU | Temp |
|---|---|---|---|---|
| EDS-4009-3MSC-LV | 6 | 3 multi SC | PWR-100-LV | -40 to 75 C |
| EDS-4009-3MSC-HV | 6 | 3 multi SC | PWR-105-HV-I | -40 to 75 C |
| EDS-4009-3MST-LV | 6 | 3 multi ST | PWR-100-LV | -40 to 75 C |
| EDS-4009-3SSC-LV | 6 | 3 single SC | PWR-100-LV | -40 to 75 C |
