EDS-4008 Series
8-Port Managed Ethernet Switch (4 PoE 802.3bt or 4 Gigabit Uplink)
Features & Benefits
- IEC 62443-4-1/4-2 cybersecurity certified
- IEEE 802.3bt PoE up to 90W per port
- Turbo Ring/Turbo Chain < 20 ms
- 4 Gigabit uplinks or 2 fiber ports options
- Multiple power input: LV/HV/PoE
- Compact design for narrow spaces
Certifications
EDS-4008 is an 8-port managed switch with optional 4 GE uplinks or 2 fiber ports. IEEE 802.3bt PoE up to 90W. IEC 62443-4-1/4-2 certified. Turbo Ring redundancy.
- 8 FE + 4 GE uplinks or 2 fiber
- 802.3bt PoE up to 90W
- IEC 62443 certified
- Turbo Ring < 20 ms
- Multiple power options
- Compact design
- MXstudio
- -40 to 75 C
Ethernet Interface
| 10/100BaseT(X) | EDS-4008: 8; Fiber models: 6; 2GT-2GS/4P-2GT-2GS: 4 |
|---|---|
| PoE Ports (802.3bt) | 4 (4P-2GT-2GS models); up to 90W/port |
| Gigabit Uplinks | 2GT-2GS: 2 GE + 2 SFP; 4P-2GT-2GS: 2 GE + 2 SFP |
| 100BaseFX | 2MSC/2MST: 2 multi; 2SSC: 2 single |
Software
| Redundancy | Turbo Ring, Turbo Chain, RSTP, STP |
|---|---|
| Protocols | EtherNet/IP, Modbus TCP, PROFINET IO Device |
| Security | IEC 62443-4-2, HTTPS/SSL, SSH, RADIUS, TACACS+, ACL |
Power
| Input | LV: 12/24/48 VDC; HV: 110/220 VAC/VDC; PoE: 48-57 VDC |
|---|---|
| PoE Budget | Up to 240W (PD total) |
Mechanical
| Housing/IP | Metal / IP40 |
|---|
Operating Environment
| Temperature | Standard: -10 to 60 C (14 to 140 F); Wide: -40 to 75 C (-40 to 167 F) |
|---|
Warranty
| Period | 5 years |
|---|

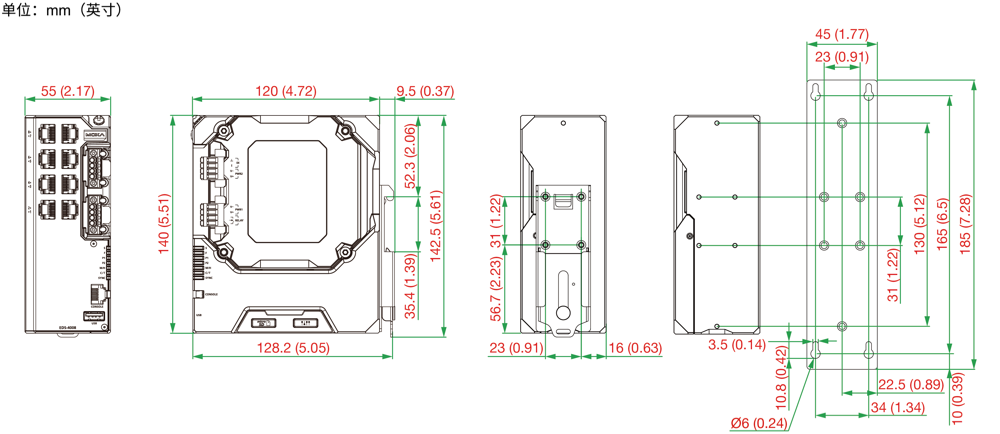

Dimensions
Software, Firmware & Drivers
| File Name | Type | Version | Operating System | Release Date |
|---|---|---|---|---|
| EDS-4008-series-firmware-v4.1.rom | Firmware | v4.1 | โ | 2024-06-26 |
| EDS-4008-series-mib-package-v4.1.zip | Software Package | v4.1 | โ | 2024-06-26 |
| EDS-4008-series-eds-package-v1.0.zip | Software Package | v1.0 | โ | 2024-04-24 |
Support Documents
| File Name | Type | Version | Release Date |
|---|
Related Content
๐
Application Guide
Building future-proof industrial network infrastructure
๐ฅ
Video
Witness the evolution of industrial networking with Moxa
๐
Application Note
Enhance network performance for IP surveillance systems
๐
Solution Brief
Strengthen network resilience for industrial control systems
Ordering
| Model | FE | PoE | Uplink | Fiber | PSU | Temp |
|---|---|---|---|---|---|---|
| EDS-4008-LV | 8 | -- | -- | -- | PWR-100-LV | -10 to 60 C |
| EDS-4008-HV | 8 | -- | -- | -- | PWR-105-HV-I | -10 to 60 C |
| EDS-4008-2MSC | 6 | -- | -- | 2 multi SC | LV/HV | -40 to 75 C |
| EDS-4008-2MST | 6 | -- | -- | 2 multi ST | LV/HV | -40 to 75 C |
| EDS-4008-2SSC | 6 | -- | -- | 2 single SC | LV/HV | -40 to 75 C |
| EDS-4008-2GT-2GS | 4 | -- | 2 GE + 2 SFP | -- | LV/HV | -40 to 75 C |
| EDS-4008-4P-2GT-2GS-LVA | -- | 4 PoE | 2 GE + 2 SFP | -- | 48 VDC | -10 to 60 C |
| EDS-4008-4P-2GT-2GS-LVB | -- | 4 PoE | 2 GE + 2 SFP | -- | 12-48 VDC | -10 to 60 C |
