EDS-316 Series
16-Port Unmanaged Industrial Ethernet Switch with Relay Alarm
Features & Benefits
- 16 FE + up to 2 fiber ports
- Relay alarm for power/port failure
- Redundant dual power
- Broadcast storm protection
- -40 to 75 C wide temp
- DIP switch alarm
- 100% burn-in tested
Certifications
EDS-316 is a 16-port unmanaged switch with relay alarm. Up to 2 fiber ports (multi/single mode, 80km). Redundant dual power, broadcast storm protection.
- 16 FE + up to 2 fiber
- Relay alarm
- Redundant dual power
- Broadcast storm protection
- DIN-rail
- -40 to 75 C
- IP30 metal
- 100% burn-in
Ethernet Interface
| 10/100BaseT(X) | 16 (base); 15 (1-fiber); 14 (2-fiber) |
|---|---|
| 100BaseFX | M-SC/M-ST/S-SC/MS-SC: 1; MM-SC/MM-ST/SS-SC: 2; SS-SC-80: 2 single 80km |
Switch Properties
| Packet Buffer | 1.25 Mb |
|---|
I/O
| Alarm | 1 relay, 1 A @ 24 VDC |
|---|
Power
| Input | 12/24/48 VDC redundant dual |
|---|
Mechanical
| Housing/IP | Metal / IP30 |
|---|---|
| Mounting | DIN-rail, wall (optional) |
Operating Environment
| Temperature | Standard: -10 to 60 C (14 to 140 F); Wide: -40 to 75 C (-40 to 167 F) |
|---|---|
| Storage | -40 to 85 C |
| Humidity | 5 to 95% |
Warranty
| Period | 5 years |
|---|

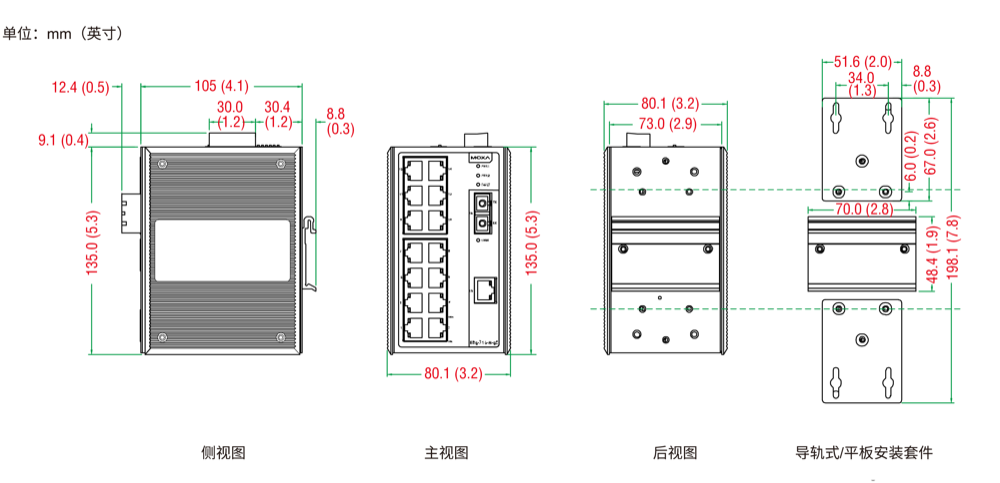

Dimensions
Software, Firmware & Drivers
| File Name | Type | Version | Operating System | Release Date |
|---|---|---|---|---|
| EDS-316-series-firmware-v4.1.rom | Firmware | v4.1 | โ | 2024-06-26 |
| EDS-316-series-mib-package-v4.1.zip | Software Package | v4.1 | โ | 2024-06-26 |
| EDS-316-series-eds-package-v1.0.zip | Software Package | v1.0 | โ | 2024-04-24 |
Support Documents
| File Name | Type | Version | Release Date |
|---|
Related Content
๐
Application Guide
Building future-proof industrial network infrastructure
๐ฅ
Video
Witness the evolution of industrial networking with Moxa
๐
Application Note
Enhance network performance for IP surveillance systems
๐
Solution Brief
Strengthen network resilience for industrial control systems
Ordering
| Model | 10/100BaseT(X) | 100BaseFX | Temp |
|---|---|---|---|
| EDS-316 | 16 | -- | -10 to 60 C |
| EDS-316-T | 16 | -- | -40 to 75 C |
| EDS-316-M-SC | 15 | 1 multi SC | -40 to 75 C |
| EDS-316-M-ST | 15 | 1 multi ST | -40 to 75 C |
| EDS-316-MM-SC | 14 | 2 multi SC | -40 to 75 C |
| EDS-316-MM-ST | 14 | 2 multi ST | -40 to 75 C |
| EDS-316-S-SC | 15 | 1 single SC | -40 to 75 C |
| EDS-316-MS-SC | 14 | 1-2 multi/single | -40 to 75 C |
| EDS-316-SS-SC | 14 | 2 single SC | -40 to 75 C |
| EDS-316-SS-SC-80 | 14 | 2 single 80km | 0 to 60 C |
