EDS-309 Series
9-Port Unmanaged Industrial Ethernet Switch (6 FE + 3 Fiber)
Features & Benefits
- 6 FE + 3 x 100BaseFX fiber ports
- Relay alarm for power failure/port break
- Redundant 12/24/48 VDC dual power
- Broadcast storm protection
- -40 to 75 C wide temp (T models)
- DIP switch alarm control
Certifications
EDS-309 is a 9-port unmanaged switch with 6 FE + 3 fiber ports. Relay alarm for power/port failure. Redundant dual power. Store-and-forward, broadcast storm protection.
- 6 FE + 3 fiber
- Relay alarm
- Redundant dual power
- Broadcast storm protection
- DIN-rail
- -40 to 75 C
- IP30 metal
- 100% burn-in
Ethernet Interface
| 10/100BaseT(X) | 6 x RJ45 |
|---|---|
| 100BaseFX (Multi SC) | 3 (EDS-309-3M-SC) |
| 100BaseFX (Multi ST) | 3 (EDS-309-3M-ST) |
| Standards | IEEE 802.3, 802.3u, 802.3x |
Switch Properties
| Type | Store-and-forward |
|---|---|
| MAC Table | 1K |
| Packet Buffer | 512 kb |
I/O
| Alarm | 1 relay, 1 A @ 24 VDC |
|---|
DIP Switch
| Alarm | Port break alarm control |
|---|
Power
| Input | 12/24/48 VDC redundant dual (9.6 to 60 VDC) |
|---|---|
| Current | 0.26 A @ 24 VDC |
| Protection | Overload / Reverse polarity |
Mechanical
| Housing/IP | Metal / IP30 |
|---|---|
| Dimensions | 53.6 x 135 x 105 mm |
| Weight | 790 g (1.75 lb) |
| Mounting | DIN-rail, wall (optional) |
Operating Environment
| Temperature | Standard: -10 to 60 C (14 to 140 F); Wide: -40 to 75 C (-40 to 167 F) |
|---|---|
| Storage | -40 to 85 C |
| Humidity | 5 to 95% |
Certifications
| Safety | UL 508, UL 60950-1, CSA C22.2 |
|---|---|
| EMC/EMI | EN 55032/24, CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2/3/4/5/6/8 |
MTBF
| Time | 396,595 hours |
|---|---|
| Standard | MIL-HDBK-217F |
Warranty
| Period | 5 years |
|---|

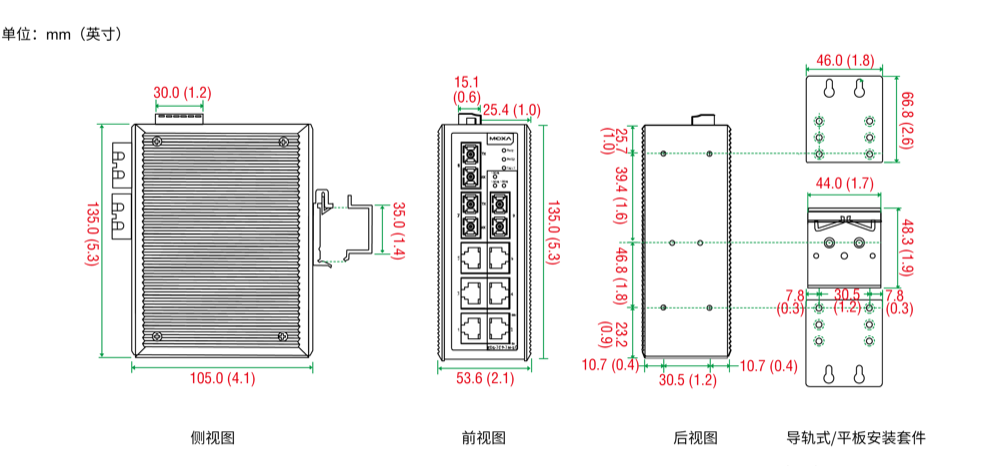

Dimensions
Software, Firmware & Drivers
| File Name | Type | Version | Operating System | Release Date |
|---|---|---|---|---|
| EDS-309-series-firmware-v4.1.rom | Firmware | v4.1 | โ | 2024-06-26 |
| EDS-309-series-mib-package-v4.1.zip | Software Package | v4.1 | โ | 2024-06-26 |
| EDS-309-series-eds-package-v1.0.zip | Software Package | v1.0 | โ | 2024-04-24 |
Support Documents
| File Name | Type | Version | Release Date |
|---|
Related Content
๐
Application Guide
Building future-proof industrial network infrastructure
๐ฅ
Video
Witness the evolution of industrial networking with Moxa
๐
Application Note
Enhance network performance for IP surveillance systems
๐
Solution Brief
Strengthen network resilience for industrial control systems
Ordering
| Model | 10/100BaseT(X) | 100BaseFX | Temp |
|---|---|---|---|
| EDS-309 | 6 | -- | -10 to 60 C |
| EDS-309-T | 6 | -- | -40 to 75 C |
| EDS-309-3M-SC | 6 | 3 multi SC | -40 to 75 C |
| EDS-309-3M-ST | 6 | 3 multi ST | -40 to 75 C |
