EDS-308 Series
8-Port Unmanaged Industrial Ethernet Switch with Relay Alarm
Features & Benefits
- Relay alarm for power failure/port break
- Broadcast storm protection
- Up to 2 fiber ports (SC/ST, multi/single mode, 80km)
- Redundant 24 VDC dual power
- -40 to 75 C wide temp
- 100% burn-in tested
Certifications
EDS-308 is an 8-port unmanaged switch with relay alarm output. Up to 2 fiber ports (multi/single mode, 80km). Store-and-forward, broadcast storm protection, redundant power.
- 8 FE + up to 2 fiber
- Relay alarm
- Broadcast storm protection
- Redundant dual power
- DIN-rail
- -40 to 75 C
- 100% burn-in
- 5-year warranty
Ethernet Interface
| 10/100BaseT(X) | 8 (base); 7 (1-fiber models); 6 (2-fiber models) |
|---|---|
| 100BaseFX | M-SC/M-ST: 1 multi; S-SC: 1 single; MM-SC/MM-ST: 2 multi; SS-SC: 2 single; S-SC-80/SS-SC-80: 1/2 single 80km |
| Standards | IEEE 802.3, 802.3u, 802.3x |
Fiber Optics
| Multi-mode | 50/125um OM1, 4-5km, 1300nm |
|---|---|
| Single-mode (40km) | G.652, 40km, 1310nm |
| Single-mode (80km) | G.652, 80km, 1550nm |
Switch Properties
| MAC Table | 2K |
|---|
I/O
| Alarm | 1 relay, 1 A @ 24 VDC |
|---|
Power
| Input | 24 VDC redundant dual (12 to 48 VDC) |
|---|
Mechanical
| Housing/IP | Metal / IP30 |
|---|---|
| Mounting | DIN-rail |
Operating Environment
| Temperature | Standard: -10 to 60 C (14 to 140 F); Wide: -40 to 75 C (-40 to 167 F) |
|---|---|
| Storage | -40 to 85 C |
| Humidity | 5 to 95% |
Warranty
| Period | 5 years |
|---|

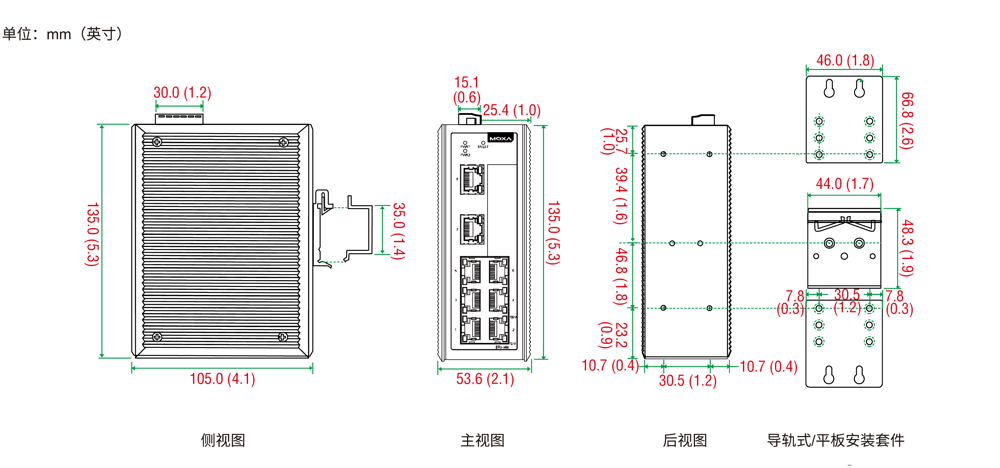

Dimensions
Software, Firmware & Drivers
| File Name | Type | Version | Operating System | Release Date |
|---|---|---|---|---|
| EDS-308-series-firmware-v4.1.rom | Firmware | v4.1 | โ | 2024-06-26 |
| EDS-308-series-mib-package-v4.1.zip | Software Package | v4.1 | โ | 2024-06-26 |
| EDS-308-series-eds-package-v1.0.zip | Software Package | v1.0 | โ | 2024-04-24 |
Support Documents
| File Name | Type | Version | Release Date |
|---|
Related Content
๐
Application Guide
Building future-proof industrial network infrastructure
๐ฅ
Video
Witness the evolution of industrial networking with Moxa
๐
Application Note
Enhance network performance for IP surveillance systems
๐
Solution Brief
Strengthen network resilience for industrial control systems
Ordering
| Model | 10/100BaseT(X) | 100BaseFX | Temp |
|---|---|---|---|
| EDS-308 | 8 | -- | -10 to 60 C |
| EDS-308-T | 8 | -- | -40 to 75 C |
| EDS-308-M-SC | 7 | 1 multi SC | -40 to 75 C |
| EDS-308-M-ST | 7 | 1 multi ST | -40 to 75 C |
| EDS-308-S-SC | 7 | 1 single SC | -40 to 75 C |
| EDS-308-S-SC-80 | 7 | 1 single 80km | 0 to 60 C |
| EDS-308-MM-SC | 6 | 2 multi SC | -40 to 75 C |
| EDS-308-MM-ST | 6 | 2 multi ST | -40 to 75 C |
| EDS-308-SS-SC | 6 | 2 single SC | -40 to 75 C |
| EDS-308-SS-SC-80 | 6 | 2 single 80km | 0 to 60 C |
