EDS-205A Series
5-Port Unmanaged Industrial Ethernet Switch with Fiber
Features & Benefits
- 5 FE ports with optional 100BaseFX fiber
- Redundant 12/24/48 VDC dual power
- IP30 aluminum housing
- NEMA TS2/EN 50121-4/DNV marine certified
- -40 to 75 C wide temp (T models)
- DIP switch for broadcast storm protection
Certifications
EDS-205A Series 5-port unmanaged switch with optional fiber (SC/ST, multi/single mode). Redundant dual 12/24/48 VDC power. Certified for maritime (DNV), railway (EN 50121-4), traffic (NEMA TS2), and mobile applications (e-Mark).
- 5 x 10/100BaseT(X) + optional fiber
- Redundant dual power
- IP30 aluminum housing
- Broadcast storm protection
- NEMA TS2 / EN 50121-4
- DNV marine
- e-Mark mobile
- -40 to 75 C wide temp
Ethernet Interface
| 10/100BaseT(X) Ports | EDS-205A: 5; Fiber models: 4 |
|---|---|
| 100BaseFX Ports | M-SC: 1 multi SC; M-ST: 1 multi ST; S-SC: 1 single SC |
| Standards | IEEE 802.3, 802.3u, 802.3x |
Fiber Optics
| Multi-mode | 50/125um OM1, 4-5km, 1300nm |
|---|---|
| Single-mode | G.652, 40km, 1310nm |
| TX Power | MM: -10 to -20 dBm; SM: 0 to -5 dBm |
| RX Sensitivity | MM: -3 to -32 dBm; SM: -3 to -34 dBm |
| Link Budget | MM: 12 dB; SM: 29 dB |
Switch Properties
| Type | Store-and-forward |
|---|---|
| MAC Table | 1K |
| Packet Buffer | 384 kb |
Power
| Input | 12/24/48 VDC redundant dual (9.6 to 60 VDC range) |
|---|---|
| Protection | DIP switch for broadcast storm |
Mechanical
| Housing/IP | Aluminum / IP30 |
|---|---|
| Weight | 210 g (0.46 lb) |
| Mounting | DIN-rail |
Operating Environment
| Temperature | Standard: -10 to 60 C (14 to 140 F); Wide: -40 to 75 C (-40 to 167 F) |
|---|---|
| Storage | -40 to 85 C |
| Humidity | 5 to 95% |
Certifications
| Safety | UL, CE, FCC |
|---|---|
| Traffic | NEMA TS2 |
| Railway | EN 50121-4 |
| Marine | DNV, GL, LR, ABS, NK |
| Mobile | e-Mark |
Warranty
| Period | 5 years |
|---|

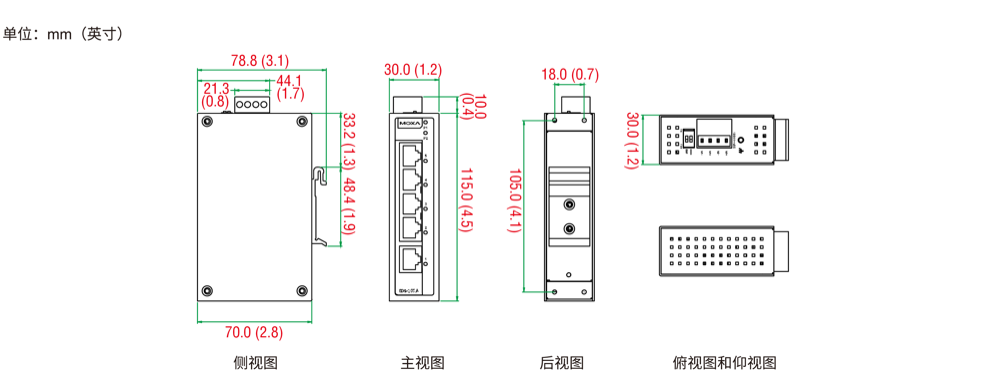

Dimensions
Software, Firmware & Drivers
| File Name | Type | Version | Operating System | Release Date |
|---|---|---|---|---|
| EDS-205A-series-firmware-v4.1.rom | Firmware | v4.1 | โ | 2024-06-26 |
| EDS-205A-series-mib-package-v4.1.zip | Software Package | v4.1 | โ | 2024-06-26 |
| EDS-205A-series-eds-package-v1.0.zip | Software Package | v1.0 | โ | 2024-04-24 |
Support Documents
| File Name | Type | Version | Release Date |
|---|
Related Content
๐
Application Guide
Building future-proof industrial network infrastructure
๐ฅ
Video
Witness the evolution of industrial networking with Moxa
๐
Application Note
Enhance network performance for IP surveillance systems
๐
Solution Brief
Strengthen network resilience for industrial control systems
Ordering
| Model | 10/100BaseT(X) | 100BaseFX | Housing | Temp |
|---|---|---|---|---|
| EDS-205A | 5 | -- | Aluminum | -10 to 60 C |
| EDS-205A-T | 5 | -- | Aluminum | -40 to 75 C |
| EDS-205A-M-SC | 4 | 1 multi SC | Aluminum | -40 to 75 C |
| EDS-205A-M-ST | 4 | 1 multi ST | Aluminum | -40 to 75 C |
| EDS-205A-S-SC | 4 | 1 single SC | Aluminum | -40 to 75 C |
