EDS-205 Series
5-Port Entry-Level Unmanaged Industrial Ethernet Switch
Features & Benefits
- 5 x 10/100BaseT(X) RJ45 ports
- Broadcast storm protection
- DIN-rail mountable
- -10 to 60 C operating temperature
- IP30 plastic housing
Certifications
EDS-205 is a 5-port entry-level industrial unmanaged Ethernet switch. IEEE 802.3/802.3u/802.3x. Store-and-forward switching. IP30 housing, DIN-rail mountable.
- 5 x 10/100BaseT(X)
- Broadcast storm protection
- Store-and-forward
- IP30 housing
- DIN-rail mountable
- LED indicators
- Cost-effective
- -10 to 60 C
Ethernet Interface
| Ports | 5 x 10/100BaseT(X) (RJ45), auto MDI/MDI-X |
|---|---|
| Standards | IEEE 802.3, 802.3u, 802.3x |
Switch Properties
| Type | Store-and-forward |
|---|---|
| MAC Table | 1K |
| Packet Buffer | 512 kb |
Power
| Input | 24 VDC (12 to 48 VDC range) |
|---|---|
| Input Current | 0.11 A @ 24 VDC |
| Protection | Overload 1.1 A / Reverse polarity |
Mechanical
| Housing/IP | Plastic / IP30 |
|---|---|
| Dimensions | 24.9 x 100 x 86.5 mm |
| Weight | 135 g (0.30 lb) |
| Mounting | DIN-rail |
Operating Environment
| Temperature | -10 to 60 C (14 to 140 F) |
|---|---|
| Storage | -40 to 85 C (-40 to 185 F) |
| Humidity | 5 to 95% |
Certifications
| Safety | EN 60950-1, UL 508 |
|---|---|
| EMC/EMI | EN 55032/24, CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2/3/4/5/6/8 |
MTBF
| Time | 3,915,945 hours |
|---|
Warranty
| Period | 5 years |
|---|

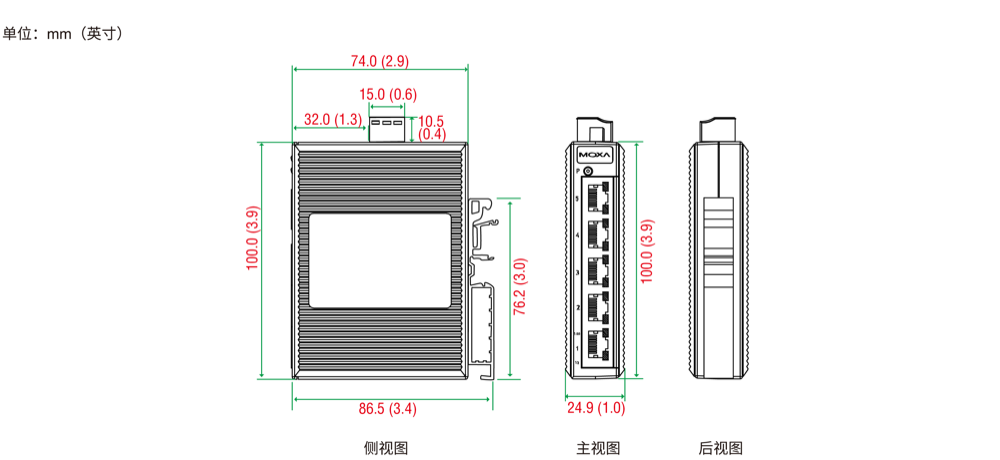

Dimensions
Software, Firmware & Drivers
| File Name | Type | Version | Operating System | Release Date |
|---|---|---|---|---|
| EDS-205-series-firmware-v4.1.rom | Firmware | v4.1 | โ | 2024-06-26 |
| EDS-205-series-mib-package-v4.1.zip | Software Package | v4.1 | โ | 2024-06-26 |
| EDS-205-series-eds-package-v1.0.zip | Software Package | v1.0 | โ | 2024-04-24 |
Support Documents
| File Name | Type | Version | Release Date |
|---|
Related Content
๐
Application Guide
Building future-proof industrial network infrastructure
๐ฅ
Video
Witness the evolution of industrial networking with Moxa
๐
Application Note
Enhance network performance for IP surveillance systems
๐
Solution Brief
Strengthen network resilience for industrial control systems
Ordering
| Model | Ports | Housing | Voltage | Temp |
|---|---|---|---|---|
| EDS-205 | 5 x 10/100BaseT(X) | Plastic | 12-48 VDC | -10 to 60 C |
