EDS-2018-ML Series

16+2G-Port Gigabit Unmanaged Industrial Ethernet Switch

Features & Benefits

16 FE + 2 Combo Gigabit ports (RJ45/SFP+)
Relay alarm for power/port failure
Redundant 12/24/48 VDC dual power
QoS + BSP + Port alarm (DIP switch)
-40 to 75 C wide temp
IP30 metal housing

Certifications

EDS-2018-ML is a 16+2G unmanaged switch with relay alarm and redundant power. 2 combo Gigabit ports for uplink. QoS/BSP/alarm DIP switch.

16 FE + 2 Combo Gigabit
Relay alarm
Redundant dual power
QoS/BSP/Alarm DIP

IP30 metal
DIN-rail
-40 to 75 C
5-year warranty

Ethernet Interface

FE	16 x RJ45
Combo Gigabit	2 (GE RJ45 or SFP+)
Standards	IEEE 802.3/802.3u/802.3ab/802.3z/802.3x/802.1p

Switch Properties

MAC Table	8K
Packet Buffer	4 Mb

DIP Switch

Functions	QoS, BSP, Port Break Alarm

I/O

Alarm	1 relay

Power

Input	12/24/48 VDC redundant dual

Mechanical

Housing/IP	Metal / IP30
Mounting	DIN-rail

Operating Environment

Temperature	Standard: -10 to 60 C (14 to 140 F); Wide: -40 to 75 C (-40 to 167 F)

Warranty

Period	5 years

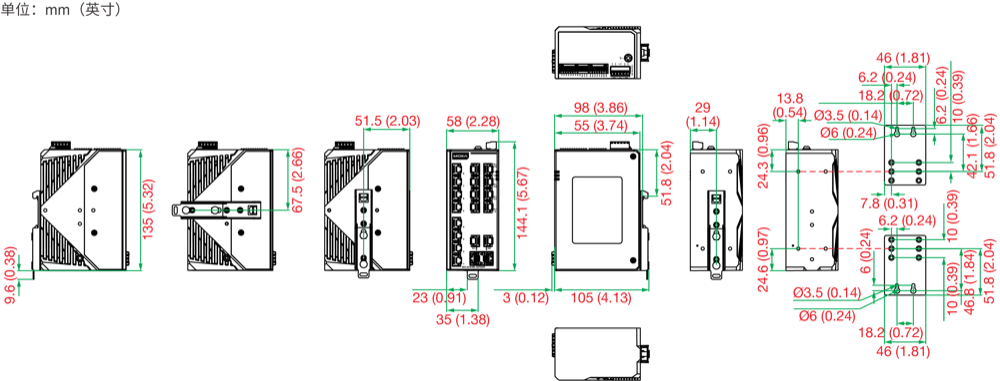

Dimensions

Software, Firmware & Drivers

File Name	Type	Version	Operating System	Release Date
EDS-2018-ML-series-firmware-v4.1.rom	Firmware	v4.1	—	2024-06-26
EDS-2018-ML-series-mib-package-v4.1.zip	Software Package	v4.1	—	2024-06-26
EDS-2018-ML-series-eds-package-v1.0.zip	Software Package	v1.0	—	2024-04-24

Support Documents

File Name	Type	Version	Release Date

Ordering

Model	FE	Combo Gigabit	Temp
EDS-2018-ML	16	2	-10 to 60 C
EDS-2018-ML-T	16	2	-40 to 75 C
