EDS-2016-ML Series
16-Port Unmanaged Industrial Ethernet Switch with Fiber
Features & Benefits
- 16 FE + up to 2 fiber ports
- Relay alarm for power/port failure
- Redundant 12/24/48 VDC dual power
- QoS + BSP + Port alarm (DIP switch)
- -40 to 75 C wide temp
- IP30 metal housing
Certifications
EDS-2016-ML is a 16-port unmanaged switch with up to 2 fiber ports, relay alarm, and redundant power. QoS/BSP/alarm DIP switch.
- 16 FE + up to 2 fiber
- Relay alarm
- Redundant dual power
- QoS/BSP/Alarm DIP
- IP30 metal
- DIN-rail
- 100% burn-in
- -40 to 75 C
Ethernet Interface
| 10/100BaseT(X) | 16 (base); 14 (2-fiber models) |
|---|---|
| 100BaseFX | MM-SC/MM-ST: 2 multi; SS-SC: 2 single |
| Standards | IEEE 802.3, 802.3u, 802.3x, 802.1p |
Switch Properties
| MAC Table | 8K |
|---|
DIP Switch
| Functions | QoS, Broadcast Storm Protection, Port Break Alarm |
|---|
I/O
| Alarm | 1 relay |
|---|
Power
| Input | 12/24/48 VDC redundant dual |
|---|
Mechanical
| Housing/IP | Metal / IP30 |
|---|---|
| Mounting | DIN-rail |
Operating Environment
| Temperature | Standard: -10 to 60 C (14 to 140 F); Wide: -40 to 75 C (-40 to 167 F) |
|---|
Warranty
| Period | 5 years |
|---|

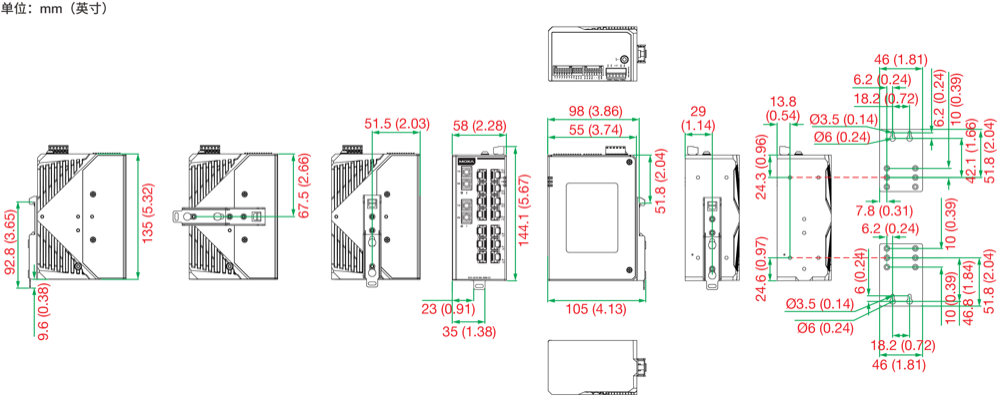

Dimensions
Software, Firmware & Drivers
| File Name | Type | Version | Operating System | Release Date |
|---|---|---|---|---|
| EDS-2016-ML-series-firmware-v4.1.rom | Firmware | v4.1 | โ | 2024-06-26 |
| EDS-2016-ML-series-mib-package-v4.1.zip | Software Package | v4.1 | โ | 2024-06-26 |
| EDS-2016-ML-series-eds-package-v1.0.zip | Software Package | v1.0 | โ | 2024-04-24 |
Support Documents
| File Name | Type | Version | Release Date |
|---|
Related Content
๐
Application Guide
Building future-proof industrial network infrastructure
๐ฅ
Video
Witness the evolution of industrial networking with Moxa
๐
Application Note
Enhance network performance for IP surveillance systems
๐
Solution Brief
Strengthen network resilience for industrial control systems
Ordering
| Model | FE | Fiber | Temp |
|---|---|---|---|
| EDS-2016-ML | 16 | -- | -10 to 60 C |
| EDS-2016-ML-T | 16 | -- | -40 to 75 C |
| EDS-2016-ML-MM-SC | 14 | 2 multi SC | -40 to 75 C |
| EDS-2016-ML-MM-ST | 14 | 2 multi ST | -40 to 75 C |
| EDS-2016-ML-SS-SC | 14 | 2 single SC | -40 to 75 C |
