EDS-2008-ELP Series
8-Port Entry-Level Unmanaged Ethernet Switch with Plastic Housing
Features & Benefits
- 8 x 10/100BaseT(X) RJ45
- QoS + Broadcast Storm Protection (DIP switch)
- Plastic housing IP40
- PROFINET CC-A compliant
- Compact DIN-rail design
Certifications
EDS-2008-ELP is an 8-port unmanaged switch with plastic housing. DIP switch for QoS/BSP. PROFINET CC-A compliant.
- 8 FE
- QoS + BSP DIP
- Plastic IP40
- PROFINET CC-A
- DIN-rail
- Compact
- 100% burn-in
- -10 to 60 C
Ethernet Interface
| Ports | 8 x 10/100BaseT(X) (RJ45) |
|---|---|
| Standards | IEEE 802.3, 802.3u, 802.3x, 802.1p |
Switch Properties
| MAC Table | 2K |
|---|---|
| Packet Buffer | 768 kb |
DIP Switch
| Functions | QoS, Broadcast Storm Protection |
|---|
Power
| Input | 12-48 VDC (9.6 to 60 VDC range) |
|---|---|
| Current | 0.057 A @ 24 VDC |
| Protection | Overload / Reverse polarity |
Mechanical
| Housing/IP | Plastic / IP40 |
|---|---|
| Mounting | DIN-rail |
Operating Environment
| Temperature | -10 to 60 C (14 to 140 F) |
|---|
Warranty
| Period | 5 years |
|---|

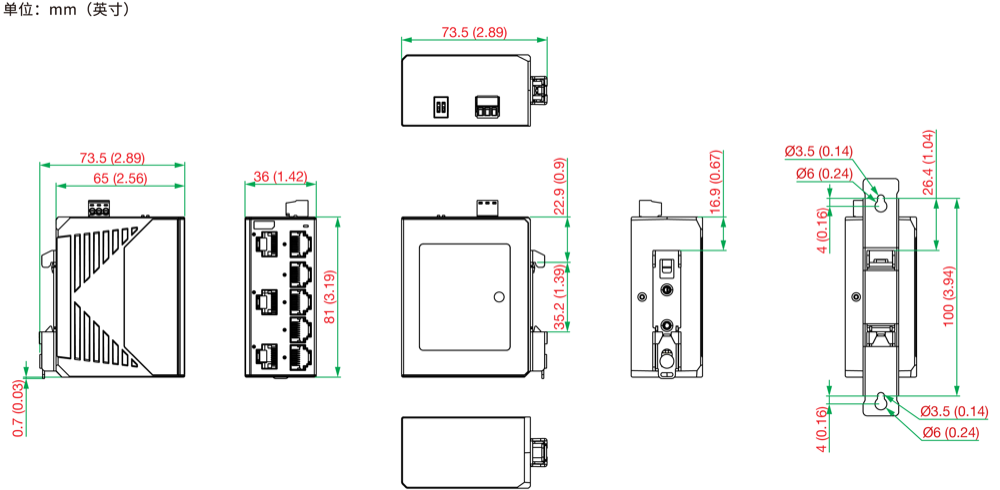

Dimensions
Software, Firmware & Drivers
| File Name | Type | Version | Operating System | Release Date |
|---|---|---|---|---|
| EDS-2008-ELP-series-firmware-v4.1.rom | Firmware | v4.1 | โ | 2024-06-26 |
| EDS-2008-ELP-series-mib-package-v4.1.zip | Software Package | v4.1 | โ | 2024-06-26 |
| EDS-2008-ELP-series-eds-package-v1.0.zip | Software Package | v1.0 | โ | 2024-04-24 |
Support Documents
| File Name | Type | Version | Release Date |
|---|
Related Content
๐
Application Guide
Building future-proof industrial network infrastructure
๐ฅ
Video
Witness the evolution of industrial networking with Moxa
๐
Application Note
Enhance network performance for IP surveillance systems
๐
Solution Brief
Strengthen network resilience for industrial control systems
Ordering
| Model | Ports | Temp |
|---|---|---|
| EDS-2008-ELP | 8 | -10 to 60 C |
