EDS-2008-EL Series
8-Port Entry-Level Unmanaged Ethernet Switch with Metal Housing
Features & Benefits
- 8 x 10/100BaseT(X) + optional 100BaseFX fiber
- QoS + Broadcast Storm Protection (DIP switch)
- Metal housing IP40
- PROFINET CC-A compliant
- -40 to 75 C wide temp
- Compact DIN-rail design
Certifications
EDS-2008-EL is an 8-port unmanaged switch with metal housing and optional fiber. DIP switch for QoS/BSP. PROFINET CC-A compliant.
- 8 FE + optional fiber
- QoS + BSP DIP switch
- Metal IP40 housing
- PROFINET CC-A
- DIN-rail
- Compact
- 100% burn-in
- -40 to 75 C
Ethernet Interface
| 10/100BaseT(X) | 8 (base); 7 (fiber models) |
|---|---|
| 100BaseFX | M-SC: 1 multi SC; M-ST: 1 multi ST |
| Standards | IEEE 802.3, 802.3u, 802.3x, 802.1p |
Switch Properties
| Type | Store-and-forward |
|---|---|
| MAC Table | 2K |
| Packet Buffer | 768 kb |
DIP Switch
| Functions | QoS enable/disable, Broadcast Storm Protection |
|---|
Power
| Input | 12/24/48 VDC (single) |
|---|
Mechanical
| Housing/IP | Metal / IP40 |
|---|---|
| Mounting | DIN-rail |
Operating Environment
| Temperature | Standard: -10 to 60 C (14 to 140 F); Wide: -40 to 75 C (-40 to 167 F) |
|---|
Warranty
| Period | 5 years |
|---|

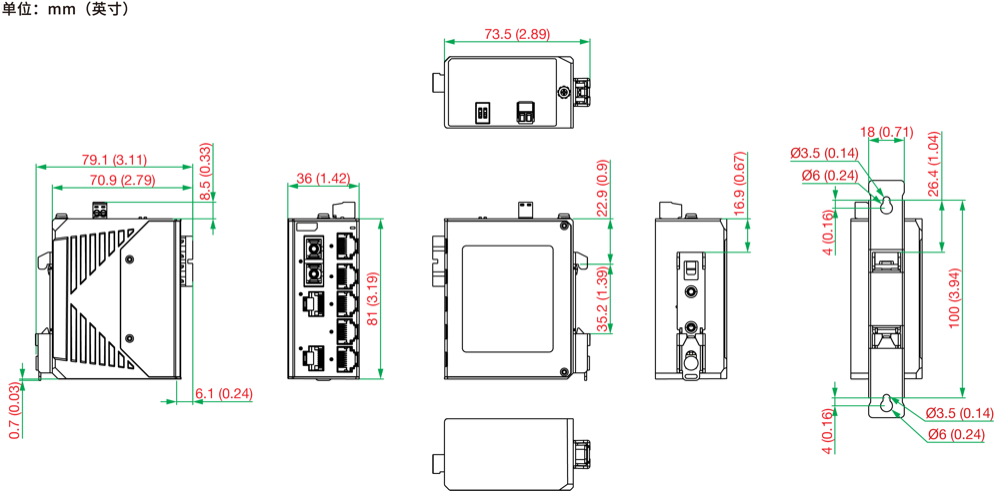

Dimensions
Software, Firmware & Drivers
| File Name | Type | Version | Operating System | Release Date |
|---|---|---|---|---|
| EDS-2008-EL-series-firmware-v4.1.rom | Firmware | v4.1 | โ | 2024-06-26 |
| EDS-2008-EL-series-mib-package-v4.1.zip | Software Package | v4.1 | โ | 2024-06-26 |
| EDS-2008-EL-series-eds-package-v1.0.zip | Software Package | v1.0 | โ | 2024-04-24 |
Support Documents
| File Name | Type | Version | Release Date |
|---|
Related Content
๐
Application Guide
Building future-proof industrial network infrastructure
๐ฅ
Video
Witness the evolution of industrial networking with Moxa
๐
Application Note
Enhance network performance for IP surveillance systems
๐
Solution Brief
Strengthen network resilience for industrial control systems
Ordering
| Model | 10/100BaseT(X) | 100BaseFX | Temp |
|---|---|---|---|
| EDS-2008-EL | 8 | -- | -10 to 60 C |
| EDS-2008-EL-T | 8 | -- | -40 to 75 C |
| EDS-2008-EL-M-SC | 7 | 1 multi SC | -40 to 75 C |
| EDS-2008-EL-M-ST | 7 | 1 multi ST | -40 to 75 C |
