EDS-2005-EL Series

5-Port Entry-Level Unmanaged Ethernet Switch with Metal Housing

Features & Benefits

5 x 10/100BaseT(X) RJ45
QoS + Broadcast Storm Protection (DIP switch)
Metal housing IP40
PROFINET CC-A compliant
-40 to 75 C wide temp
Compact DIN-rail design

Certifications

EDS-2005-EL is a 5-port unmanaged switch with metal housing. DIP switch for QoS/BSP. PROFINET CC-A compliant. Compact DIN-rail design, 100% burn-in tested.

5 x 10/100BaseT(X)
QoS + BSP DIP switch
Metal IP40 housing
PROFINET CC-A

DIN-rail
Compact design
100% burn-in
-40 to 75 C

Ethernet Interface

Ports	5 x 10/100BaseT(X) (RJ45)
Standards	IEEE 802.3, 802.3u, 802.3x, 802.1p

Switch Properties

Type	Store-and-forward
MAC Table	2K
Packet Buffer	768 kb

DIP Switch

Functions	QoS enable/disable, Broadcast Storm Protection

Power

Input	12/24/48 VDC (single)
Current	0.039 A @ 24 VDC

Mechanical

Housing/IP	Metal / IP40
Mounting	DIN-rail

Operating Environment

Temperature	Standard: -10 to 60 C (14 to 140 F); Wide: -40 to 75 C (-40 to 167 F)

Warranty

Period	5 years

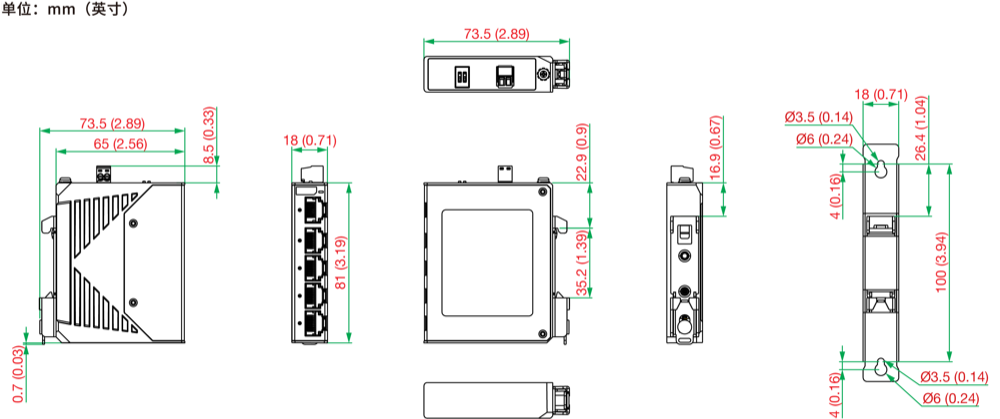

Dimensions

Software, Firmware & Drivers

File Name	Type	Version	Operating System	Release Date
EDS-2005-EL-series-firmware-v4.1.rom	Firmware	v4.1	—	2024-06-26
EDS-2005-EL-series-mib-package-v4.1.zip	Software Package	v4.1	—	2024-06-26
EDS-2005-EL-series-eds-package-v1.0.zip	Software Package	v1.0	—	2024-04-24

Support Documents

File Name	Type	Version	Release Date

Ordering

Model	Ports	Temp
EDS-2005-EL	5	-10 to 60 C
EDS-2005-EL-T	5	-40 to 75 C
