EDS-108 Series
8-Port Entry-Level Unmanaged Ethernet Switch
Features & Benefits
- 8 10/100BaseT(X) RJ45 ports, optional 100BaseFX fiber
- Broadcast storm protection
- DIN-rail mountable
- -10 to 60 C operating temperature
Certifications
EDS-108 is an entry-level 8-port industrial Ethernet switch with optional fiber models (M-SC). Supports IEEE 802.3/802.3u/802.3x. Store-and-forward switching. IP30 metal housing.
- 8 x 10/100BaseT(X) ports
- Optional 100BaseFX fiber
- Broadcast storm protection
- Store-and-forward
- DIN-rail mountable
- IP30 metal housing
- LED indicators
- -10 to 60 C
Ethernet Interface
| Ports | 8 x 10/100BaseT(X) (RJ45); Optional: 100BaseFX (M-SC) |
|---|---|
| Standards | IEEE 802.3, 802.3u, 802.3x |
Fiber Optics
| Multi-mode | 50/125um OM1, 4-5km, 1300nm |
|---|---|
| Single-mode | G.652, 40km, 1310nm |
| TX Power | MM: -10 to -20 dBm; SM: 0 to -5 dBm |
| RX Sensitivity | MM: -3 to -32 dBm; SM: -3 to -34 dBm |
Switch Properties
| Type | Store-and-forward |
|---|---|
| MAC Table | 2K |
| Packet Buffer | 768 kb |
Power
| Input | 12 to 45 VDC |
|---|---|
| Input Current | 0.07 A @ 24 VDC (base); 0.1 A (fiber) |
| Protection | Overload 2.5 A / Reverse polarity |
Mechanical
| Housing/IP | Metal / IP30 |
|---|---|
| Weight | 170 g (0.38 lb) |
| Mounting | DIN-rail |
Operating Environment
| Temperature | -10 to 60 C (14 to 140 F) |
|---|---|
| Storage | -40 to 85 C (-40 to 185 F) |
| Humidity | 5 to 95% |
Warranty
| Period | 5 years |
|---|

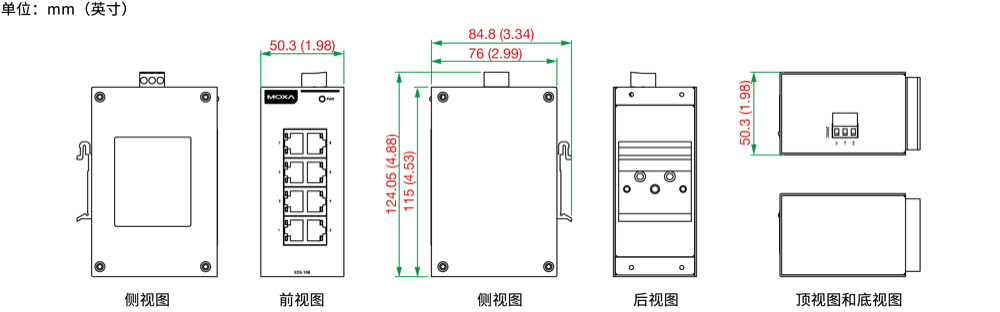

Dimensions
Software, Firmware & Drivers
| File Name | Type | Version | Operating System | Release Date |
|---|---|---|---|---|
| EDS-108-series-firmware-v4.1.rom | Firmware | v4.1 | โ | 2024-06-26 |
| EDS-108-series-mib-package-v4.1.zip | Software Package | v4.1 | โ | 2024-06-26 |
| EDS-108-series-eds-package-v1.0.zip | Software Package | v1.0 | โ | 2024-04-24 |
Support Documents
| File Name | Type | Version | Release Date |
|---|
Related Content
๐
Application Guide
Building future-proof industrial network infrastructure
๐ฅ
Video
Witness the evolution of industrial networking with Moxa
๐
Application Note
Enhance network performance for IP surveillance systems
๐
Solution Brief
Strengthen network resilience for industrial control systems
Ordering
| Model | 10/100BaseT(X) | 100BaseFX | Temp |
|---|---|---|---|
| EDS-108 | 8 | -- | -10 to 60 C |
| EDS-108-M-SC | 7 | 1 (SC multi) | -10 to 60 C |
