EDR-8010 Series
8 FE + 2 GbE SFP Multi-Port Industrial Security Router
Features & Benefits
- Maritime cybersecurity (IACS UR E27, IEC 61162-460)
- IPS/IDS next-gen firewall
- 8 FE + 2 GbE all-in-one: Firewall/NAT/VPN/Router/Switch
- Mxsecurity management
- DPI for industrial protocols
- RSTP/Turbo Ring redundancy
- -40 to 75 C wide temp
Certifications
EDR-8010 Series is a highly integrated industrial multi-port security router with firewall/NAT/VPN and managed Layer 2 switch. Maritime cybersecurity certified (IACS UR E27 Rev.1, IEC 61162-460 Ed.3.0). DPI, IPS/IDS, virtual patching.
- Maritime cybersecurity certified
- IPS/IDS + DPI
- 8 FE + 2 GbE SFP
- Firewall/NAT/VPN/Router/Switch
- Mxsecurity management
- Virtual patching
- RSTP/Turbo Ring
- -40 to 75 C
Ethernet Interface
| Ports | 8 x 10/100BaseT(X) (RJ45) + 2 x GbE SFP slots |
|---|
Security Features
| Firewall | Stateful inspection, policy rules |
|---|---|
| IPS/IDS | Next-gen with pattern-based detection |
| DPI | Deep packet inspection for industrial protocols |
| VPN | Secure tunneling |
| NAT | Network address translation |
| Virtual Patching | Shield known/unknown vulnerabilities |
Software
| Platform | MX-ROS |
|---|---|
| Management | Mxsecurity, Web, CLI |
| Redundancy | RSTP, Turbo Ring |
Power
| Input | 12 to 48 VDC (dual redundant) |
|---|---|
| Consumption | 15 W (max) |
Mechanical
| Housing/IP | Metal / IP30 |
|---|---|
| Weight | 800 g (1.76 lb) |
Operating Environment
| Temperature | Standard: 0 to 60 C (32 to 140 F); Wide: -40 to 75 C (-40 to 167 F) |
|---|---|
| Storage | -40 to 85 C |
| Humidity | 5 to 95% |
Warranty
| Period | 5 years |
|---|

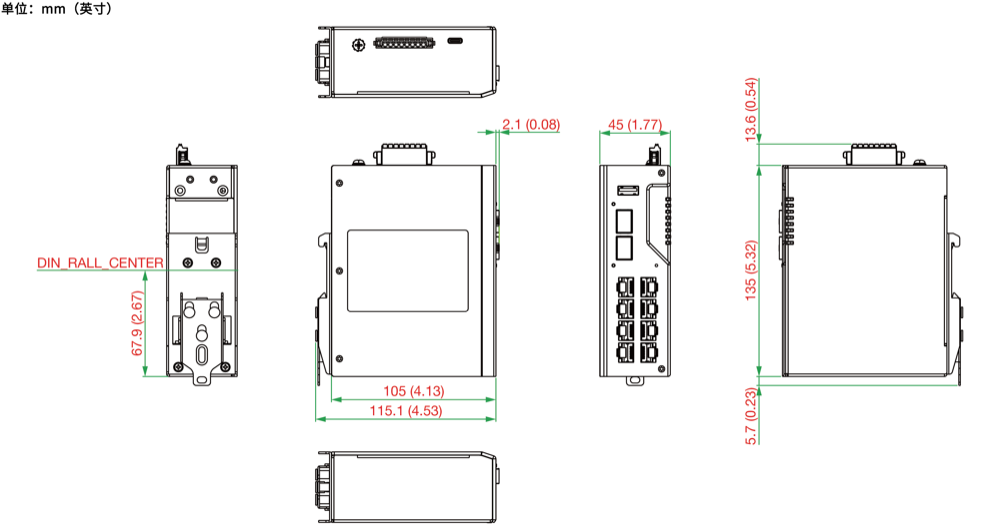

Dimensions
Software, Firmware & Drivers
| File Name | Type | Version | Operating System | Release Date |
|---|---|---|---|---|
| EDR-8010-series-firmware-v4.1.rom | Firmware | v4.1 | โ | 2024-06-26 |
| EDR-8010-series-mib-package-v4.1.zip | Software Package | v4.1 | โ | 2024-06-26 |
| EDR-8010-series-eds-package-v1.0.zip | Software Package | v1.0 | โ | 2024-04-24 |
Support Documents
| File Name | Type | Version | Release Date |
|---|
Related Content
๐
Application Guide
Building future-proof industrial network infrastructure
๐ฅ
Video
Witness the evolution of industrial networking with Moxa
๐
Application Note
Enhance network performance for IP surveillance systems
๐
Solution Brief
Strengthen network resilience for industrial control systems
Ordering
| Model | FE Ports | GbE SFP | Temp |
|---|---|---|---|
| EDR-8010 | 8 | 2 | 0 to 60 C |
| EDR-8010-T | 8 | 2 | -40 to 75 C |
