CCG-1500 Series
Industrial 5G Cellular Gateway
Features & Benefits
- Qualcomm Snapdragon X55 5G
- Dual SIM slots
- 2 x GE + 1 x RS-232/422/485
- -40 to 70 C wide temp
- Modbus TCP/RTU conversion
- FCC/UL/NCC/JET/Telec certified
Certifications
CCG-1500 Series is a 5G cellular gateway and protocol converter based on Qualcomm Snapdragon X55. Supports 5G-to-Ethernet and 5G-to-serial. Modbus TCP/RTU conversion. Wide temp -40 to 70 C.
- 5G NR R15
- Qualcomm X55 Cortex-A7
- Dual SIM Nano
- 2 GE + 1 RS-232/422/485
- Modbus TCP/RTU
- -40 to 70 C
- Compact design
- FCC/UL certified
Cellular Interface
| Standard | 5G R15 |
|---|---|
| SIM | 2 x Nano SIM |
| Antenna Connectors | CCG-1510: 6 x SMA (incl. GPS); CCG-1520: 4 x SMA |
Ethernet Interface
| Ports | 2 x 10/100/1000BaseT(X) (RJ45), 1.5 kV isolation |
|---|
Serial Interface
| Ports | 1 x RS-232/422/485 (5-pin terminal block) |
|---|---|
| Baud Rate | 9600 to 115200 bps |
Power
| Input | 9 to 36 VDC |
|---|---|
| Consumption | 8 W (max) |
Mechanical
| Housing | Metal |
|---|---|
| Weight | 350 g (0.77 lb) |
Operating Environment
| Temperature | -40 to 70 C (-40 to 158 F) |
|---|---|
| Storage | -40 to 85 C |
| Humidity | 5 to 95% |
Warranty
| Period | 5 years |
|---|

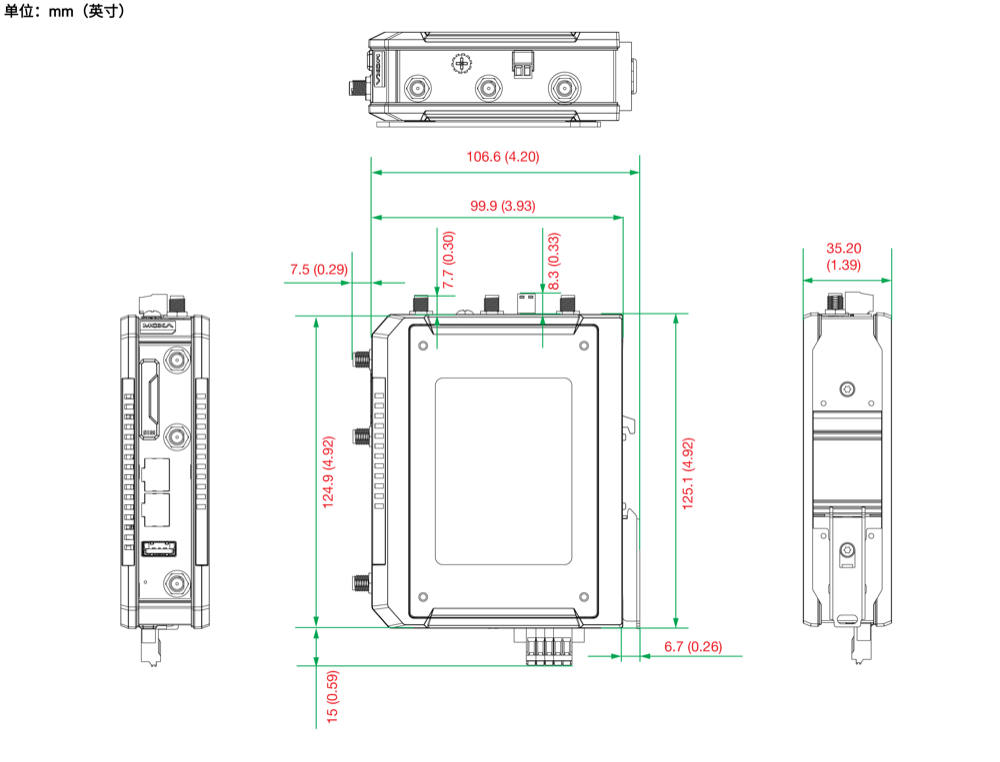

Dimensions
Software, Firmware & Drivers
| File Name | Type | Version | Operating System | Release Date |
|---|---|---|---|---|
| CCG-1500-series-firmware-v4.1.rom | Firmware | v4.1 | โ | 2024-06-26 |
| CCG-1500-series-mib-package-v4.1.zip | Software Package | v4.1 | โ | 2024-06-26 |
| CCG-1500-series-eds-package-v1.0.zip | Software Package | v1.0 | โ | 2024-04-24 |
Support Documents
| File Name | Type | Version | Release Date |
|---|
Related Content
๐
Application Guide
Building future-proof industrial network infrastructure
๐ฅ
Video
Witness the evolution of industrial networking with Moxa
๐
Application Note
Enhance network performance for IP surveillance systems
๐
Solution Brief
Strengthen network resilience for industrial control systems
Ordering
| Model | 5G Bands | GPS | Temp |
|---|---|---|---|
| CCG-1510-TW-T | N1/N3/N28/N41/N78 | Yes | -40 to 70 C |
| CCG-1510-US-T | N48 | Yes | -40 to 70 C |
| CCG-1510-T | N1/N3/N28/N41/N48/N77/N78 | Yes | -40 to 70 C |
| CCG-1520-T | N79 | No | -40 to 70 C |
