AWK-4262A Series
IEEE 802.11ax Wi-Fi 6 Outdoor Industrial AP/Bridge/Client
Features & Benefits
- Wi-Fi 6 802.11ax
- Concurrent dual-band 1.775 Gbps
- IP68 outdoor
- OFDMA + WPA3
- UN model configurable country code
- Turbo Roaming
- -40 to 75 C
Certifications
AWK-4262A IP68 outdoor AP/bridge/client with Wi-Fi 6 (802.11ax), 1.775 Gbps concurrent dual-band. OFDMA, WPA3, Turbo Roaming. UN model.
- Wi-Fi 6, 1.775 Gbps
- Concurrent dual-band
- IP68 outdoor
- OFDMA + WPA3
- Turbo Roaming
- UN configurable
- Band-pass filters
- -40 to 75 C
WLAN Interface
| Standards | 2.4 GHz: 802.11ax (1024 QAM); 5 GHz: 802.11ax (1024 QAM) |
|---|---|
| Aggregate | 1.775 Gbps |
| Modes | AP, Bridge, Client |
| Security | WEP, WPA/WPA2/WPA3 |
Ethernet
| Ports | 2 x 10/100/1000BaseT(X) (RJ45), PoE PD |
|---|
Power
| Input | 12 to 48 VDC redundant, PoE PD |
|---|---|
| Consumption | 15 W |
Mechanical
| Housing/IP | Metal / IP68 |
|---|---|
| Weight | 1,200 g (2.65 lb) |
Operating Environment
| Temperature | -40 to 75 C (-40 to 167 F) |
|---|---|
| Storage | -40 to 85 C |
| Humidity | 5 to 95% |
Warranty
| Period | 5 years |
|---|

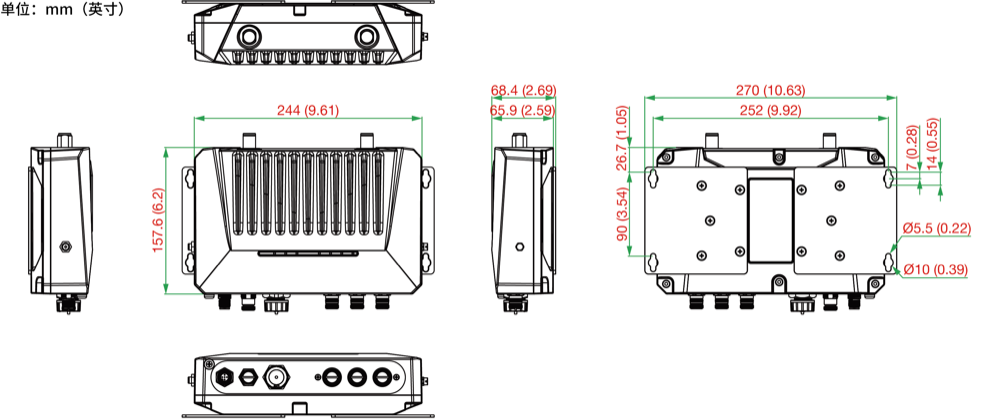

Dimensions
Software, Firmware & Drivers
| File Name | Type | Version | Operating System | Release Date |
|---|---|---|---|---|
| AWK-4262A-series-firmware-v4.1.rom | Firmware | v4.1 | โ | 2024-06-26 |
| AWK-4262A-series-mib-package-v4.1.zip | Software Package | v4.1 | โ | 2024-06-26 |
| AWK-4262A-series-eds-package-v1.0.zip | Software Package | v1.0 | โ | 2024-04-24 |
Support Documents
| File Name | Type | Version | Release Date |
|---|
Related Content
๐
Application Guide
Building future-proof industrial network infrastructure
๐ฅ
Video
Witness the evolution of industrial networking with Moxa
๐
Application Note
Enhance network performance for IP surveillance systems
๐
Solution Brief
Strengthen network resilience for industrial control systems
Ordering
| Model | Band | Standard | Temp |
|---|---|---|---|
| AWK-4262A-US | US | 802.11ax | -40 to 75 C |
| AWK-4262A-UN | UN | 802.11ax | -40 to 75 C |
