AWK-4252A Series
IEEE 802.11a/b/g/n/ac Outdoor Industrial Wireless AP/Bridge/Client
Features & Benefits
- 802.11ac Wave 2 AP/bridge/client
- Concurrent dual-band 1.267 Gbps
- IP68 outdoor waterproof
- WPA3 encryption
- UN model configurable country code
- NAT + Turbo Roaming
- 30 kV ESD / 6 kV surge protection
- -40 to 75 C
Certifications
AWK-4252A IP68 outdoor AP/bridge/client with 802.11ac Wave 2, aggregate 1.267 Gbps. WPA3, NAT, Turbo Roaming. 30 kV ESD / 6 kV surge protection. UN model.
- 802.11ac Wave 2, 1.267 Gbps
- Concurrent dual-band
- IP68 outdoor
- WPA3 + NAT
- Turbo Roaming
- 30 kV ESD / 6 kV surge
- UN configurable
- -40 to 75 C
WLAN Interface
| Standards | 2.4 GHz: 802.11b/g/n (256 QAM); 5 GHz: 802.11a/n/ac Wave 2 |
|---|---|
| Aggregate Rate | 1.267 Gbps |
| Modes | AP, Bridge, Client (concurrent) |
| Security | WEP 64/128, WPA/WPA2/WPA3 |
Ethernet
| Ports | 2 x 10/100/1000BaseT(X) (RJ45), PoE PD |
|---|
Power
| Input | 12 to 48 VDC redundant, PoE PD |
|---|---|
| Consumption | 15 W |
Mechanical
| Housing/IP | Metal / IP68 |
|---|---|
| Weight | 1,200 g (2.65 lb) |
Operating Environment
| Temperature | Standard: 0 to 60 C (32 to 140 F); Wide: -40 to 75 C (-40 to 167 F) |
|---|---|
| Storage | -40 to 85 C |
| Humidity | 5 to 95% |
Warranty
| Period | 5 years |
|---|

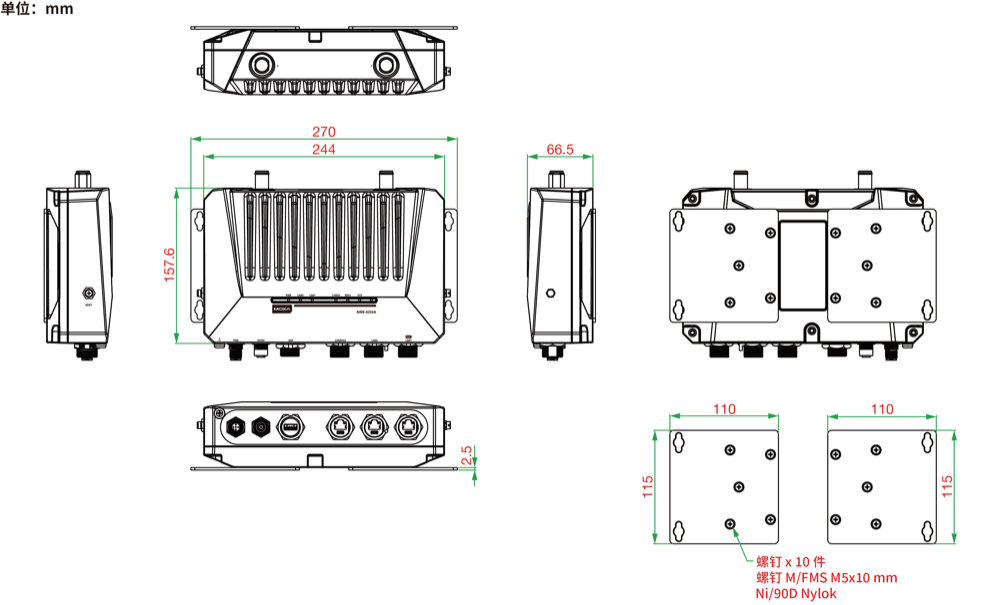

Dimensions
Software, Firmware & Drivers
| File Name | Type | Version | Operating System | Release Date |
|---|---|---|---|---|
| AWK-4252A-series-firmware-v4.1.rom | Firmware | v4.1 | โ | 2024-06-26 |
| AWK-4252A-series-mib-package-v4.1.zip | Software Package | v4.1 | โ | 2024-06-26 |
| AWK-4252A-series-eds-package-v1.0.zip | Software Package | v1.0 | โ | 2024-04-24 |
Support Documents
| File Name | Type | Version | Release Date |
|---|
Related Content
๐
Application Guide
Building future-proof industrial network infrastructure
๐ฅ
Video
Witness the evolution of industrial networking with Moxa
๐
Application Note
Enhance network performance for IP surveillance systems
๐
Solution Brief
Strengthen network resilience for industrial control systems
Ordering
| Model | Band | Standard | Temp |
|---|---|---|---|
| AWK-4252A-US | US | 802.11ac Wave 2 | 0 to 60 C |
| AWK-4252A-US-T | US | 802.11ac Wave 2 | -40 to 75 C |
| AWK-4252A-UN | UN | 802.11ac Wave 2 | 0 to 60 C |
| AWK-4252A-UN-T | UN | 802.11ac Wave 2 | -40 to 75 C |
